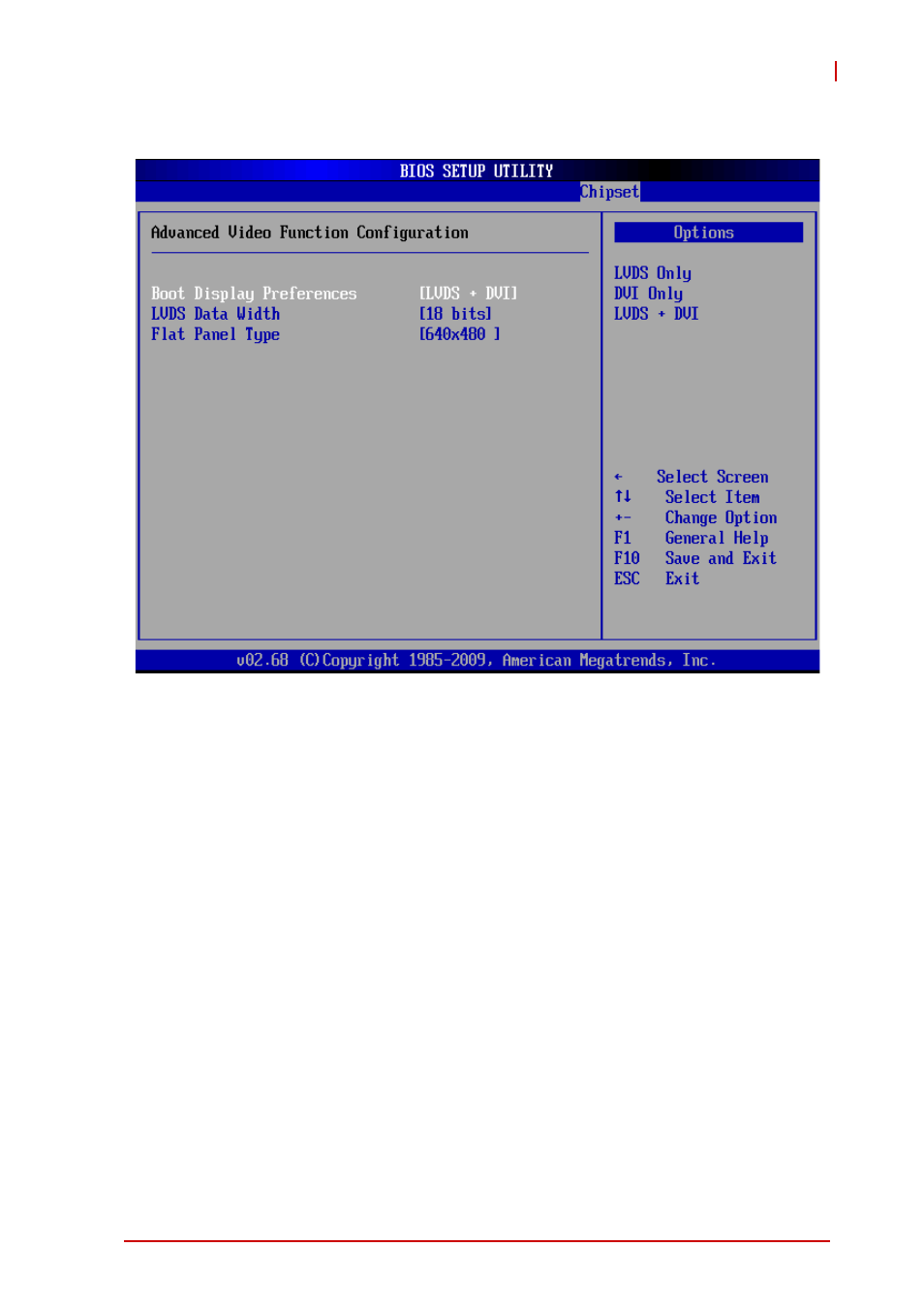

Advanced Video Function Configuration

Boot Display Preferences

This item allows the user to configure the LVDS/DVI displays
used. Options: LVDS Only (default), DVI Only, LVDS + DVI.

LVDS Data Width

Select the LVDS Data Width used by the Chrontel encoder
graphics device (18 bits, 24 bits).

Flat Panel Type (DVI Settings)

When DVI is enabled in Boot Display Preferences, this option
allows you to select resolution settings for the DVI interface.
The supported resolutions are: 640x480, 1024x768, 1280x600,
1366x1024, 1280x720 Overscan, 1280x720 Underscan,
1920x1080 Overscan, 1920x1080 Underscan.
