Table 2-1: ReadyBoard 740 Board Layout Legend

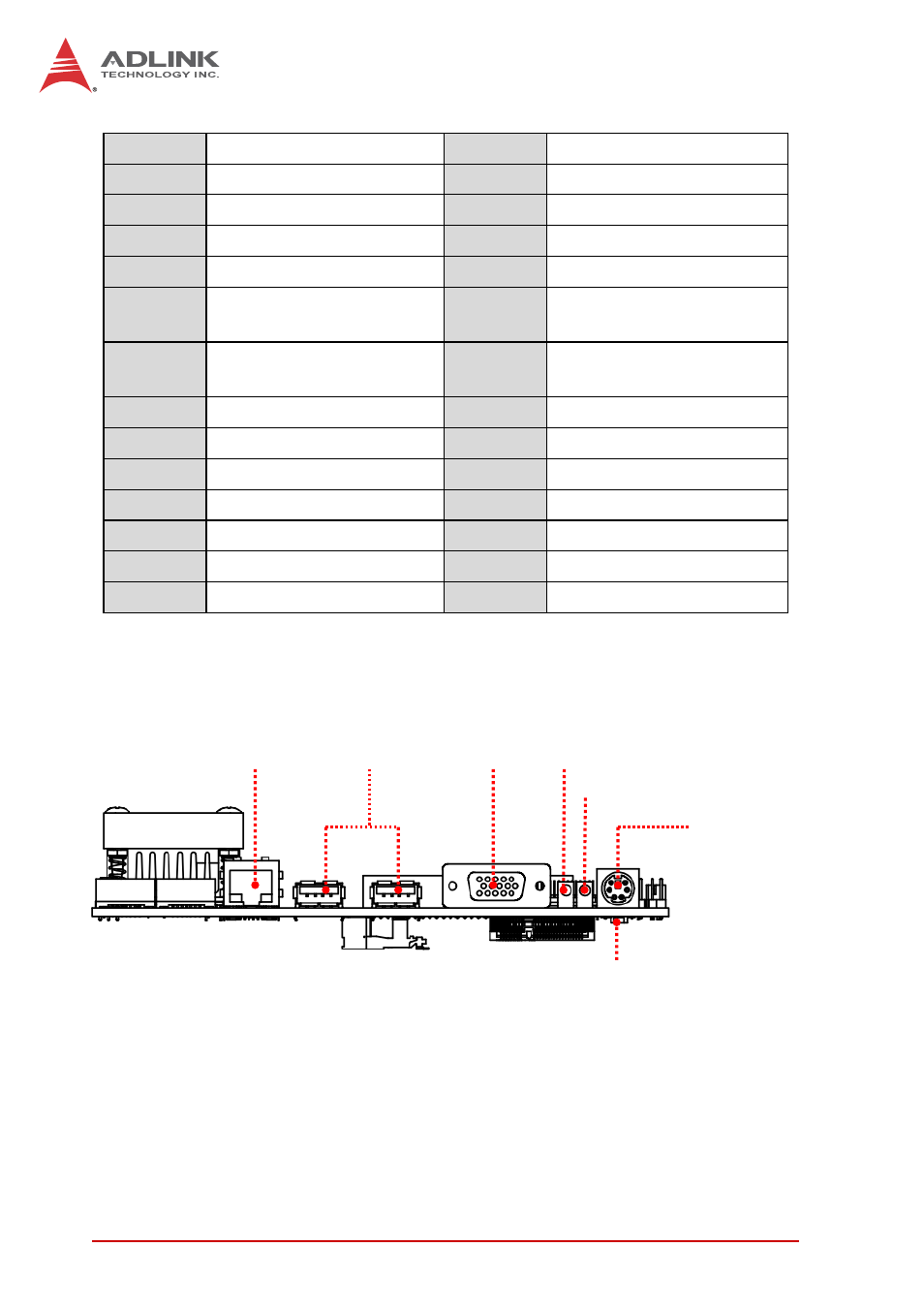

Figure 2-2: ReadyBoard 740 Rear I/O Layout
CN1 ATX Power connector CNY1 LVDS connector
CN2 12V Power connector FN1 Fan connector (12V)
CN3 PCI-104 connector FN2 Fan connector (5V)
CN4 Audio connector JP1 Suspend Mode jumper
CN6 COM3 pin header JP2-3 Reserved
CN7 COM4 pin header JP4
COM2 RS-485
termination jumper
CN8 COM2 pin header JP5
COM1 RS-485
termination jumper
CN9 COM1 pin header JP6 Panel Power jumper
CN10 Battery connector JP7 SMB_DAT pin header
CN11 Reserved JP8 SMB_CLK pin header
CN12/17 USB pin header JP9 Buzzer pin header
CN13 DVI connector JP10 Power Button pin header
CN14 GPIO pin header SW1 Clear CMOS button
CN15/16 SATA connector
LAN USB 1/2 VGA
PS/2 KB/MS
Power LED
HDD LED
Reset
