Introduction

7

RB-740

1.7

Mechanical Drawing

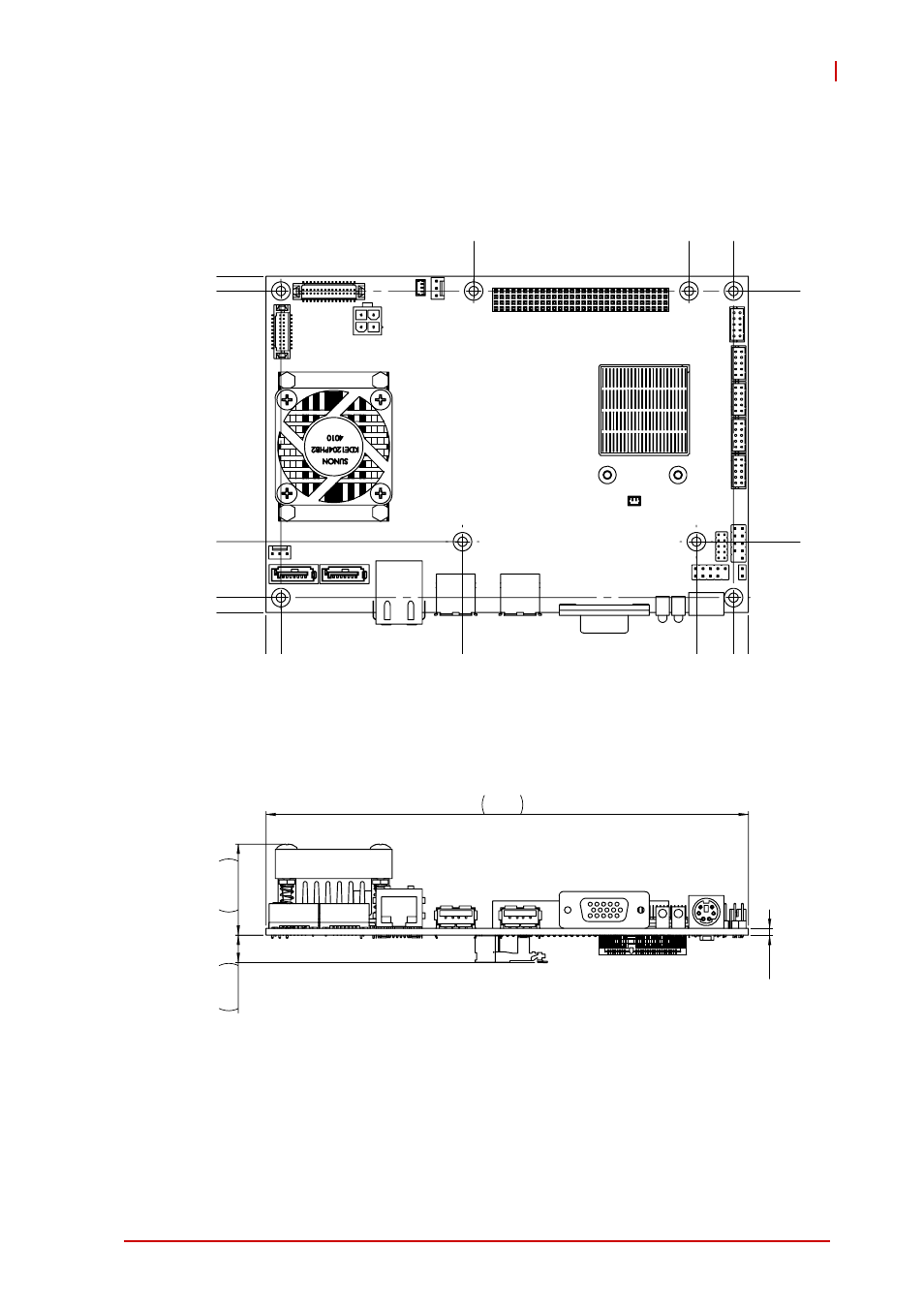

Figure 1-2: ReadyBoard 740 Dimensions

0

0

5.08

62.13

142.14

154.84 159.92

5.08

24.21

109.93

115.01

65.94

139.6

104.85

19.13

154.84

Top View

Front View

9.35

165

31.15

2.36

Dimensions in mm
