12 Hardware Information

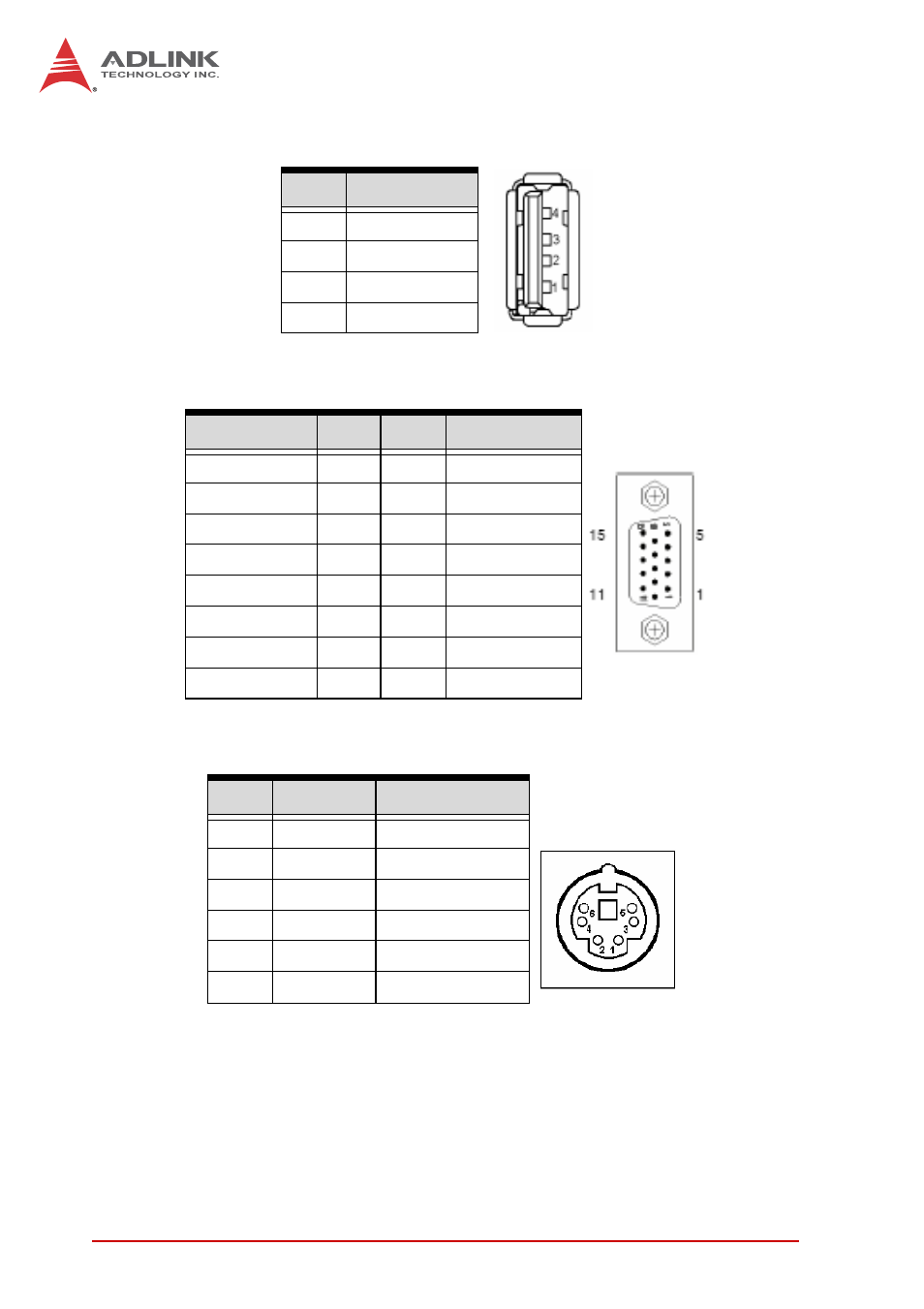

USB Connectors
VGA Connector.
PS/2 Keyboard/Mouse Port
Pin # Signal Name
1 Vcc
2 USB-
3 USB+
4 GND
Signal Name Pin # Pin # Signal Name
RED 1 9 P5V_VGA1
GREEN 2 10 GROUND
BLUE 3 11 VGA_P11
P5V_VGA2 4 12 DDCDAT
GROUND 5 13 HSYNC
GROUND 6 14 VSYNC
GROUND 7 15 DDCCLK
GROUND 8
Pin # Signal Function
1 KBDAT Keyboard Data
2 MSDAT Mouse Data
3 GND Ground
4 VCC5 Power
5 KBCLK Keyboard Clock
6 MSCLK Mouse Clock
