16 Hardware Information

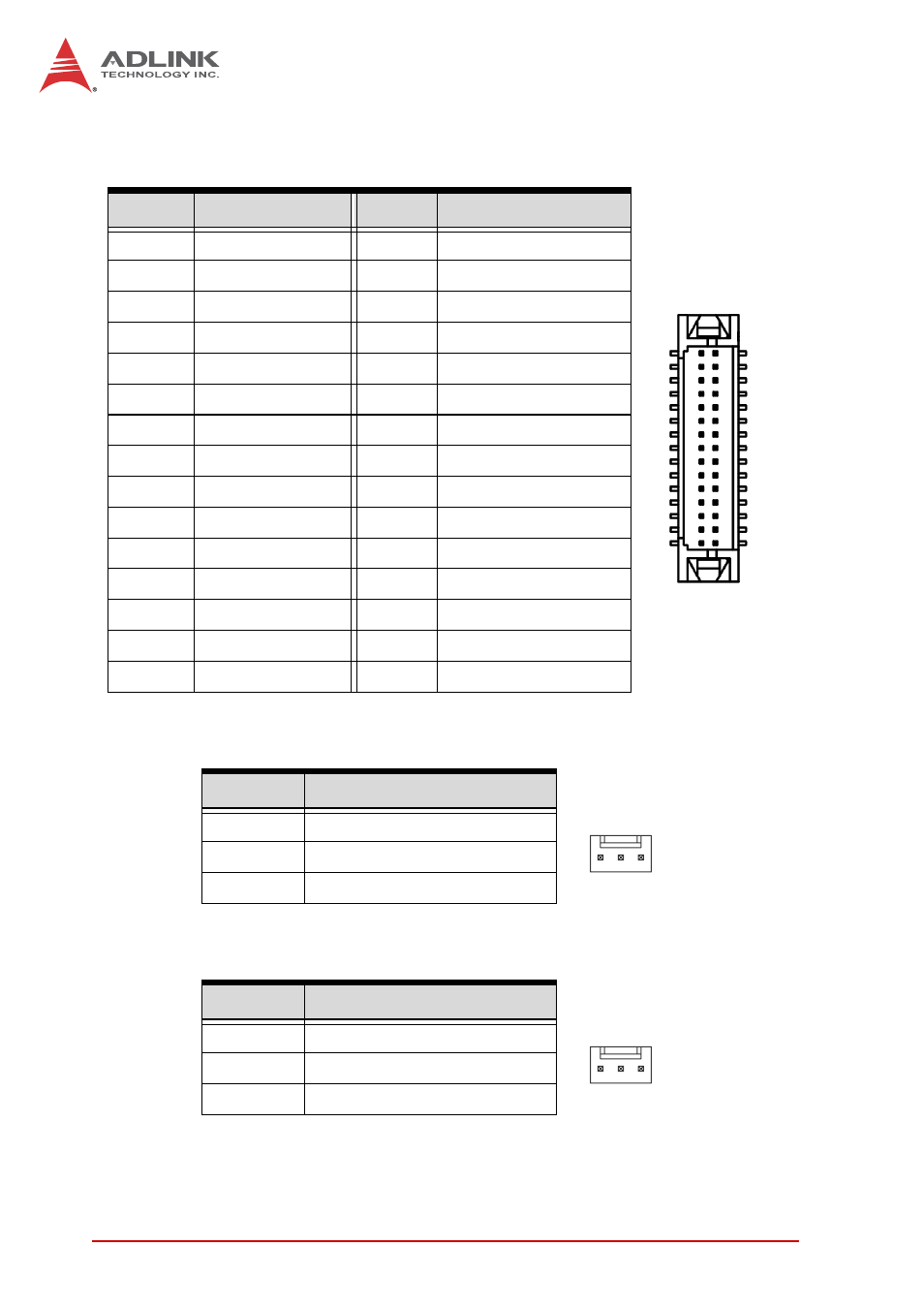

LVDS Connector (CNY1)
Hirose, DF13-30DP
5V Fan Connector (FN1)
12V Fan Connector (FN2)
Pin # Signal Pin # Signal
1 GND 2 VDD_PANEL
3 LCD_18_24_P0 4 VDD_PANEL
5 LCD_18_24_N0 6 GND
7 GND 8 LCD_18_24_P1
9 LCD_18_24_P2 10 LCD_18_24_N1
11 LCD_18_24_N2 12 GND
13 GND 14 LCD_18_24_P3
15 LCD_BLON 16 LCD_18_24_N3
17 GND 18 GND
19 GND 20 GND
21 LCD_BLCTL 22 LCD_18_24_CLK-P
23 NC 24 LCD_18_24_CLK-N
25 NC 26 GND
27 NC 28 NC
29 NC 30 P12V
Pin # Signal
1 Fan Speed Detect
2 Fan Power (+5V)
3 GND
Pin # Signal
1 Fan Speed Detect
2 Fan Power (+12V)
3 GND
2 1
3 1
3 1
