Hardware Information 15
RB-740

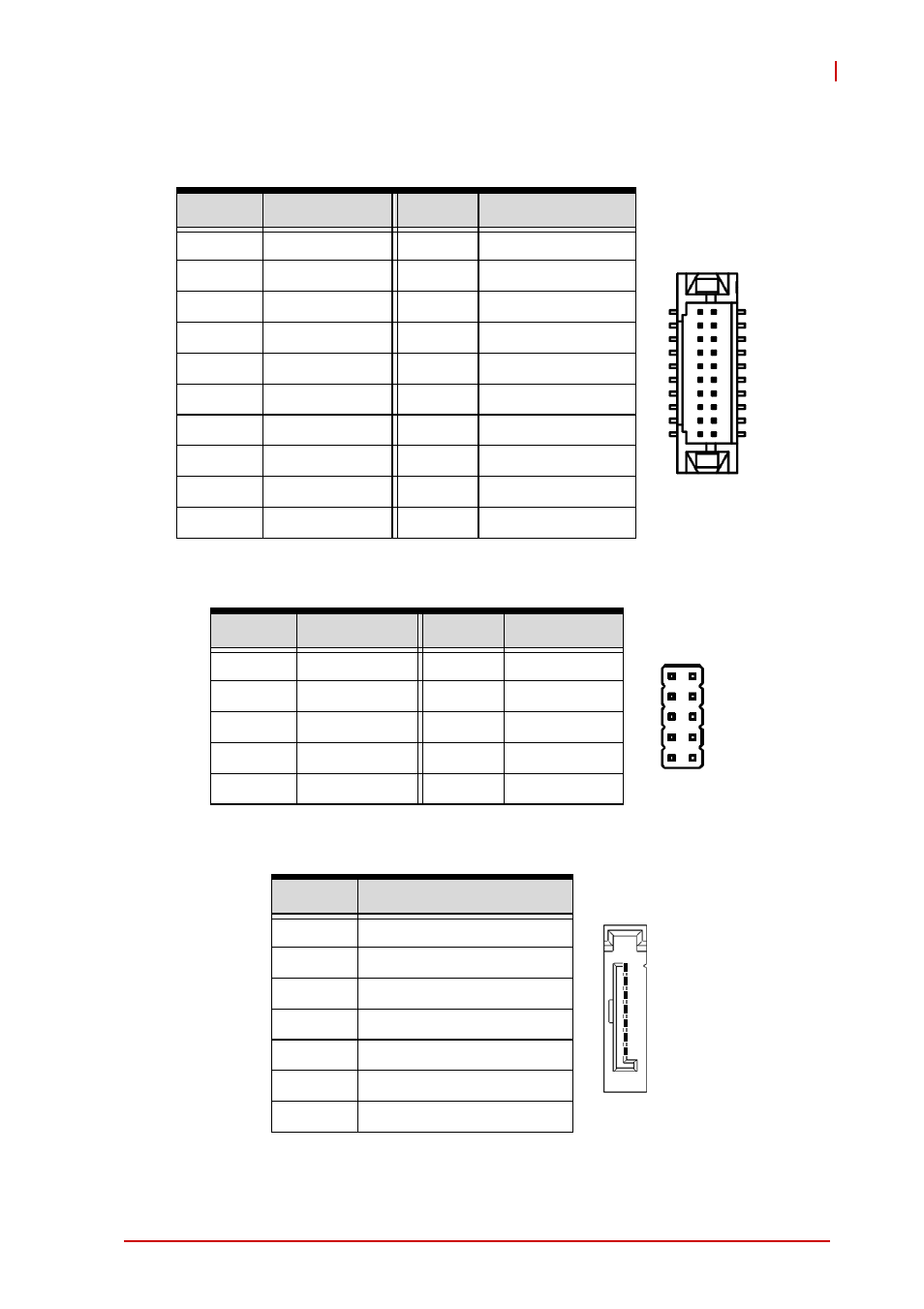

DVI Connector (CN13)
Hirose, DF13-20DP
GPIO Pin Header (CN14)
SATA Connectors (CN15/16)
Pin # Signal Pin # Signal
1 GND 2 NC
3 TMDS_N0 4 VDD_PANEL
5 TMDS_P0 6 GND
7 GND 8 TMDS_P1
9 TMDS_P2 10 TMDS_N1
11 TMDS_N2 12 GND
13 GND 14 TMDS_CLK_P
15 DDC_SC 16 TMDS_CLK_N
17 DDC_SD 18 GND
19 DVI_HPDET 20 GND
Pin # Signal Pin # Signal
1 GPI0 2 GPO0
3 GPI1 4 GPO1
5 GPI2 6 GPO2
7 GPI3 8 GPO3
9 NC 10 NC
Pin # Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
2 1
1 2
1
7
1
