Introduction

1.6

Block Diagram

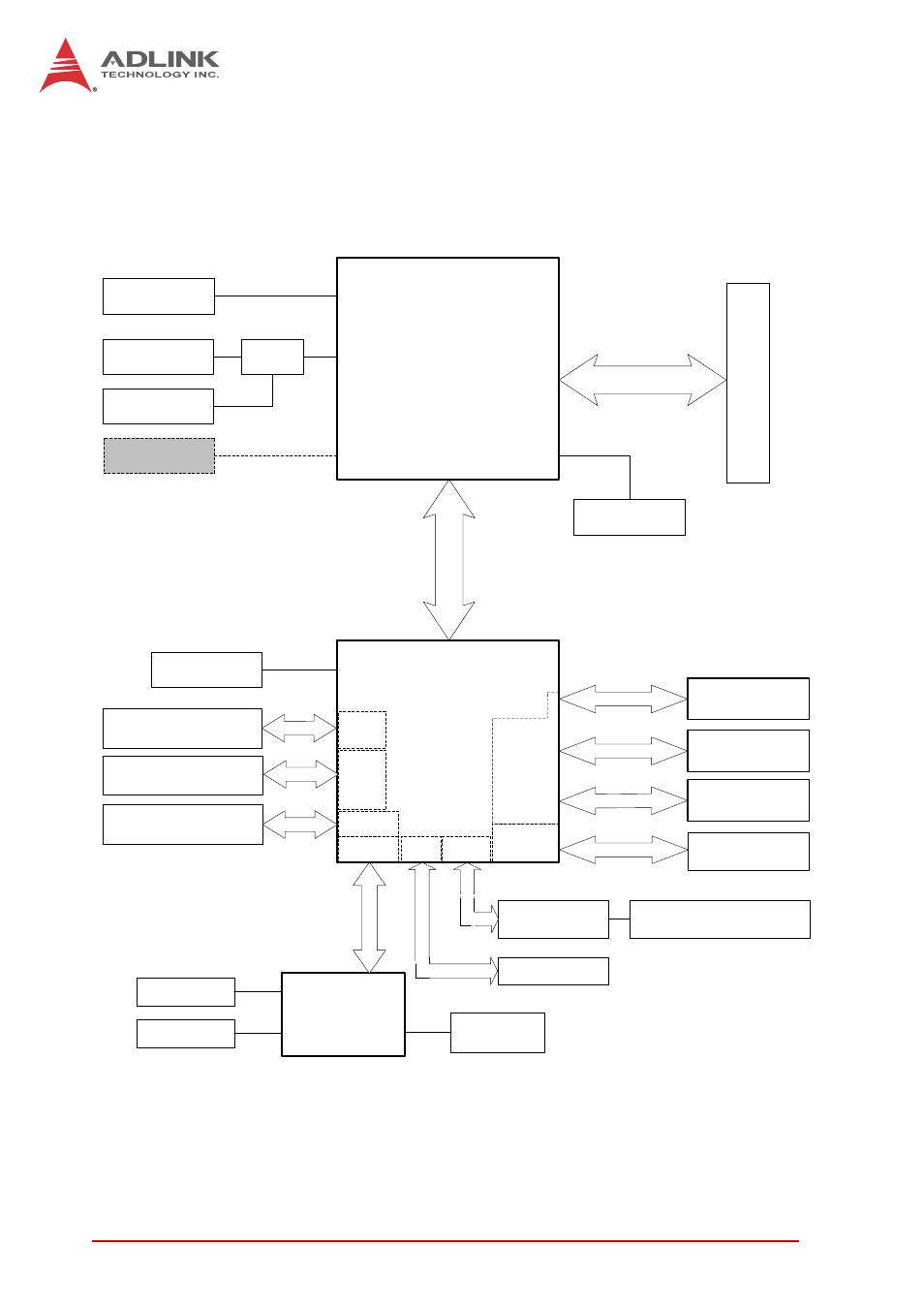

Figure 1-1: ReadyBoard 740 Block Diagram

Intel

ICH8-M

CPU

Intel

Atom™

N450/D410/D510

DMI

Interface

LPC

USB 2.0

SPI BIOS

KB/Mouse

COM1~4

VGA

DB-15

Super I/O

SCH3114

6x USB 2.0

PCIe x1

PCIe

Controller

PCIe x1

PCI Bus

PCI-104

SATA

2x SATA ports

4GB Onboard SSD

Realtek

ALC262

HDA

Voltage

Monitor

PCI

Controller

Intel® 82574L

RJ-45

SPI

Single Channel

24-bit LVDS

Audio

Line-in/Mic-in/Speaker-out

PCIe Mini Card

(PCIe x1, USB)

SO-DIMM u

to
2G

DDR 667/800 MHz

CH7036

DVI

PCIe x1

BCM70015

HW Video decoder

Temp. Monitor

ADT7481ARMZ

Single Channel

18-bit LVDS

(optional w/o CH7036)

SMBus

PATA
