Hardware Information

13

M-342

2

Hardware Information

2.1

Rear I/O Connectors

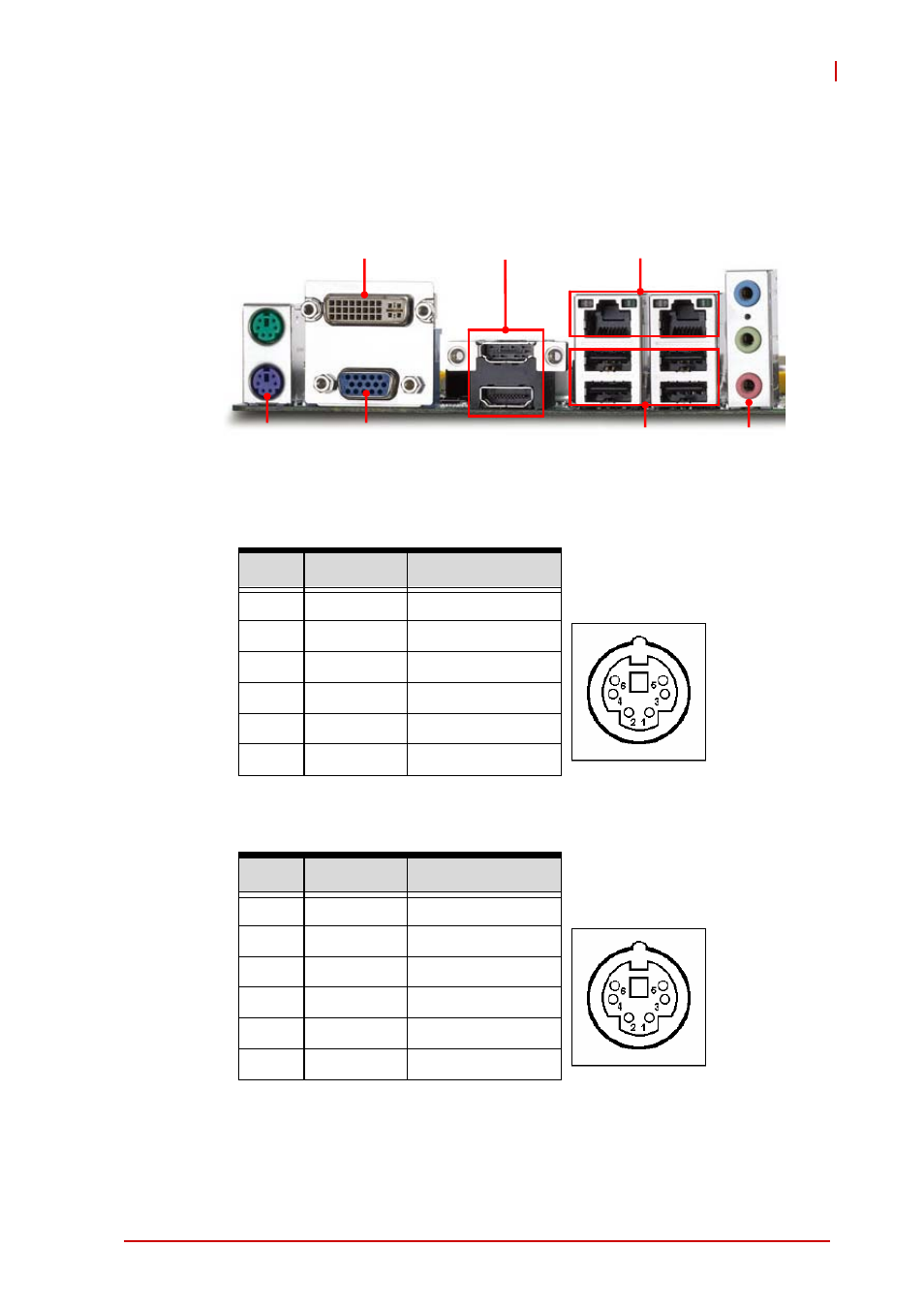

Figure 2-1: M-342 Rear I/O Layout

PS/2 Mouse Port (green)

PS/2 Keyboard Port (purple)

Pin #

Signal

Function

1

MSDATA

Mouse Data

2

NC

not connected

3

GND

Ground

4

+5V

Power

5

CLK

Clock

6

NC

not connected

Pin #

Signal

Function

1

KBDATA

Keyboard Data

2

NC

not connected

3

GND

Ground

4

+5V

Power

5

CLK

Clock

6

NC

not connected

ʳ

KB/MS

DVI-D

VGA

HDMI

LAN

USB

Audio
