Introduction

5

M-342

1.4

Block Diagram

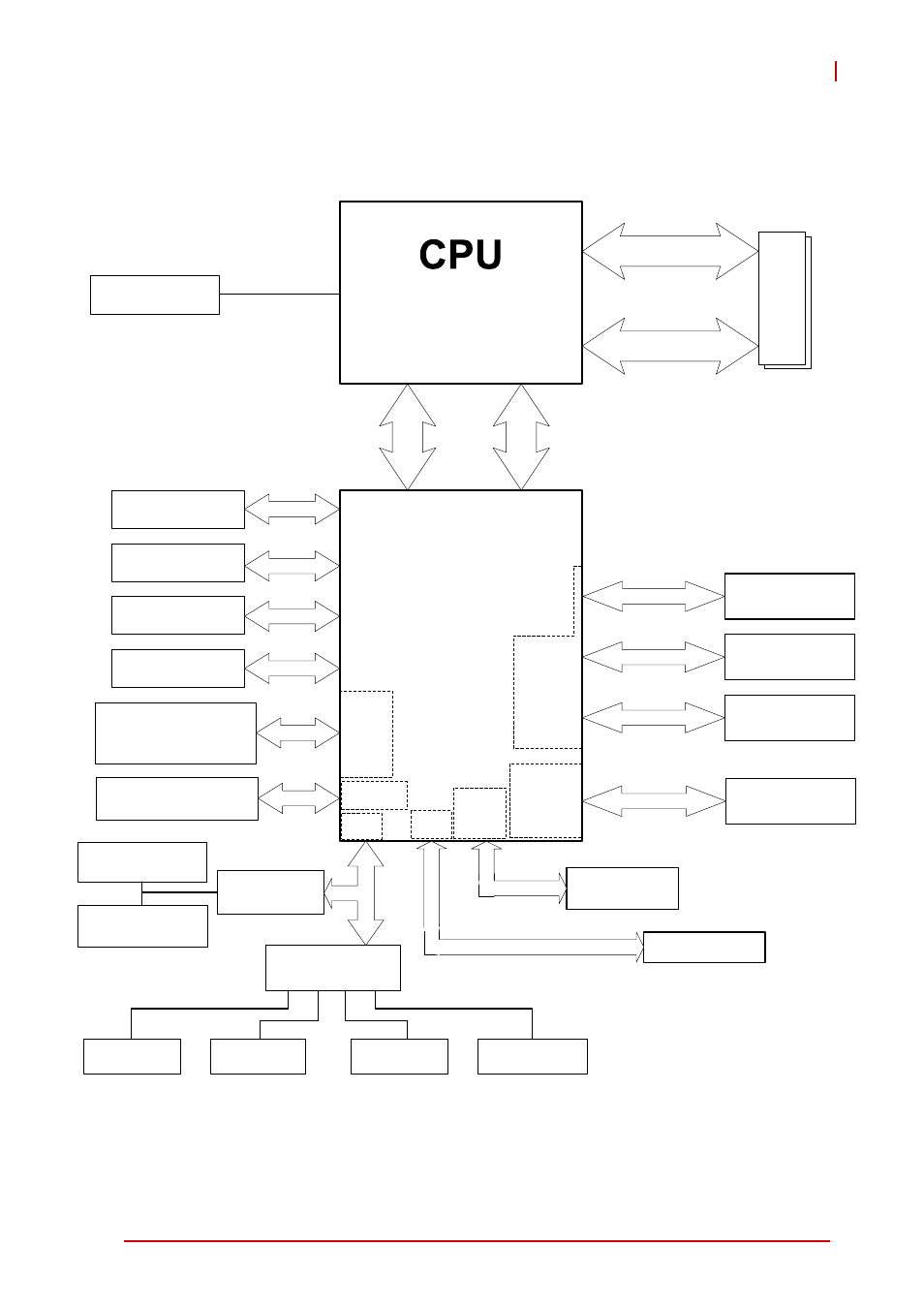

Figure 1-1: M-342 Block Diagram

Intel® Q67 PCH

Core™ i7/i5/i3

quad/dual cores

32nm process

LGA1155 package

DMI

LPC

USB 2.0

SPI BIOS

Parallel Port

RS-232 x3

(COM3-5)

RS-232/422/485(+)

(COM6)

PCIe x16

Gen2, 5GT/s

Super I/O

NCT6776F

USB 2.0

(4x rear, 8x internal)

DDR Channel A

DDR Channel B

DDR3 1066/1333 MHz

PCIe x1

PCIe

Controller

PCIe x4

SATA

SATA

(2x 6 Gb/s, 4x 3 Gb/s)

DIMM X4

Audio

ALC892

HD

Codec

Intel 82579LM

RJ-45 (LAN1)

LPC to UART

F81216DG

SPI

FDI

PCIe x16

PCIe x1

PCIe x4 slot

VGA

HDMI

HDMI

DVI

5x PCI slot

DDPC

DDPC

Hardware

Monitor

DDPC

PCI

Controller

Intel 82574L

RJ-45 (LAN2)

PCI Bus

KB/MS

RS-232 x2

(COM1-2)
