Board Interfaces 29
cPCI-6615

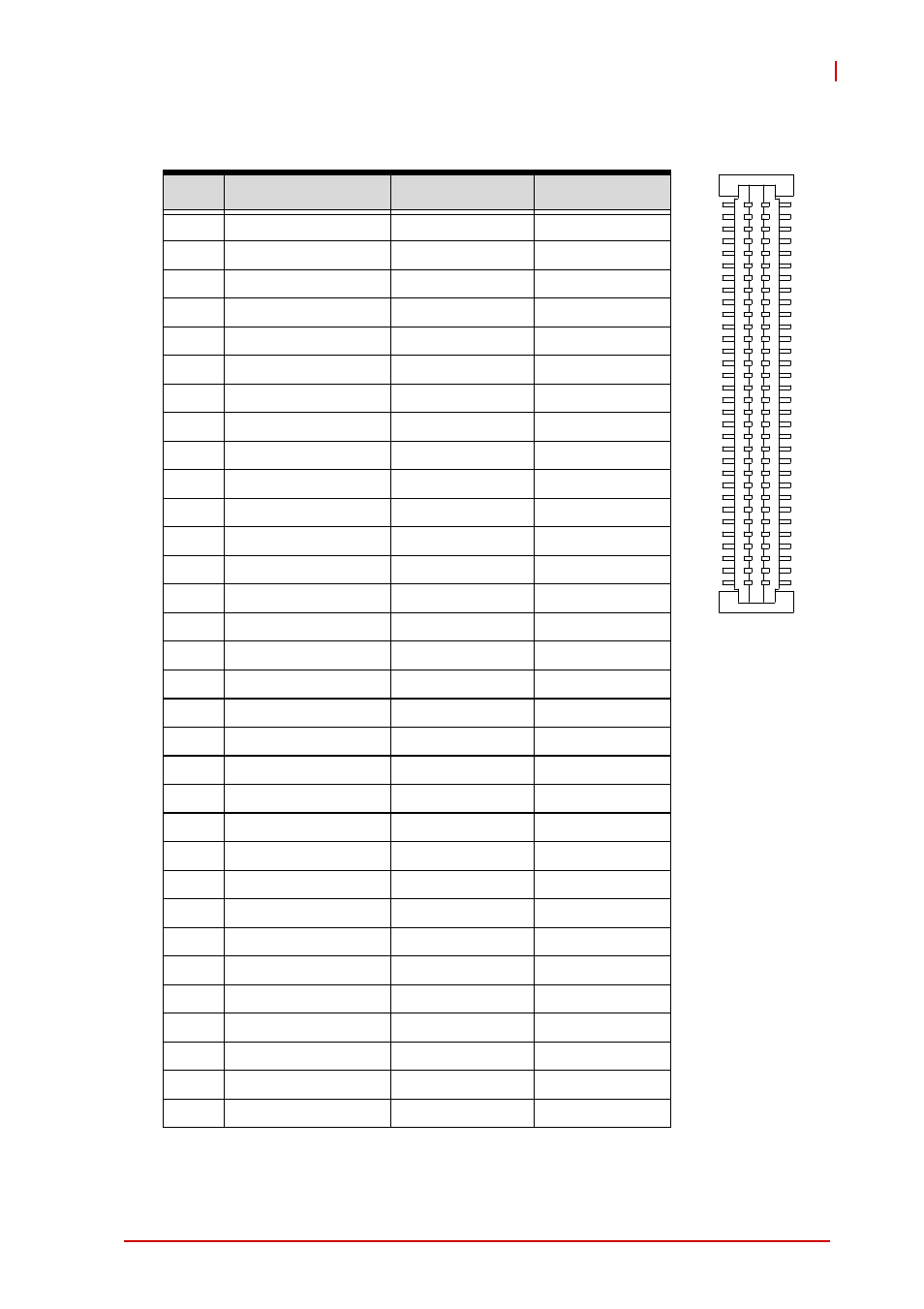

PMC Connector (JN1, JN2, JN3)
Table 4-16: PMC Connector Pin Definitions
Pin# JN1 Signal JN2 Signal JN3 Signal
1 PMC_TCK P12V NC
2 N12V PMC_TRST-L GND
3 GND PMC_TMS GND
4 PCIX_INTA-L NC (PMC_TDO) PCIX_CBE-L7
5 PCIX_INTB-L PMC_TDI PCIX_CBE-L6
6 PCIX_INTC-L GND PCIX_CBE-L5
7 PMC_MOD-L1 GND PCIX_CBE-L4
8 P5V NC GND
9 PCIX_INTD-L NC PMC_VIO
10 NC NC PCIX_PAR64
11 GND PMC_MOD-L2 PCIX_AD63
12 P3V3_PMCAUX P3V3 PCIX_AD62
13 CLK66_PCIX_PMC PMC_RST-L PCIX_AD61
14 GND PMC_MOD-L3 GND
15 GND P3V3 GND
16 PCIX_GNT-L0 PMC_MOD-L4 PCIX_AD60
17 PCIX_REQ-L0 PMC_PME-L PCIX_AD59
18 P5V GND PCIX_AD58
19 PMC_VIO PCIX_AD30 PCIX_AD57
20 PCIX_AD31 PCIX_AD29 GND
21 PCIX_AD28 GND GND
22 PCIX_AD27 PCIX_AD26 PCIX_AD56
23 PCIX_AD25 PCIX_AD24 PCIX_AD55
24 GND PCIX_AD23 PCIX_AD54
25 GND PMC_IDSEL PCIX_AD53
26 PCIX_CBE-L3 PCIX_AD23 GND
27 PCIX_AD22 P3V3 GND
28 PCIX_AD21 PCIX_AD20 PCIX_AD52
29 PCIX_AD19 PCIX_AD18 PCIX_AD51
30 P5V GND PCIX_AD50
31 PCIX_FRAME-L PCIX_AD16 PCIX_AD49
32 PCIX_AD17 PCIX_CBE-L2 GND
1 2
63 64
