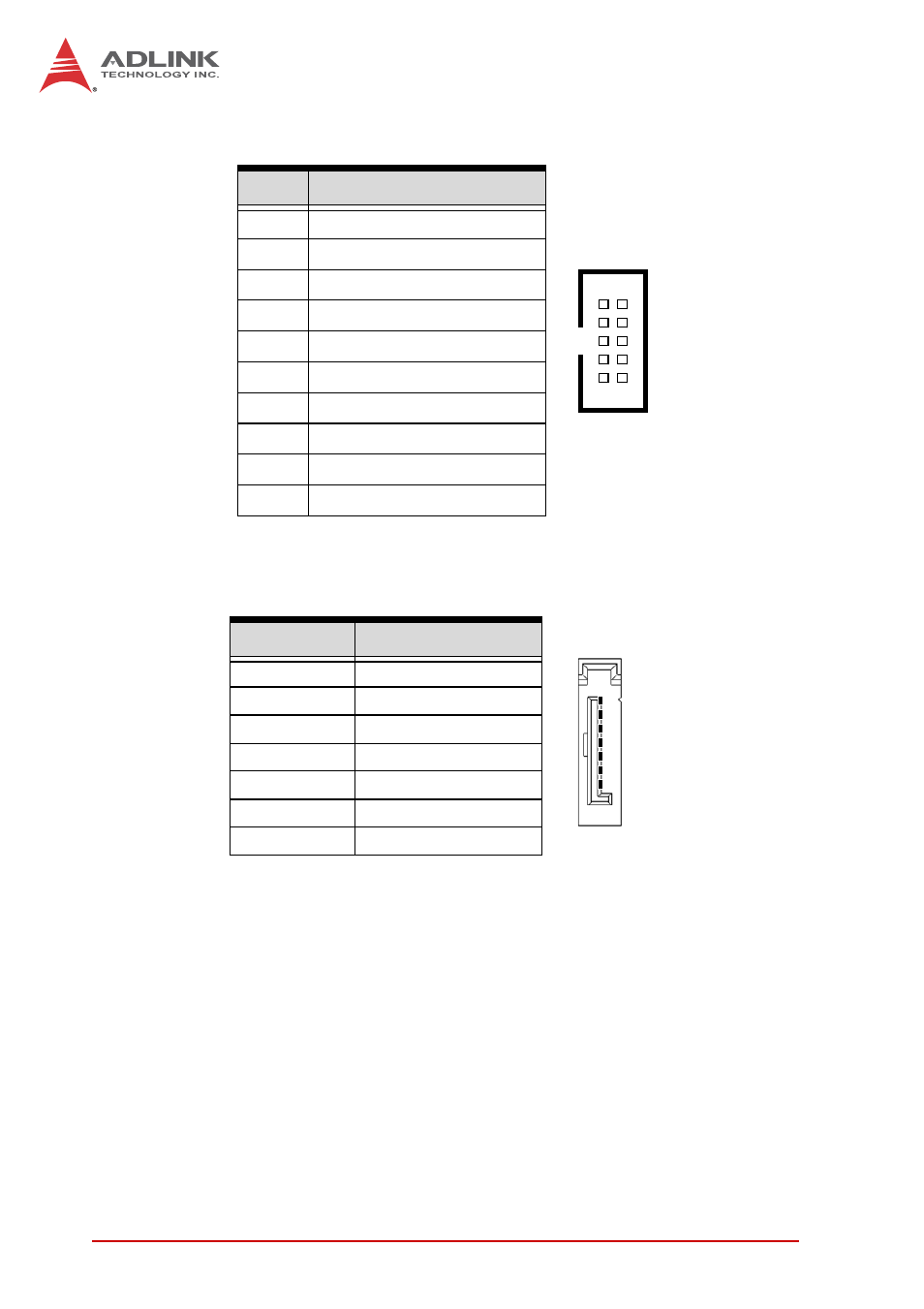

Board Interfaces

COM2 Onboard Serial Port Connector

Table 4-12: COM2 Onboard Box Header Definition

Serial ATA Connectors (CN5)

Table 4-13: SATA Connector Pin Definition

Pin #

RS-232

1

DCD-L

2

DSR-L

3

RXD

4

RTS-L

5

TXD

6

CTS-L

7

DTR-L

8

RI-L

9

GND

10

NC

Pin #

Signal

1

GND

2

TX+

3

TX-

4

GND

5

RX-

6

RX+

7

GND

1

2

9

10

1

7
