BIOS Setup

cPCI-6520

8.4

Chipset Setup

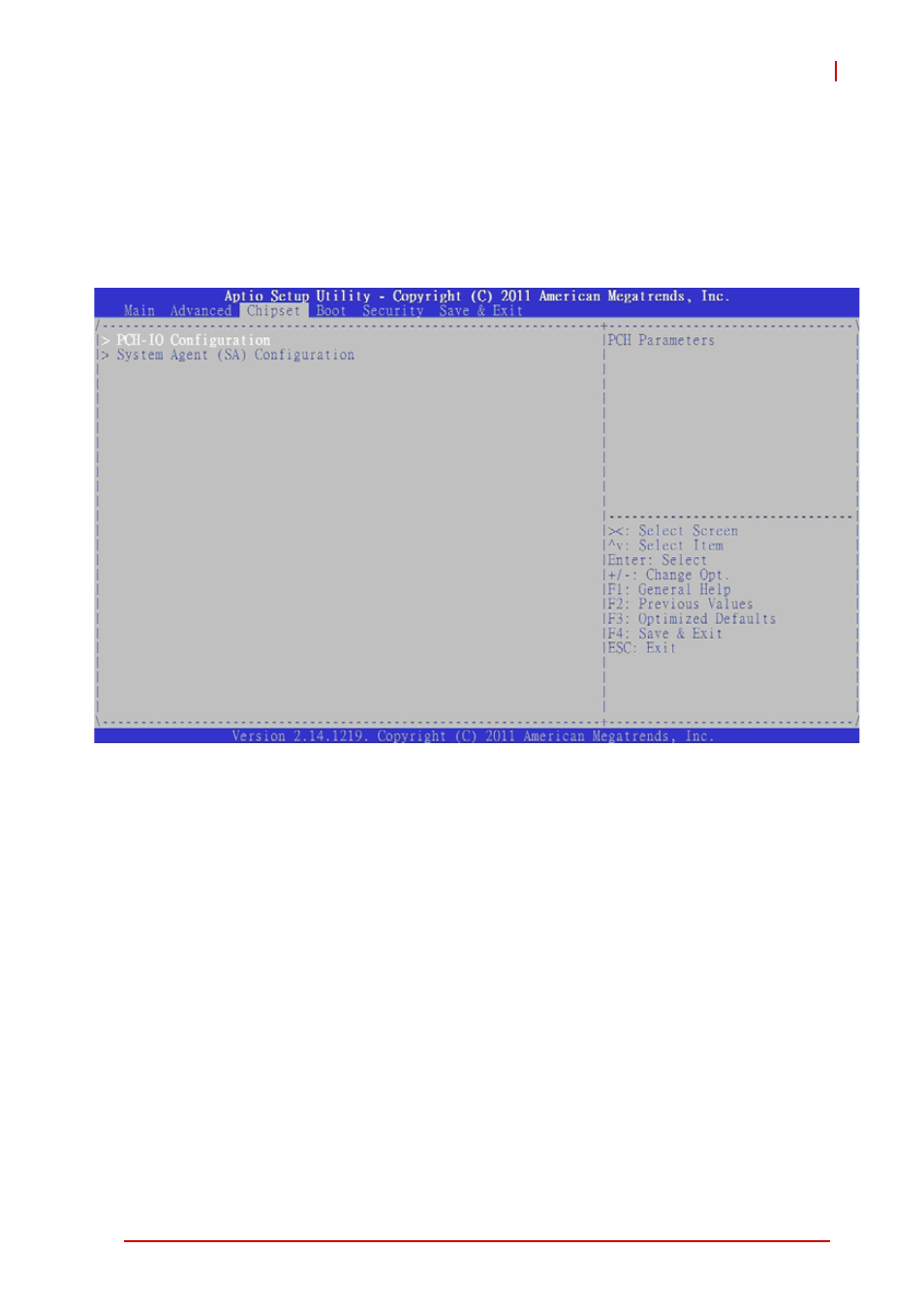

Select the Chipset tab from the setup screen to enter the Chipset
BIOS Setup screen. You can select any of Chipset BIOS Setup
options by highlighting it using the < Arrow > keys. The Chipset
BIOS Setup screen is shown below.

8.4.1

PCH-IO Configuration

PCH LAN Controller

Enable or disable onchip NIC. Set this value to Enabled/Dis-
abled

HD Audio

Enable or disable the onboard HDA controller. Set this value to
Enabled/Disabled.
