16

Installation

2.7 Daughter Board Connection

The ACL-8111 can be connected with five different daughter boards ACLD-
9137, 9182, 9185, and 9188. The functionality and connections are specified
as following:

2.7.1 Connect

with

ACLD-9137

The ACLD-9137 is a direct connector for the card, which is equipped with 37-
pin D-sub connector. This board provides a simple way for connection. It is
very suitable for the simple applications that do not need complex signal
condition before the A/D conversion is performed.

2.7.2 Connect

with

ACLD-9182

The ACLD-9182 is a 16 channel isolated digital input board. This board is
connected with CN2 of ACL-8111 via 20-pin flat cable. The advantage of this
board is a 500Vdc isolation voltage is provided, and it can protect your PC
system from damage when an abnormal input signal is occurred.

2.7.3 Connect

with

ACLD-9185

The ACLD-9185 is a 16 channel SPDT relay output board. This board is
connected with CN3 of ACL-8111 via 20-pin flat cable. By using this board,
you can control outside device through the digital output signals.

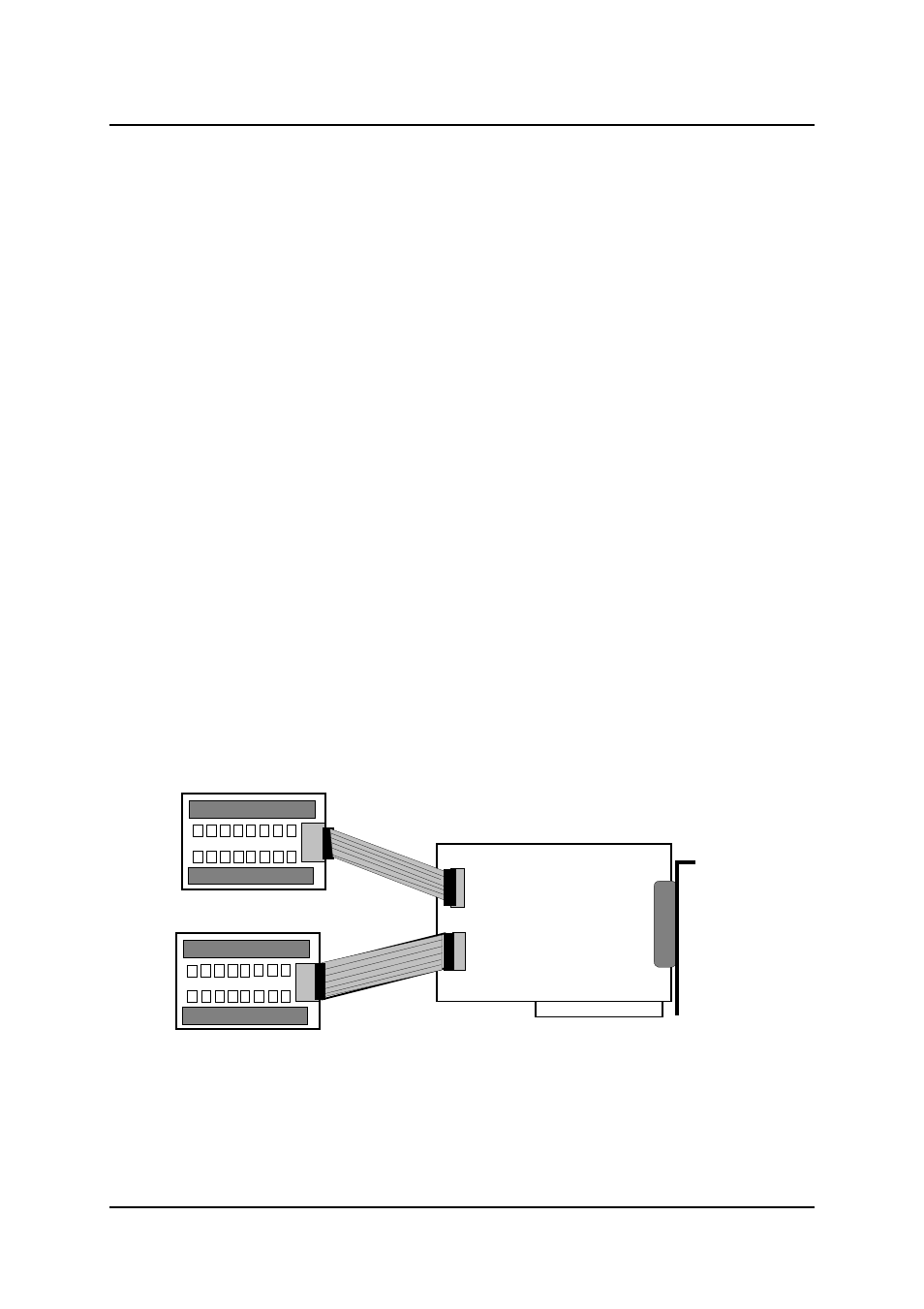

ACLD-9185

ACL-8111

ACLD-9182

CN2

CN3
