2.6 Connectors Pin Assignments
The ACL-8111 has three connectors: one 37-pin D-type connector (CN1) and
two 20-pin insulation displacement connectors (CN2 and CN3).
CN1 is for analog input and analog output signals. CN2 is for digital input
signal. CN3 is for digital output signal. The pin assignments for each
connector are illustrated in the Figure 3.1 ~ Figure 3.3.
CN1: Analog input/output
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
AI0
AI1
AI2
AI3
AI4
AI5
AI6
AI7
--
--
--
--
--
--
DGND
--
--
--
+5V
AGND
AGND
AGND
AGND
AGND
AGND
AGND
AGND
--
--
AO1
--
--
--
--
--
--
-- (20)
(21)
(22)
(23)
(24)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(32)
(33)
(34)
(35)
(36)
(37)

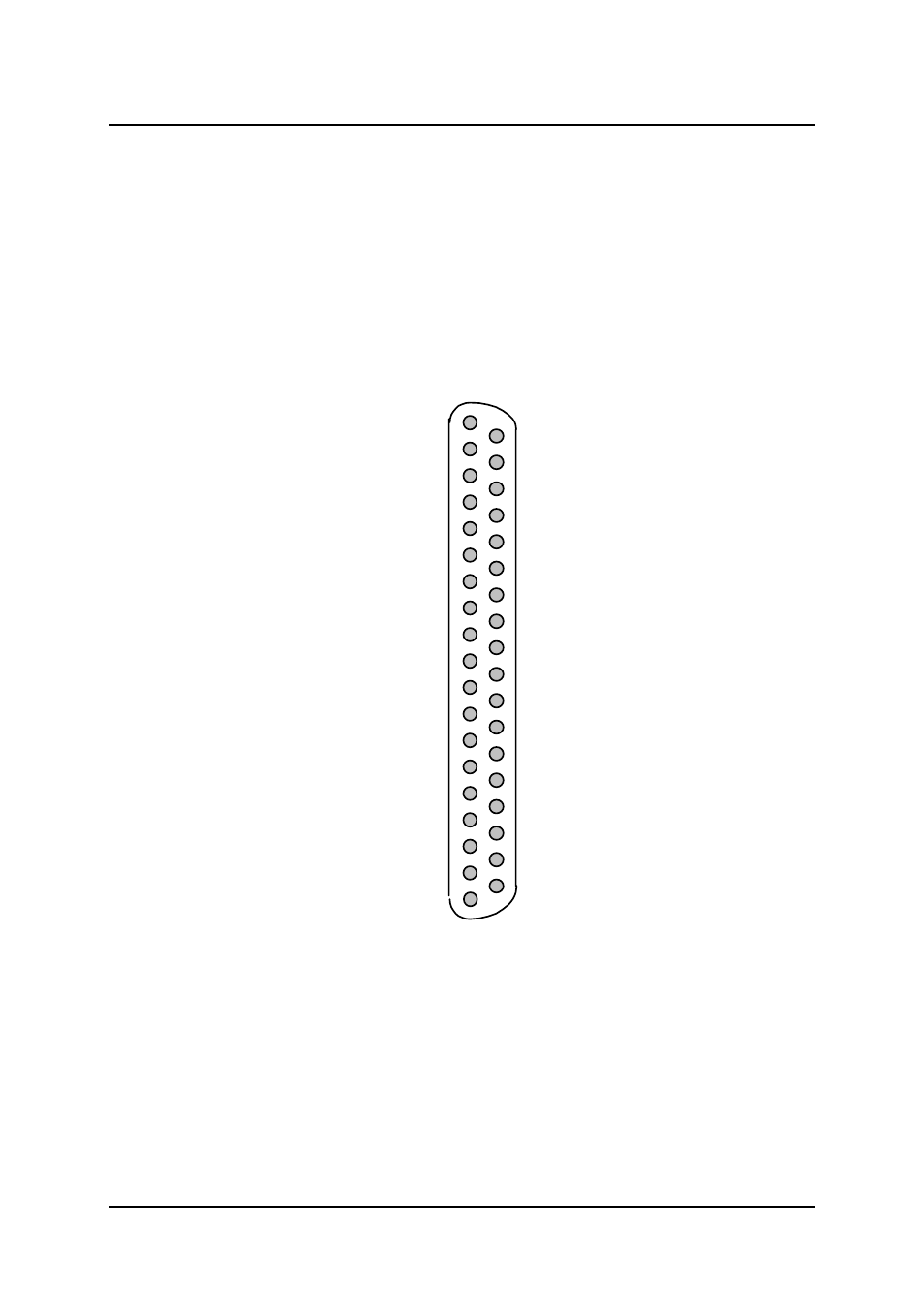

Figure 3.1. Pin Assignment of CN1
Legend:
AIn : Analog Input Channel n (single-ended)
AO : Analog Output Channel
A.GND : Analog Ground
D.GND : Ground
+5V : +5V from system power supply
