If you enable the face detection, once a face appears in the surveillance area, it will be detected and certain
actions may be triggered by the detection.

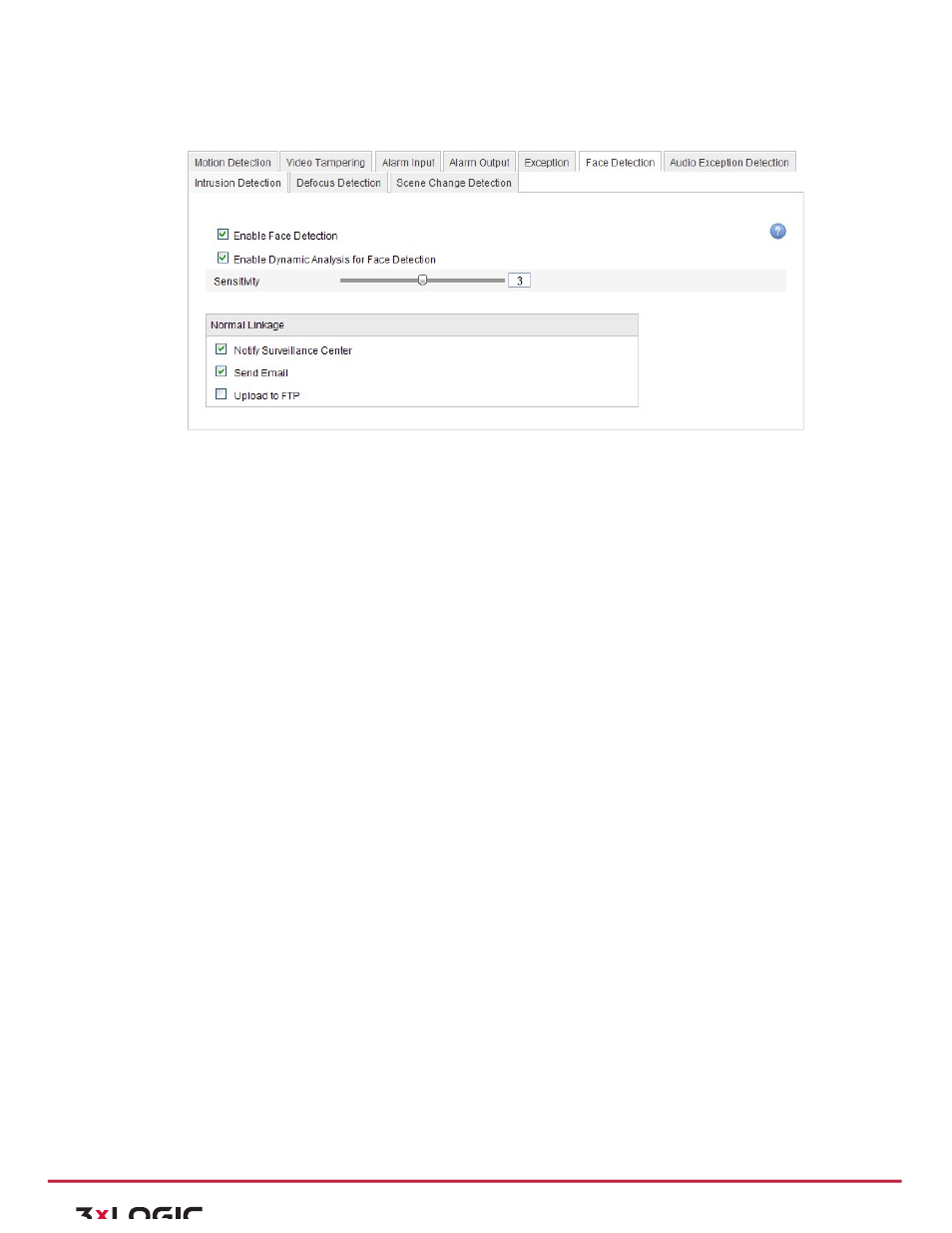

Figure 6-‐44

Face Detection Interface Steps:

1) Enter the face detection settings interface:

Configuration > Advanced Configuration > Events > Face Detection

2) Check the Enable Face Detection to checkbox to enable the function.
3) (Optional)You can check the Enable Dynamic Analysis for Face Detection checkbox if you want the

face detected get marked with rectangle in the live view.

Note:

Select disable the rules from Configuration-‐Local Configuration-‐Live View Parameters-‐Rules

if you don’t want the detected face marked with the green frame.

4) Configure the sensitivity [1~5] of the face detection.
5) (Optional)You can also configure the linkage action for face detection.

Note

The face detection is only supported by a certain series of camera modes. And it doesn’t

support any linkage method.

CONFIGURING AUDIO EXCEPTION DETECTION

Purpose:

Audio exception detection detects the abnormal sounds, such as the silence detection, environment noise
detection, and current noise detection.

Enabling the Sudden Change of Sound Intensity can detects the change of the sound volume and source in the
environment.

Sensitivity: Range [1-‐100], the smaller the value the more severe the change should be to trigger
the detection.

Sound Intensity Threshold: Range [1-‐100], it can filter the sound in the environment, the louder the
environment sound, the higher the value should be. You can adjust it according to the real

environment.

Arming Schedule is configured to set the time you want the function to be enabled.

1) Click Edit to set the arming schedule.
2) Choose to trigger alarm actions as Notify Surveillance Center and Send Email, Upload to FTP and

Trigger Channel or trigger the Alarm Output.

3) Click Save to save the settings.
