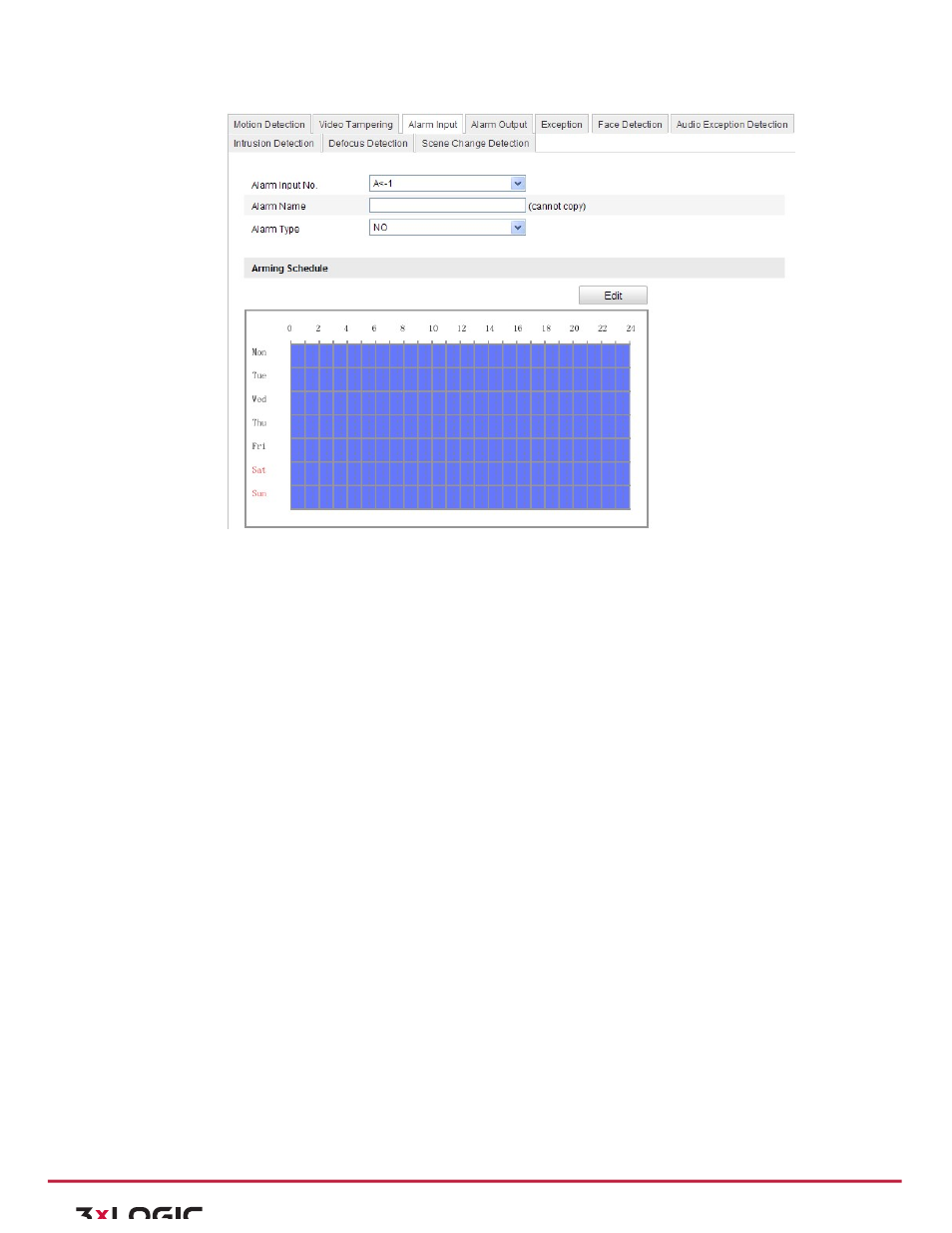

Figure 6-­‐41
Alarm
Input
Settings
3) Click
Edit
to
set
the
arming
schedule
for
the
alarm
input.
Refer
to
Task
2
Set
the
Arming
Schedule
for
Motion
Detection
in
Section
6.6.1.
4) Check
the
checkbox
to
select
the
linkage
method
taken
for
the
alarm
input.
Refer
to
Task
3
Set
the
Alarm
Actions
for
Motion
Detection
in
Section
6.6.1.
5) You
can
also
choose
the
PTZ
linking
for
the
alarm
input
if
your
camera
is
installed
with
a
pan/tilt
unit.
Check
the
relative
checkbox
and
select
the
No.
to
enable
Preset
Calling,
Patrol
Calling
or
Pattern
Calling.
6) You
can
copy
your
settings
to
other
alarm
inputs.
7) Click
Save
to
save
the
settings.
CONFIGURING
ALARM
OUTPUT
Steps:
1) Enter
the
Alarm
Output
Settings
interface:
Configuration>Advanced
Configuration>
Events
>
Alarm
Output
2) Select
one
alarm
output
channel
in
the
Alarm
Output
drop-­‐down
list.
You
can
also
set
a
name
for
the
alarm
output
(optional).
3) The
Delay
time
can
be
set
to
5sec,
10sec,
30sec,
1min,
2min,
5min,
10min
or
Manual.
The
delay
time
refers
to
the
time
duration
that
the
alarm
output
remains
in
effect
after
alarm
occurs.
4) Click
Edit
to
enter
the
Edit
Schedule
Time
interface.
The
time
schedule
configuration
is
the
same
as
the
settings
of
the
arming
schedule
for
motion
detection
Refer
to
Task
2
Set
the
Arming
Schedule
for
Motion
Detection
in
Section
6.6.1.
5) You
can
copy
the
settings
to
other
alarm
outputs.
6) Click
Save
to
save
the
settings.
