Delta Electronics 10GBASE-LRM SFP+ Optical Transceiver LCP-10G3B4EDR - Manual (Page 3)

LCP-10G3B4EDR
DELTA ELECTRONICS, INC.
3 Revision: 0B
2008/9/5
www.deltaww.com
Operating Ranges (T
c
= -5 to 70 )
Multimode Fiber Type
Min.Modal
Bandwidth
(MHz*km)
Opterating
Range(m)
Maximum Channel
Insertion Loss (dB)
62.5um MMF OM1 160/500 0.5 to 220 1.9
50um MMF OM2 500/500 0.5 to 220 1.9
50um MMF OM3 1500/500 0.5 to 220 1.9
Optical Transmitter Characteristics (T
C
= -5 to 70 )
Parameter Symbol Min. Typ. Max. Unit Note
Data Rate R 10.3125 Gb/s
Signaling speed variation from nominal. ±100 ppm
Average Output Power P
avg
-6.5 0.5 dBm
Wavelength λ 1260 1355 nm
RMS Spectral Width at 1260nm
RMS Spectral Width between 1260nm and 1300nm
RMS Spectral Width between 1300nm and 1355nm 2.4
Figure 1
4
nm
nm
nm
1
Extinction Ratio ER 3.5
Optical Modulation Amplitude OMA -4.5 1.5 dBm
RIN
20
OMA RIN -128 dB/Hz

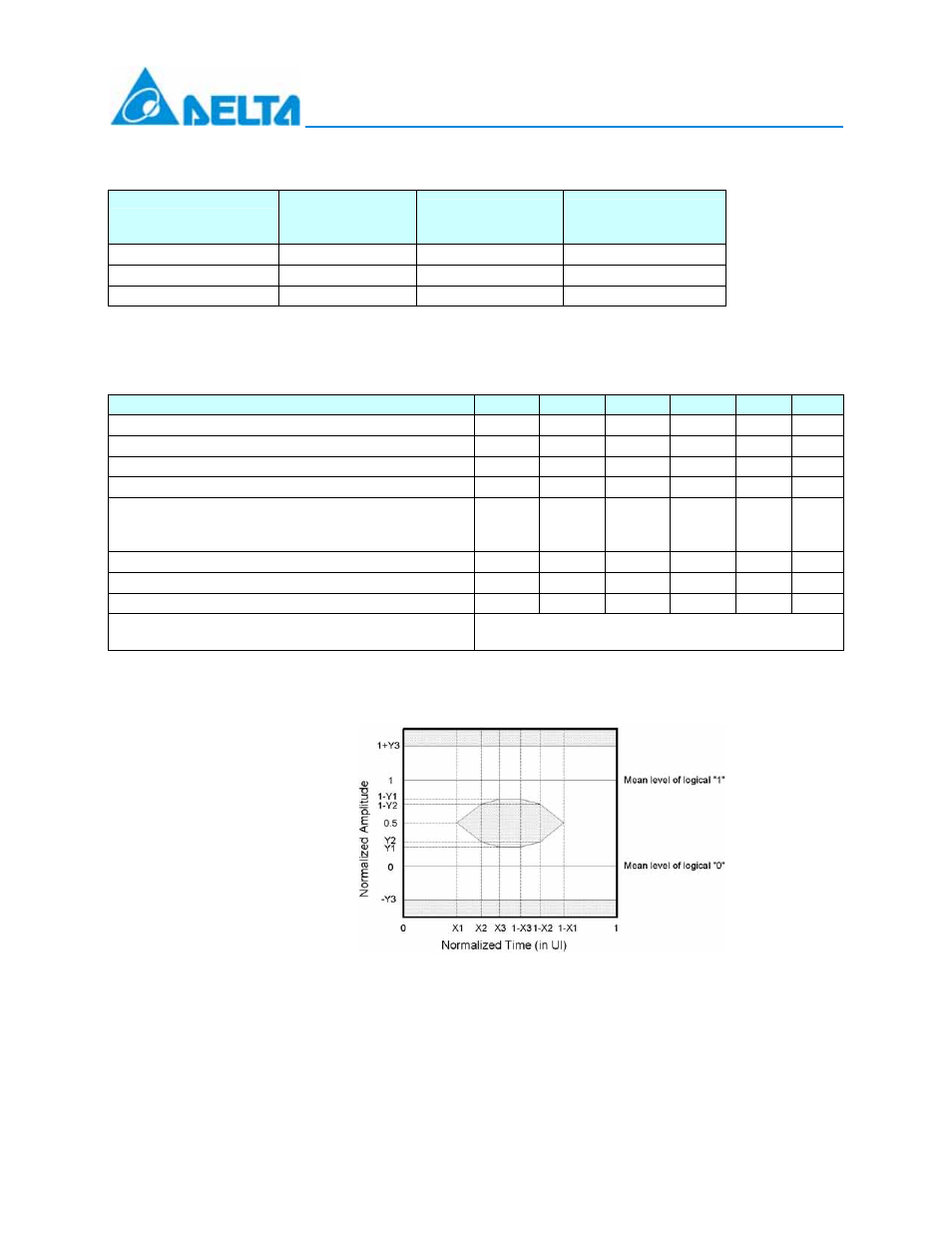

Transmitter eye mask definition
{X1, X2, X3, Y1, Y2, Y3}
{0.25, 0.40, 0.45, 0.25, 0.28, 0.40}
Notes:
1. Refer to the spectral limits curve in Figure 1.
Transmitter eye mask definition
