HOW то ADD ТА К

Type

A TO EXISTING SYSTEM WHEREBY INSTALLED OLD TA-K

The following two diagrams show wiring connection of TA-K Type A mixed with old TA-K. If you install newly

AIPHONE Apartment House Intercom System, please order all TA-K Type A apartment telephone and refer to the wiring

diagram on Page 3 of this manual.

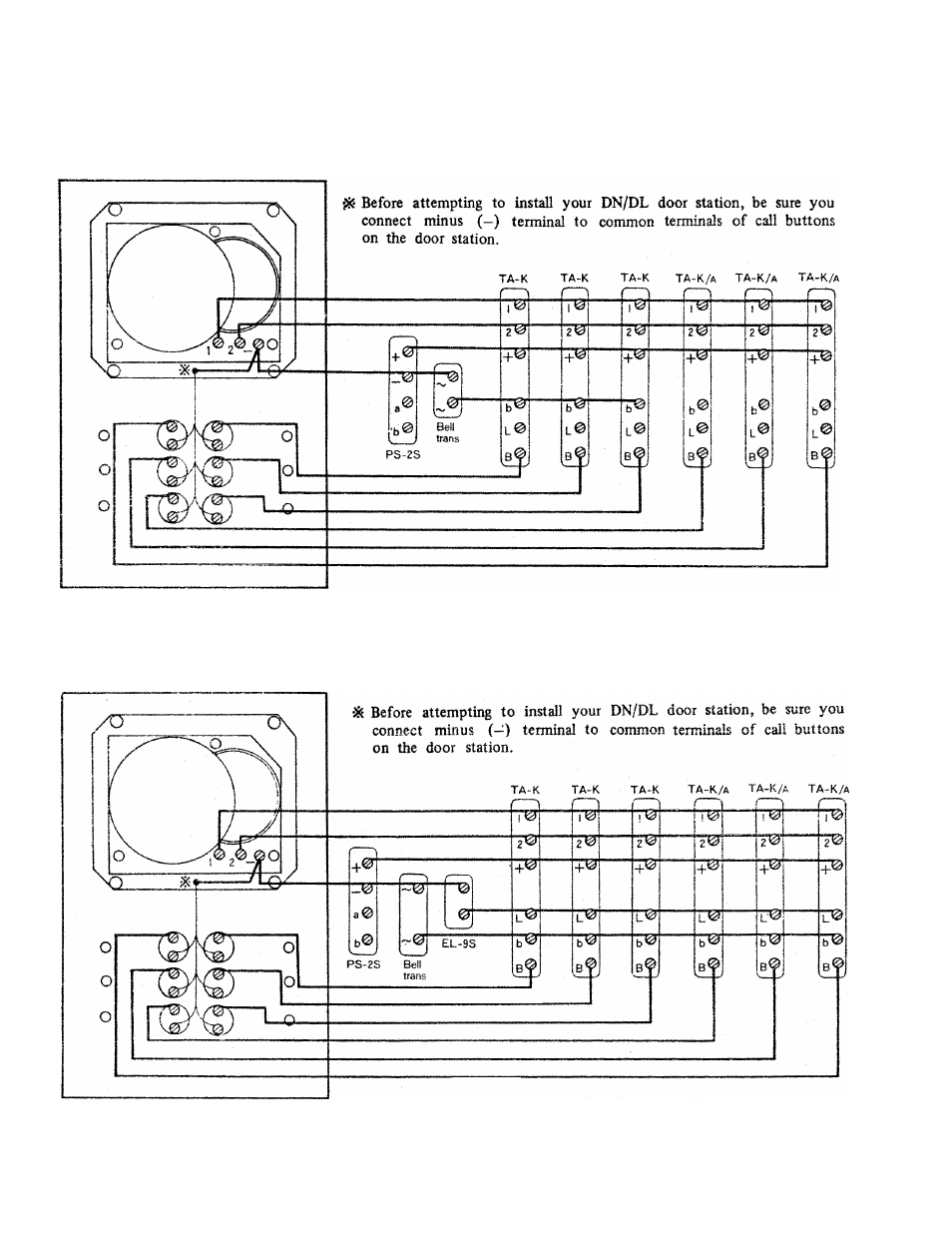

Example 1

DL-6

Three TA-K Type A added to existii^ system without door release.

Separate Bell Transformer (AC-12V) is required to power AC call buzzer on old TA-K.

Example 2 :

Three TA-K Type A added to existing system with door release.

DL-6

Separate Bell Transformer (AC-12V) is required to power both call tone and EL-9S electric door release.

NOTE: Call tone quality will be spoiled if AC-12V is supplied from0and(b)terminals on PS-2S. So we recommend
you to have separate Bell Transformer in above examples.
