AiPHONE
DOOR-PHONE
APARTMENT HOUSE INTERCOM SYSTEM
FOR APARTMENT BUILDINGS OF 50 SUITES OR LESS
INSTRUCTIONS

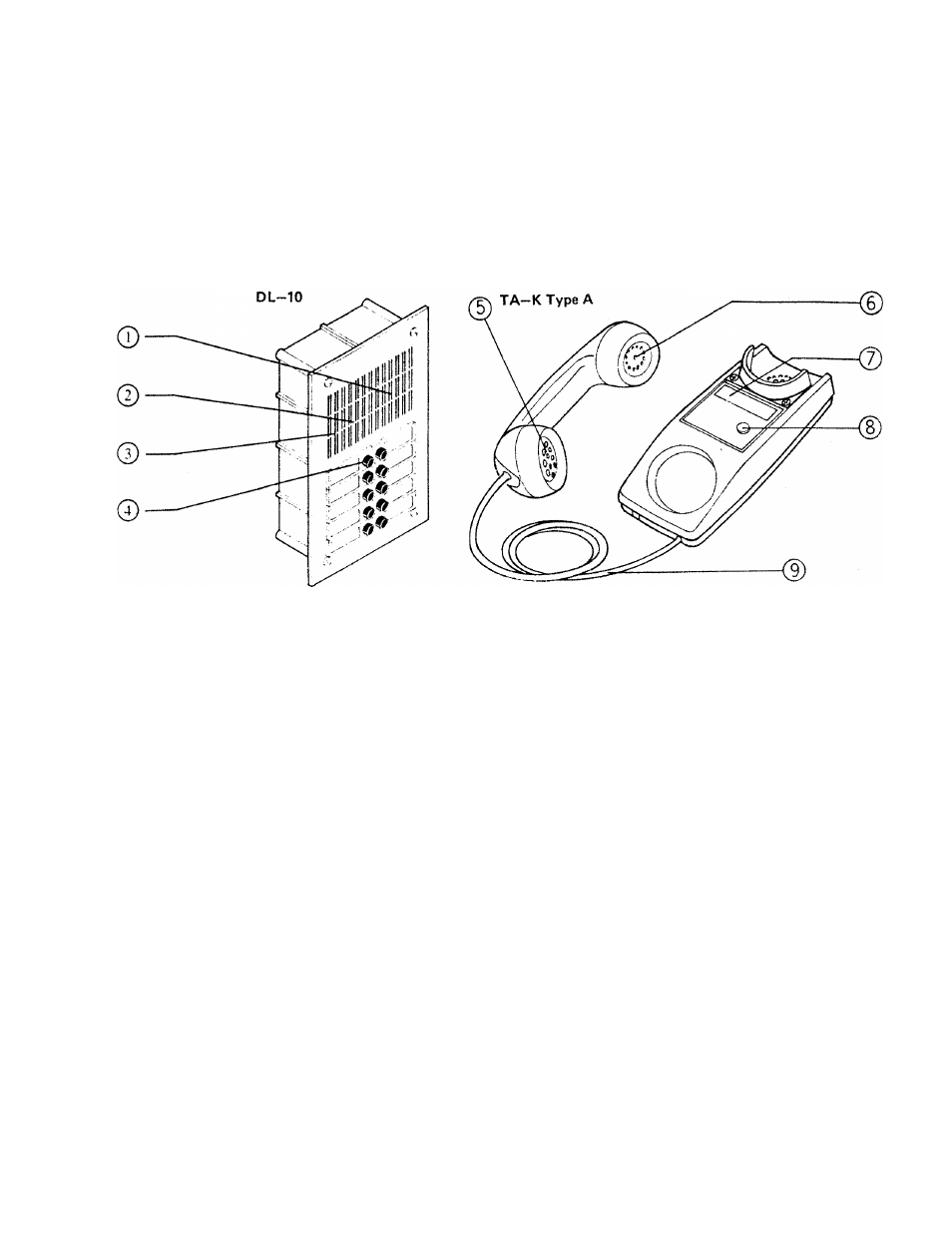

NAMES AND FUNCTIONS
'1,/ Speaker
(2; Microphone
(3) Amplifier
'.4J Cal! switch
SPECIFICATIONS:
* Power source:
DC 9 volt. Use PS-2S power supply.
* Current consumption; 80 MA during conversation (DC).
45 MA for ring circuit (DC).
Push button selection at door station.
Calling:
Communication:
Riser wiring;
Handset microphone
Handset speaker
(f'
Body
Door release switch
(91 Straight cord (coil cord available
if ordered specially)
Hands free loudspeaking at door station.
Simultaneous conversation telephone-type room station.
3 common plus 1 per suite. (Additional two wires may be required when installing
EL-9S electric door release)
FEATURES:
* No push to talk switch; easy to use telephone-type station in suite and hands free loudspeaker/microphone at door.
* One power supply only needed to supply communication power and door release power.
* Door stations may be parallel for multiple door installations.
INSTALLATION
Do not attempt to install your intCTcom system until you have read and thoroughly understood the installation
procedure. Aiphone's warranty is void if system is installed in a manner other than as described in this manual.
