WIRING
Lay out your system in advance. We recommend that spare conductors be included in each riser to eliminate the
possibility of removing all of the cable should a conductor prove defective.
Refer to the chart below and select the proper gauge wire to meet your requirements.
ЮТЕ; If 22 AWG is used, we suggest that 2 conductors be used on each b & L, to give more current to electric strike.
Wiring is simple and straight forward. Refer to the drawing and make connections as indicated. ‘B’ terminal on each
phone completes ring circuit to door station and is the only wire in the riser that is not common. Connect ‘B’ wire from each
phone to whichever push button you desire at door station to provide a directory layout that meets your requirements.
AWG WIRE SIZE 22 AWG 20 AWG 18 AWG
DISTANCE 1100' 1650' 2500'
DIAMETER OF WIRE 0.65 mm 0.8 mm 1.0 mm
DISTANCE 330 mm 500 m 800 m
EQUIPMENT AVAILABLE FOR USE WITH YOUR DOOR-PHONE APARTMENT HOUSE INTERCOM
DN-4
iiaiüiiiiiti;;
1! Mill nil! II:!
• •
' •
0
0
•
üit
DL-10
"at*
~*'0
• •
DN— : Door station with back box with
speaker and microphone. For apartment
building of 4 suites or less.
DN—0: Includes no call buttons.
DN—1: Includes 1 call button.
DN—2: Includes 2 call buttons.
DN—3: Includes 3 call buttons.
DN—4: Includes 4 call buttons.
DL— ; Door station with back box with
speaker and microphone. For apartment
building of 6 suites or more.
DL—0: Includes no call buttons.
DL—6: Includes 6 call buttons.
DL—10; includes 10 call buttons.
DL—20S; Call button panel complete with
back box and 20 call buttons.
Designed for use in conjunction with DL
door station. Allows up to 20 suites
selections with DL-0 and up to 30 suites
selections with DL-10.
PS—2S; Power supply for system.
Provides 9V DC for communication and
12V AC for door relea.se operation.
DL—20S w/o call buttons: Black plate with
back box. Punched for 20 call buttons.
(Available only in U.S.A.)
D: Call button complete with plastic
covered slot for name.
ST—2: Blanking strip - to cover unrequired
holes. Will cover two horizontally.
(Available only in U.S..A.)
TA—K Type A: Heavy duty apartment tele­
phone. May be placed on desk or table,
or may be mounted on standard one gang
switch box. Includes button to operate
electric door release.
TA—K Type A w/coil cord:
Apartment telephone with coil cord.
(Please specify when ordering).
EL—9S: Electric door release.

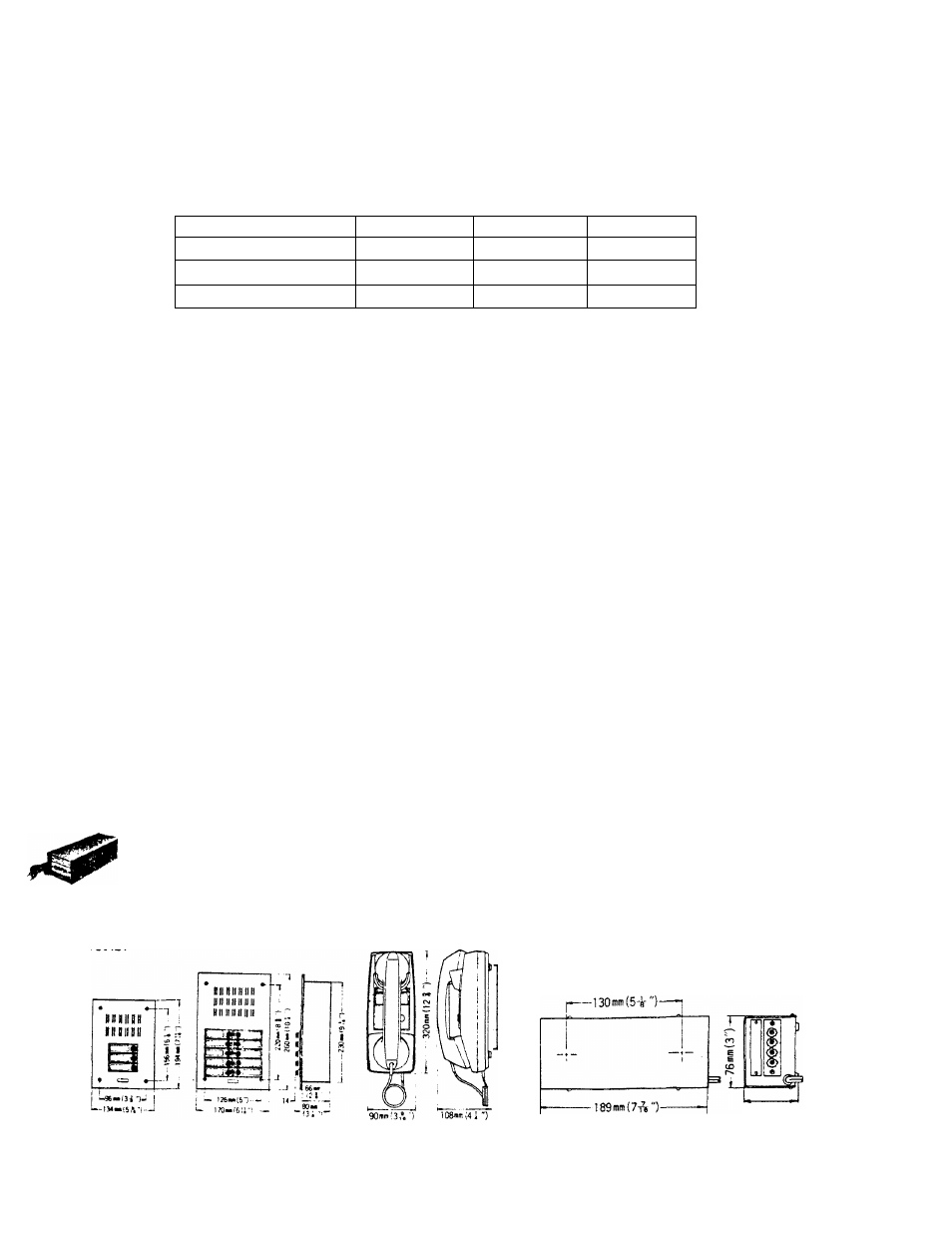

DIMENTIONS
DN DL TA-K Type A
■ m
;l
: iT>
. .ten
64 mm (2-F")
PS-2S
-2-
