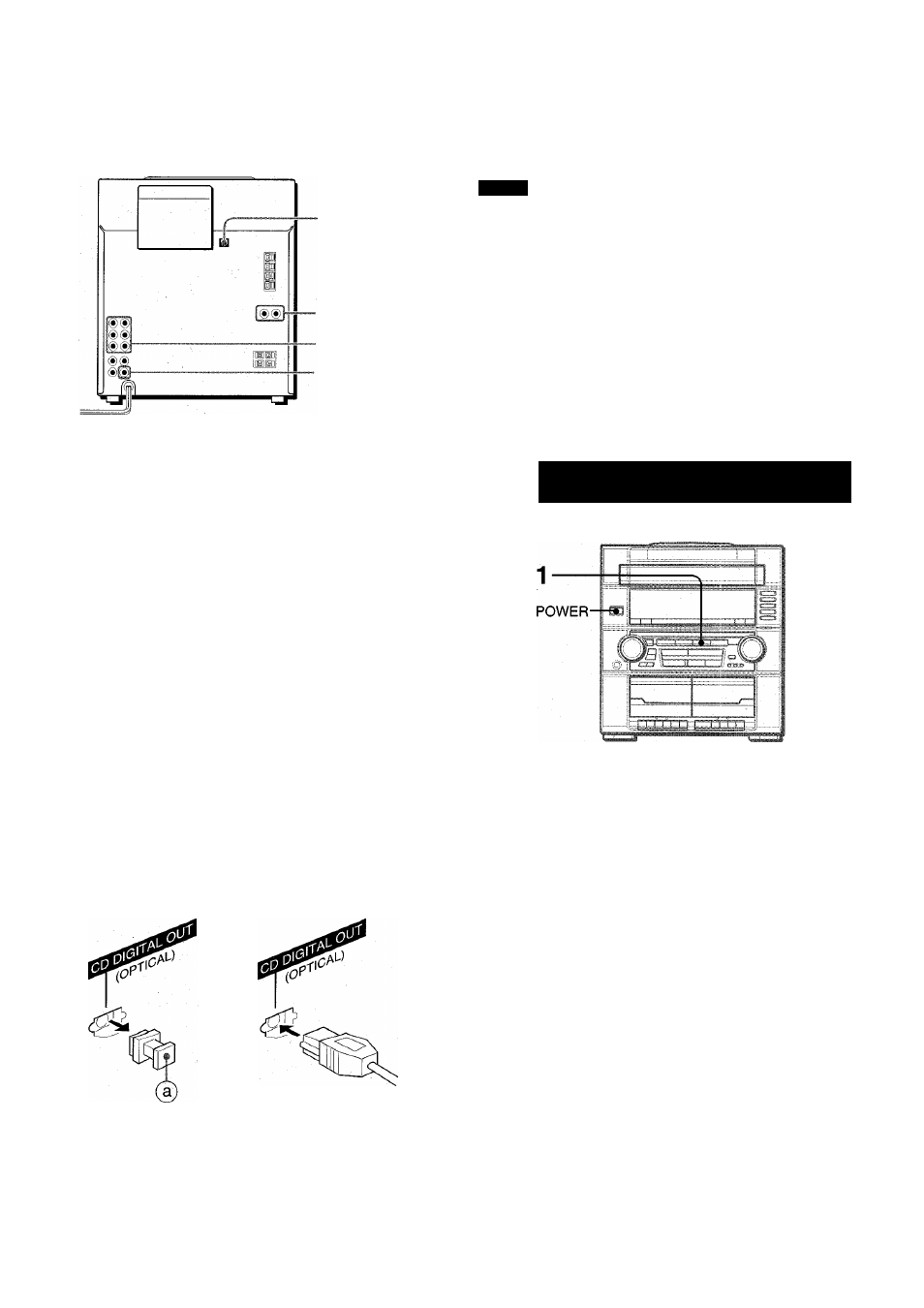

OTHER CONNECTIONS

-CD DIGITAL OUT

(OPTICAL)

■ VIDEO/AUX/

PHONO IN

•5.1 CH INPUT

■SUB WOOFER

SUB WOOFER JACK

Connect an optional powered sub woofer with a built-in amplifier

to the jack.

NOTE

SUB WOOFER output jack is designed to reproduce the DOLBY

DIGITAL SURROUND sound.
No sound is heard from the sub woofer when the DOLBY PRO

LOGIC, the DSP SURROUND system and the 5.1 CH are set to

off.

5.1 CH INPUT JACKS

This unit can input sound signals from the audio equipment (DVD

players, LD players, etc.) that contains a Dolby Digital decoder

with the 5.1 ch output terminals. Refer to “CONNECTING A

DVD PLAYER” on page 20.

Refer to the operating instructions of the connected equipment

for details.
• The connecting cords are not supplied. Obtain the necessary

connecting cords.

• Consult your local Aiwa dealer for optional equipment.

NG TO EXTERNAL SOURCES

VIDEO/AUX/PHONO IN JACKS

This unit can input analog sound signals through these jacks.

Use a cable with RCA phono plugs to connect audio equipment
(turntables, DVD players, LD players, MD players, VCRs, TV,

etc.).
Connect the red plug to VIDEO/AUX/PHONO IN R jack, and the
white plug to VIDEO/AUX/PHONO IN L jack.

When connecting a turntable

Use an Aiwa turntable equipped with a built-in equalizer amplifier.

CD DIGITAL OUT (OPTICAL) JACK

This unit can output CD digital sound signals through this jack.

Use an optical cable to connect digital audio equipment (DAT

deck, MD recorder, etc.).

Remove the dust cap (g) from the CD DIGITAL OUT (OPTICAL)

jack. Then, connect an optical cable plug to the CD DIGITAL

OUT (OPTICAL) jack.

To play equipment connected to VIDEO/AUX/PHONO IN jacks

proceed as follows.

Press VIDEO/AUX/PHONO.

“VIDEO” appears on the display.

Play the connected equipment.

To change a source name on the display
When VIDEO/AUX/PHONO is pressed, “VIDEO” is displayed

initially. It can be changed to “AUX,” “PHONO” or “TV.”

With the power on, press POWER while pressing VIDEO/AUX/

PHONO.
Repeat the procedure to select one of the names.

When the CD DIGITAL OUT (OPTICAL) jack is not being

used

Attach the supplied dust cap.

ENGLISH
