PREPARATIONS
The DOLBY PRO LOGIC system which is the biggest feature of
this stereo system provides you with muiti channei sound in your
home.
Complete setting and connection of the main unit, supplied
speakers, yourTV and video equipment according to the following
procedure.

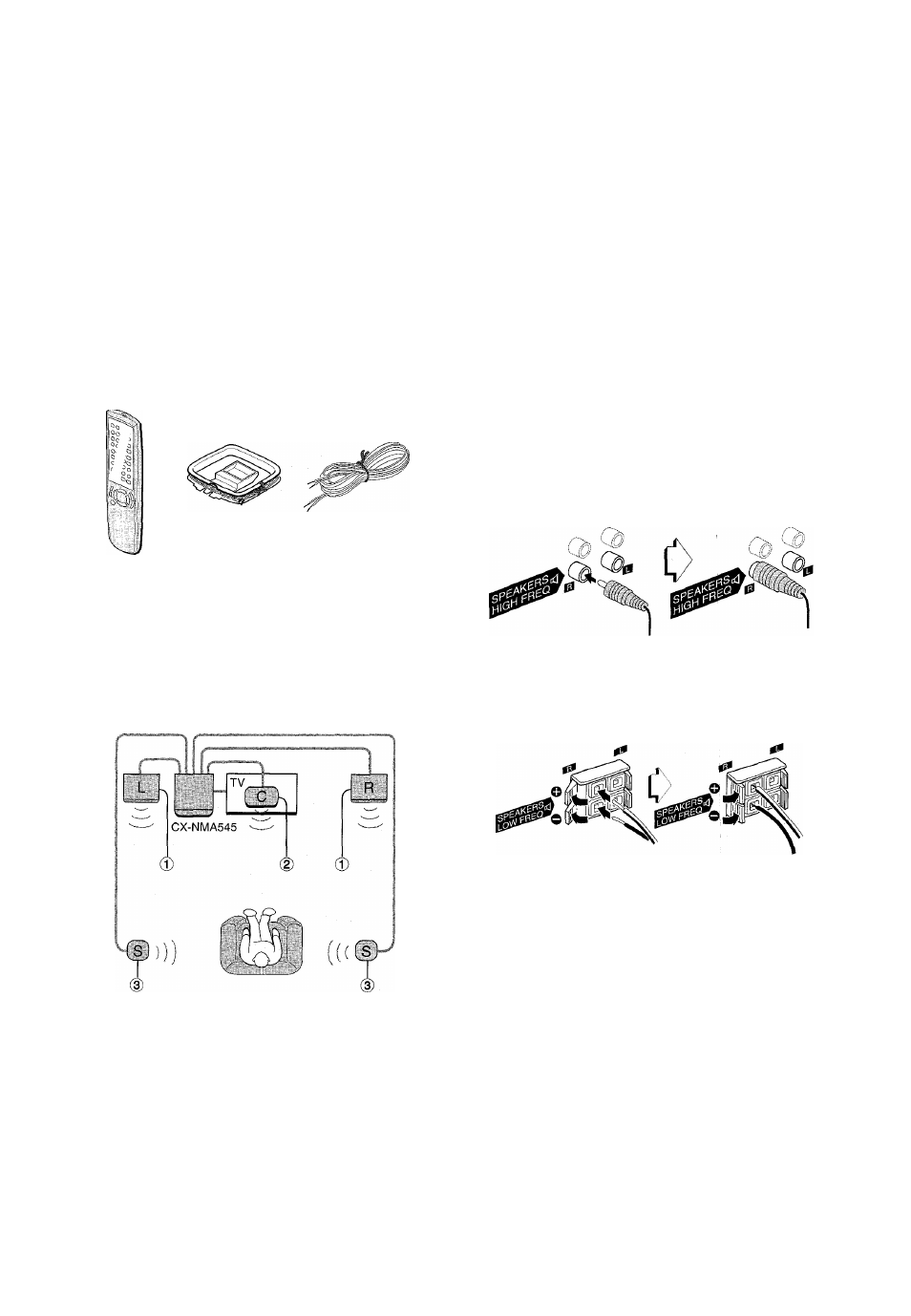

Check your system and accessories
CX-NMA545 Compact disc stereo cassette receiver
SX-WNA555 Front speakers
SX-R275 Surround speaker
SX-C605 Center speaker
Remote control
AM antenna
FM antenna
Operating instructions, etc
POSITIONING THE SPEAKERS
To achieve the optimum effects obtainabie with the DOLBY PRO
LOGIC system, it is important to position the speakers properly.
Refer to the following illustration to find out the best location in
your room.
> No sound is heard from the center and surround speakers when
the DOLBY PRO LOGIC is set to off.
’ The center speaker sounds when the DOLBY PRO LOGIC is
set to on.
CONNECTIONS
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.
IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
There are no differences between the front speakers. Both
speakers can be connected as L (left) or Ri(right).
1
Connect the right speaker to the main unit.
® Connect the speaker cord with the plug to the
SPEAKERS
HIGH FREQ R
terminal.
(D Connect the speaker cord with the 'white stripe to the
SPEAKERS LOW FREQ R O
terminal and the black cord
to the O terminal.
2
Connect the left speaker to the niain unit.
Connect the speaker cord with plug to the:
SPEAKERS HIGH
FREQ L
terminal, and another speaker cord to the
SPEAKERS LOW FREQ L
terminals in the same manner as
step 1.
® Front speakers
@ Center speaker
Position in the center of the two front speakers. In addition,
position on or below the TV set, if connecting a TV set to the
unit.
(D Surround speakers
Place the surround speakers directly to the side of or slightly
behind the listening area. Align them horizontally, about 1
meter (3.2 feet) above ear height.
4
