IMPORTANT
Connect the speakers, antennas, and all optional equipment first.
Then connect the AC cord.
There are no difference between the front speakers. Both
speakers can be connected as L (left) or R (right).
Before connecting the AC cord
The rated voltage of your unit shown on the rear panel is 120 V
AC. Check that the rated voltage matches your local voltage.

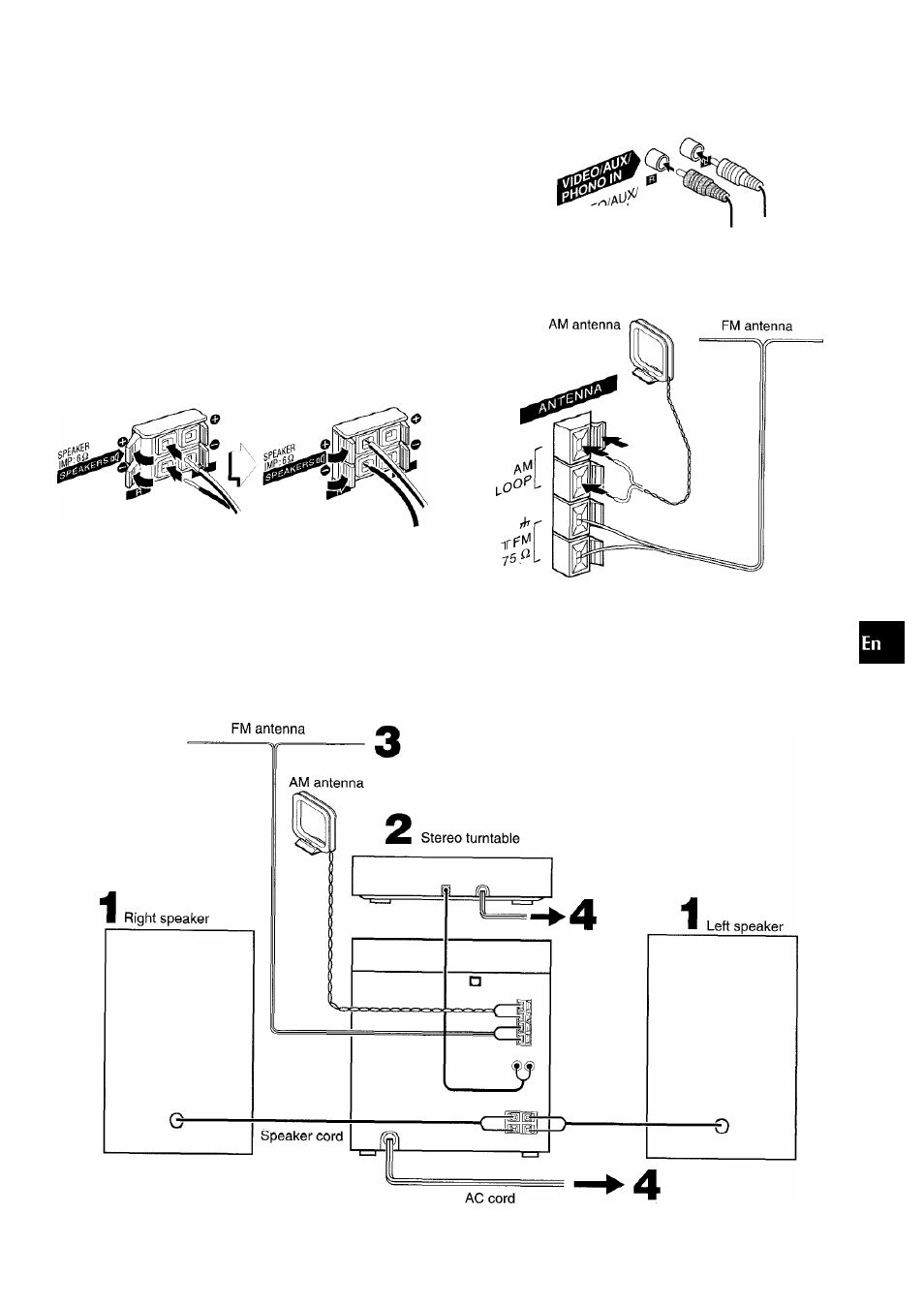

2 Connect the stereo turntable to the main unit.
Connect the red plug to
VIDEO/AUX/PHONO IN R
jack, and
the white plug to
VIDEO/AUX/PHONO IN L
jack.
3 Connect the supplied antennas.
Connect the FM antenna to
FM 75
Q. terminals and the AM
antenna to
AM LOOP
terminals.
(0
z
o
B
ill
B
&
1 Connect the right and left speakers to the main
unit.
Connect the right speaker cord to
SPEAKERS R
terminals,
and left
to SPEAKERS L
terminals.
The speaker cord with the white stripe should be connected
to O terminal and the black cord to © terminal.
4 Connect the AC cord to an AC outlet.
• The game Demo will begin when the AC cord is plugged
into an AC outlet. See page 7 “Game Demo” for details.
To be continued on page 6.
