a

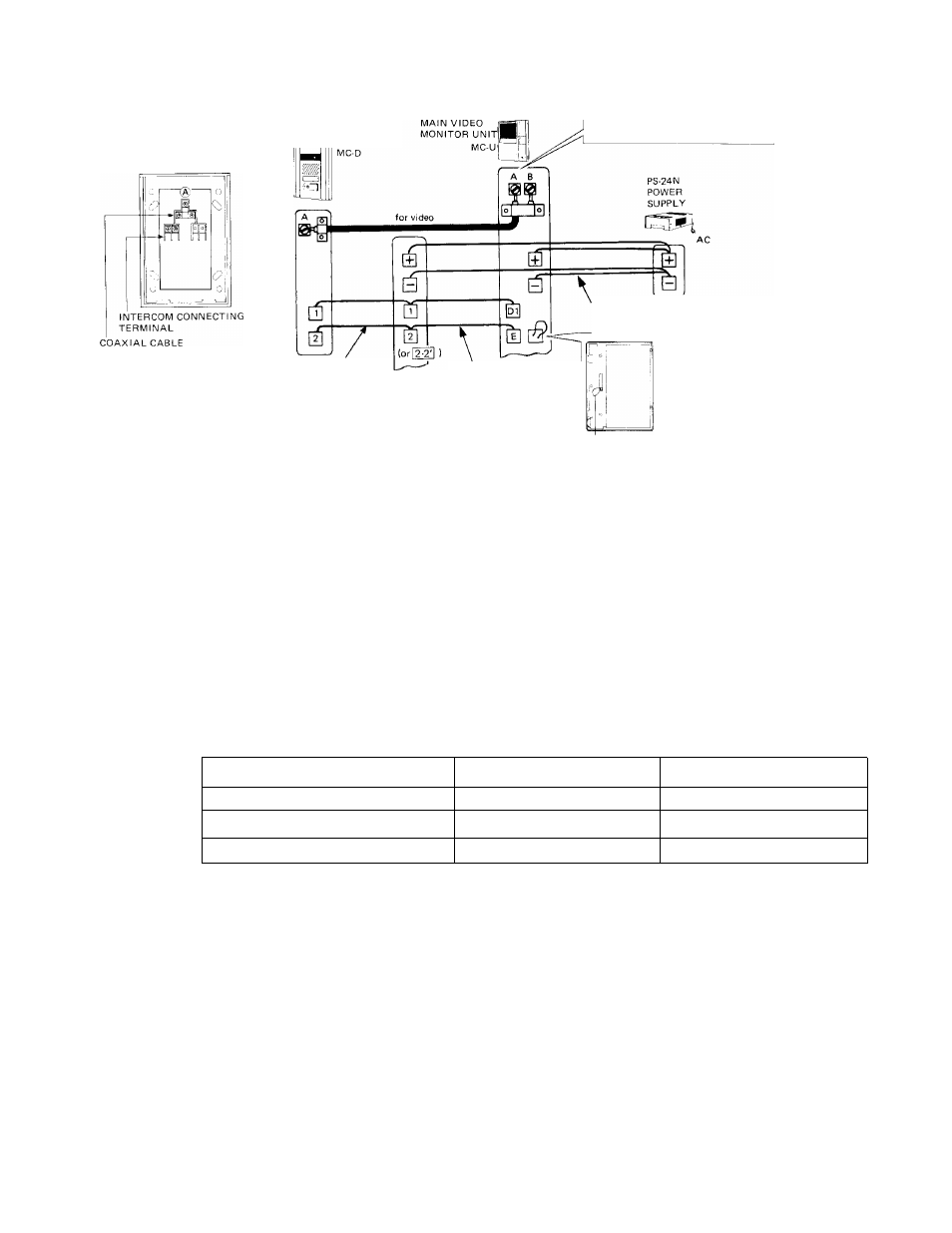

WIRING DIAGRAM
VIDEO DOOR
STATION (with
CCD CAMERA)
COAXIAL CABLE FROM MC-D MUST
BE CONNECTED TO TERMINAL
ON MC-U.
MC-D BACK VIEW
TERMINAL
Run power supply line from PS-24N
to each MC-U and 1C intercom.
I For additional light wiring, see the |
i
Instructions for MAW-B unit. !
for calling &
communication
IC-1 AD(U)
IC-1GD(U)/A
OR IC-2AD(U)/A
POLARIZED
(^1
IMPEDANCE-MATCHING PLUG
SHOULD"~
b
'
e
REMOVED ON VIDEO
MONITORS, EXCEPT ON THE FAR
THEST MCH-U,
IF
SYSTEM
INCLUDES
ONE
VIDEO
MONITOR ONLY, THE PLUG SHOULD
REMAIN ATTACHED.
• PLUG ATTACHED: SET TO 75 OHM
POSITION
• PLUG REMOVED; SET TO HIGH
IMPEDANCE POSITION
SPECIFICATIONS
* Power source:
* Camera unit:
* Minimum illumination:
* Scanning line:
* Resolution:
* Object pickup range:
* Calling:
* Wiring:
* Wiring distance:
Supplied by MC-U main video monitor.
CCD
(charge-coupled device).
1 lux on the o b j e c t . . . at a distance of 30 cm (1') or less.
It is suggested to secure brightness of 200 to 300 lux in the dark area to obtain the best picture.
625/525 lines.
More than 300 TV lines vertically and horizontally.
Approx. 35.5 cm (14") vertically,
Approx. 49 cm (19-5/16") horizontally, both at a distance of 50 cm (19-5/8").
2- or 4-stroke electronic chime.
One coaxial cable plus single pair of wires.
For audio/video;
Coaxial cable; Wire gauge
3C-2V,0.65mm dia.
5C-2V, 0.65 mm dia.
Distance between MC-D and MC-U
50 m
150 m
Coaxial cable; Wire gauge
RG-59/U (22 GA), 22 AWG
RG-59/U (20 GA), 22 AWG
Distance between MC-D and MC-U
165'
490'
MC-D dimensions:
Weight:
H:175mm x W:120 mm x D:25.5mm (recessed: 38mm)
H:6-7/8" X W:4-3/4" x D : l " (recessed: 1-1/2").
Approx. 680 g (1.5 lbs).
WARRANTY
3«
%
1
,
Aiphone warrants its products to be free from defects of material and workmanship under normal use and service for a period of one
year after delivery to the ultimate user and will repair free of charge or replace at no charge, should It become defective upon which
examination shall disclose to be defective and under warranty. Aiphone reserves unto itself the sole right to make the final decision
whether there is a defect in materials and/or workmanship; and whether or not the product is within the warranty.
This warranty shall not apply to any Aiphone product which has been subject to misuse, neglect, accident, or to use in violation of
instructions furnished, nor extended to units which have been repaired or altered outside of the factory.
This warranty does not cover batteries or damage caused by batteries used in connection with the product.
This warranty covers bench repairs only, and any repairs must be made at the shop or place designated in writing by Aiphone, Aiphone
will not be responsible for any costs incurred involving on site service calls.
cpepepe|5cpc|xpepc|5e5xpepepe|5epep
Aiphone Co., Ltd., Nagoya, Japan
INTERCOM SYSTEMS
Aiphone Corporation, Bellevue, Washington
@
ll\l I bKLtUM :sY&l ttvi:>
AIPHONE
MC-D-IM (E) 0788G
-
4
-
HOME, BUSINESS, INDUSTRY
Printed in Japan (E)
