Installation Instructions
»cure shutters
A, Carefully slide the air conditioner back into thè dabineth i
(Please séék assistance for this procedure) ,

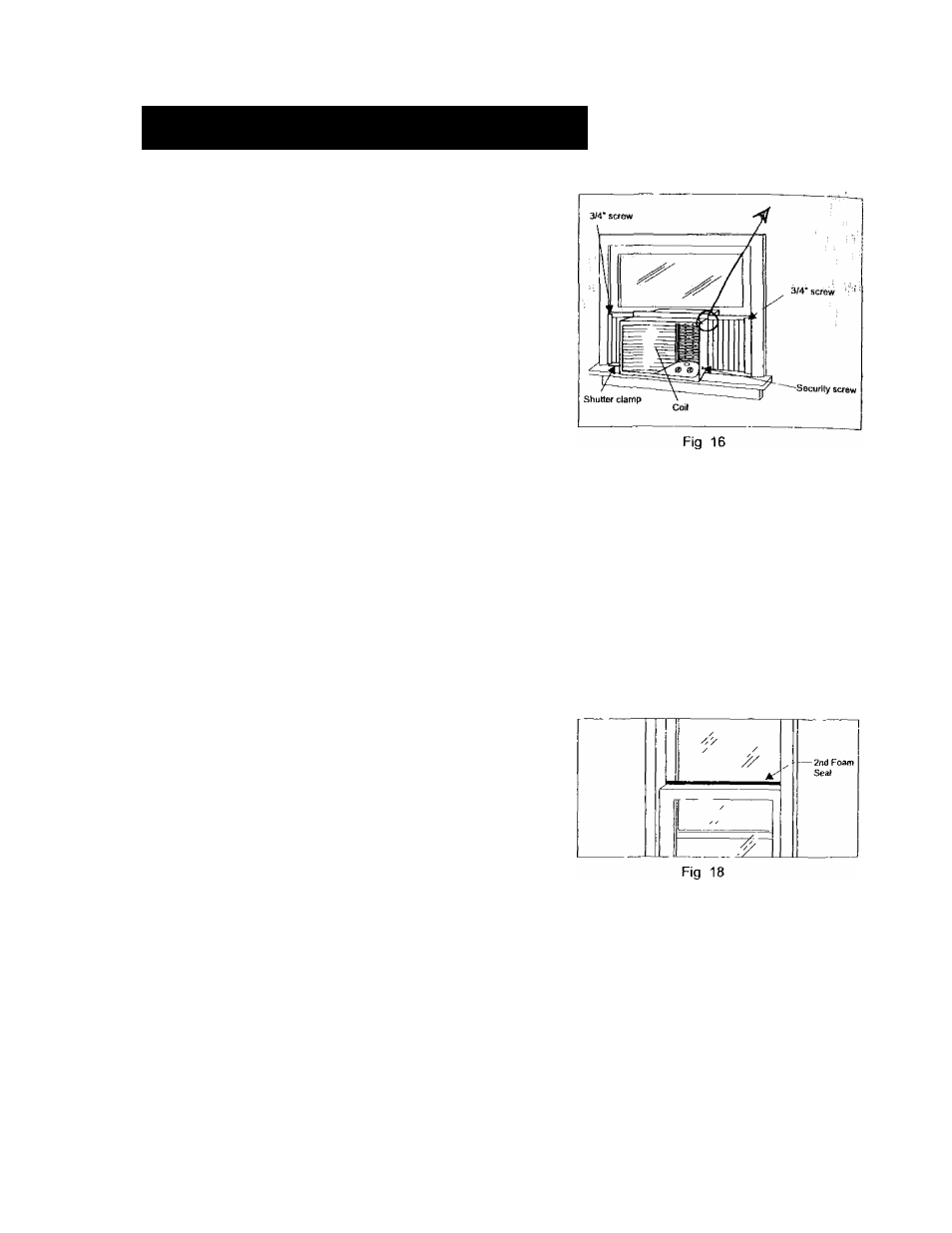

B Reinstall the slide-out-chassis security screws (removed^
earlier) on both sides of the cabinet {Fig 16) Secure the top
of the shutter frames to the window sash with (2) 3/4’' screws
C Now, secure bottom frames of shutters using one shutter
clamp and one 3/4" screw on each side (Fig 16)
9. Reinstalling Front Panel and Air Inlet Grille
(Model 463AAC010BA):
A Position the front panel on the cabinet starting at the top
The front panel lock tabs must be inserted into the
retaining slots in the cabinet Repeat this procedure on
all sides
B Secure the front grille to the cabinet using the Philips
screw removed earller(F/g 17)
C Replace the air filter
D Position the air inlet grille on the cabinet by gently
pressing on it
10. Reinstalling Front Panel and Air Inlet Grille
(Model 463AAC012BA)
A Position the front panel on the cabinet starting at
the top The front panel lock tabs must be inserted
into the remaining slots in the cabinet
B Secure the front grille to the cabinet using the Philips
screw removed earlier
11 Complete the installation
A Cut the second foam seal to fit the opening between
the top of the inside and outside window See {Fig 18)
B Some installations may require additional sealing around
the window and air conditioner Check for any air teaks
and seal where necessary
C In very humid areas, the water removal may be excessive
enough to overflow the unit or increase the noise of the
air conditioner If this occurs, you may wish to attach a
drain hose (not included) to the drain plug allowing
condensations to run off conveniently See {Fig 19)
Coil
Philips screw
Fig 17
Drain Hose
(not ¡nclodeil)
Fig 19
—
11
—
