Multiple PanTilt entries
•Audio, video, and PanTilt control on 2 wires
• Pan and tilting of door camera
• 100m, 330' from camera to monitor on 1.0mm dia.,
18AWG wire
■ Extended distance to 300 m, 980' with MYW-BA
adaptor (using 1.2mm dia., 16AWG PE jacketed wire)
•Can replace an existing doorbell using the same wire
(remove existing transformer)
■ PanTilt video door station
(MY-DC/A or MY-DG/A)
' Panel lock remover
' Packet of screws
' Installation & Operation Manual
★ Refer to the Installation & Operation
manual packed with main monitor or
adaptor.

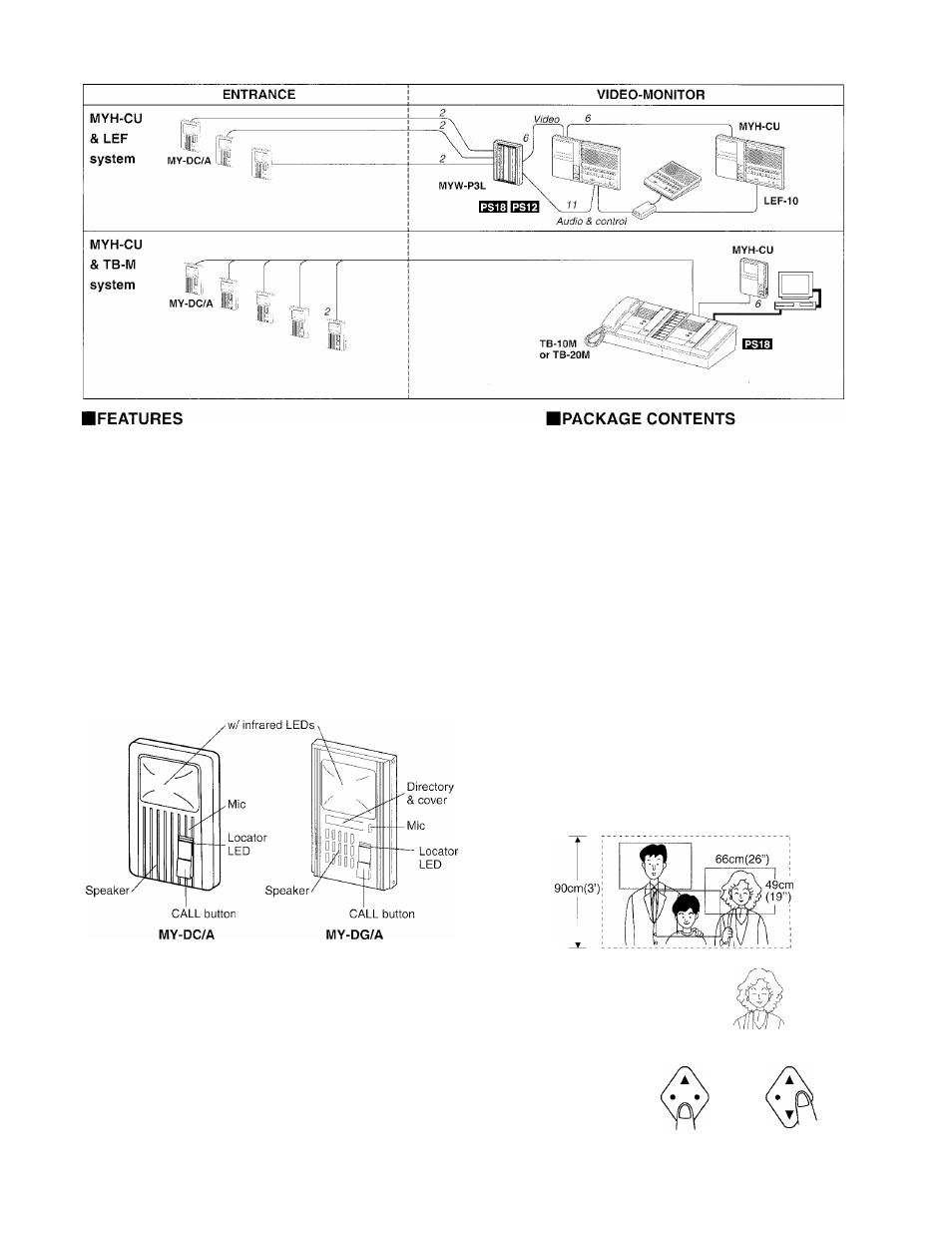

NAMES AND FUNCTIONS
CCD camera
The MY-DC/A and MY-DG/A, when measured at
50 cm, 20" in front of the camera, views an area
of 49 cm, 19" vertically by 66 cm, 26" horizontally.
On any and every inside monitor, operate Pan/tilt
control pad to maximize viewing area, and
Backlight button to view dimly lit or strongly
backlit areas.
MY-DC/A, MY-DG/A
image viewing area
(approximate)
j : when camera is panned and tilted fully
□ : when camera is in stili position.
---------------- 180cm(6’)------------------ H
Camera
tilts down.
Camera pans to right.
