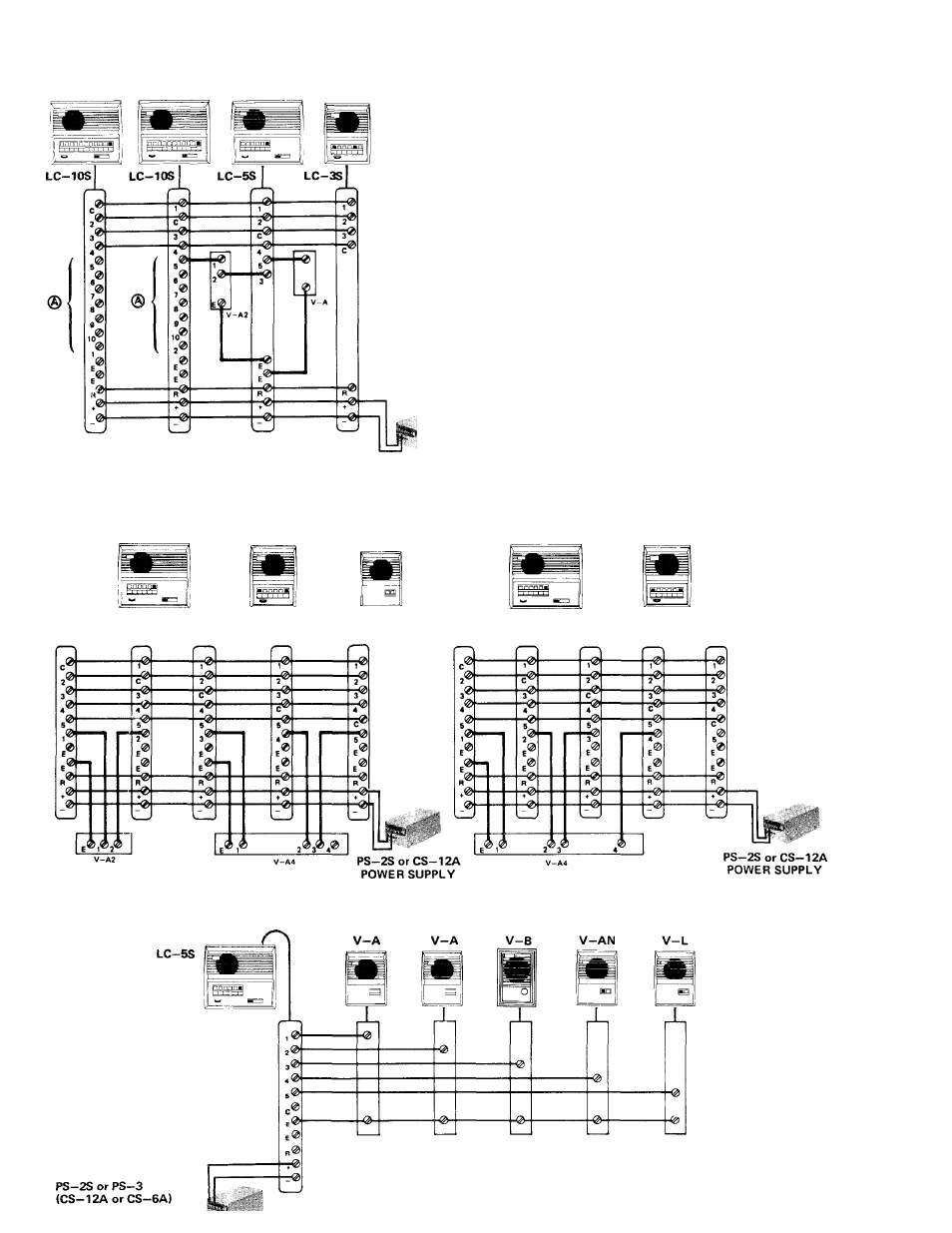

INTERMIXED MASTER STATIONS AND SUBSTATIONS
® These terminals are available for connection to other
subs or masters.
Equipment available for use with an LC—S system can
be intermixed to provide a communications network to meet
your requirements. With proper pre-installation planning,
your LC—S system can become one of the most useful and ver
satile intercom networks available.
PS-2S orCS-12A
POWER SUPPLY
LC-5S SYSTEM WITH V-A2 AND V-A4
SUBSTATIONS
LC-5S SYSTEM WITH V-A4 SUBSTATION
LC-5S
V-A4
V-A2
LC-5S
V-A4
LC-5S
LC-5S LC-5S
LC-5S
LC-5S
LC-5S
LC-5S LC-5S LC-5S
LC-5S
LC-S SYSTEM WITH ONE MASTER AND FIVE SUBS
