Start Bolts (I)
Lock Washers (J)
and Hex Nuts (K
Leave Bottom Side
Bolts Out

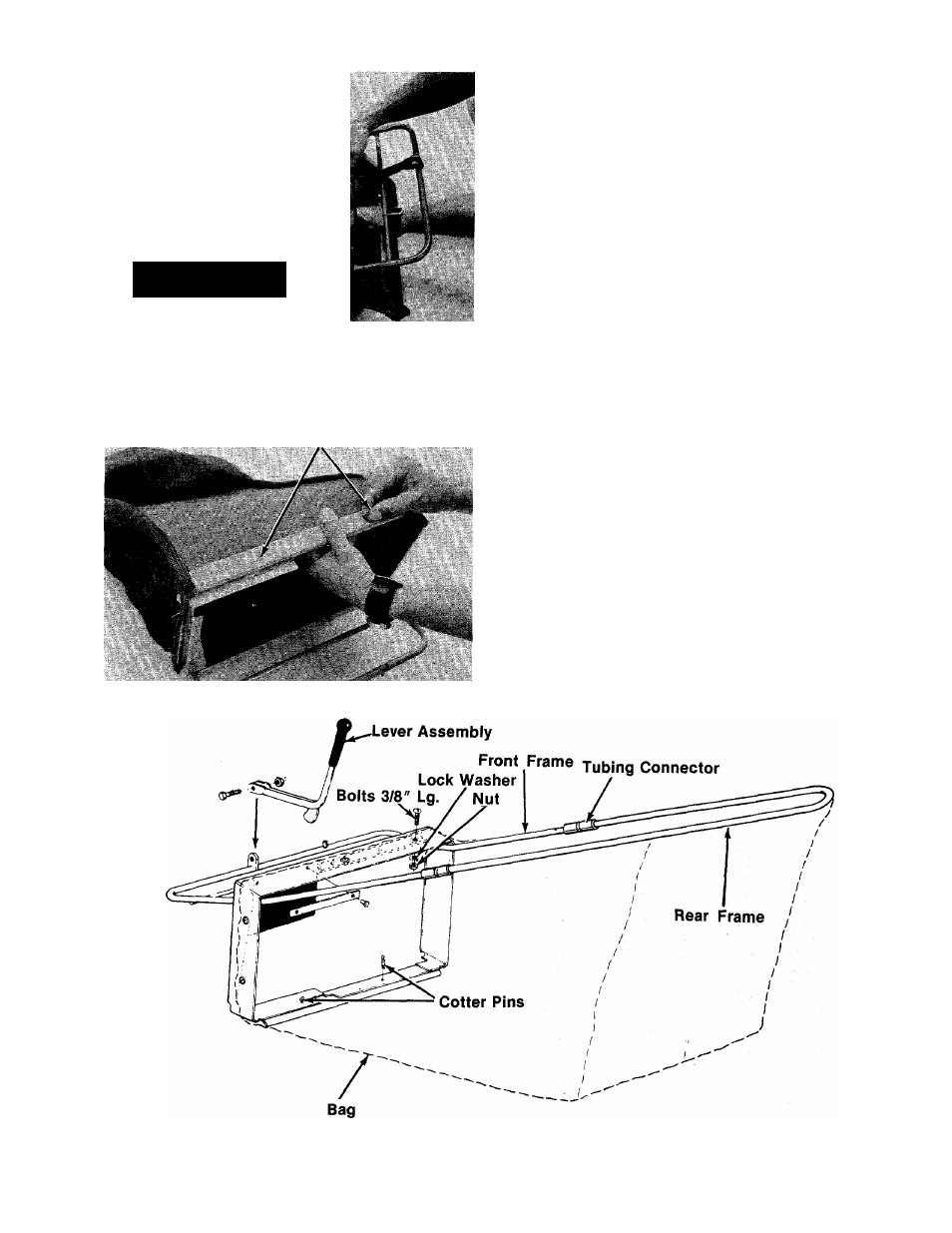

2. Slip frame into grass bag. The black plastic is
the bottom of the grass bag. Fasten edges of
bag (with eyelets) to front frame with 3/8"
—bolts (I), lock washers (J) and hex nuts (K).
Finger tighten. See figure 10. Hint: For easier
assembly
Do Not
fasten lower bolts on sides
until after step 3.
FIGURE 10.
Cotter Pin (L)
3. Stand bag on end with open end up. Pull bot
tom of bag forward into slot. Align holes and
—slip cotter pins (L) into holes. Spread ends of
pins to secure bag to frame. See figure 11.
Tighten all nuts and bolts securely with
screwdriver.
FIGURE 11.
