Bolens 122-336-120 User Manual
Page 5
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
NOTE

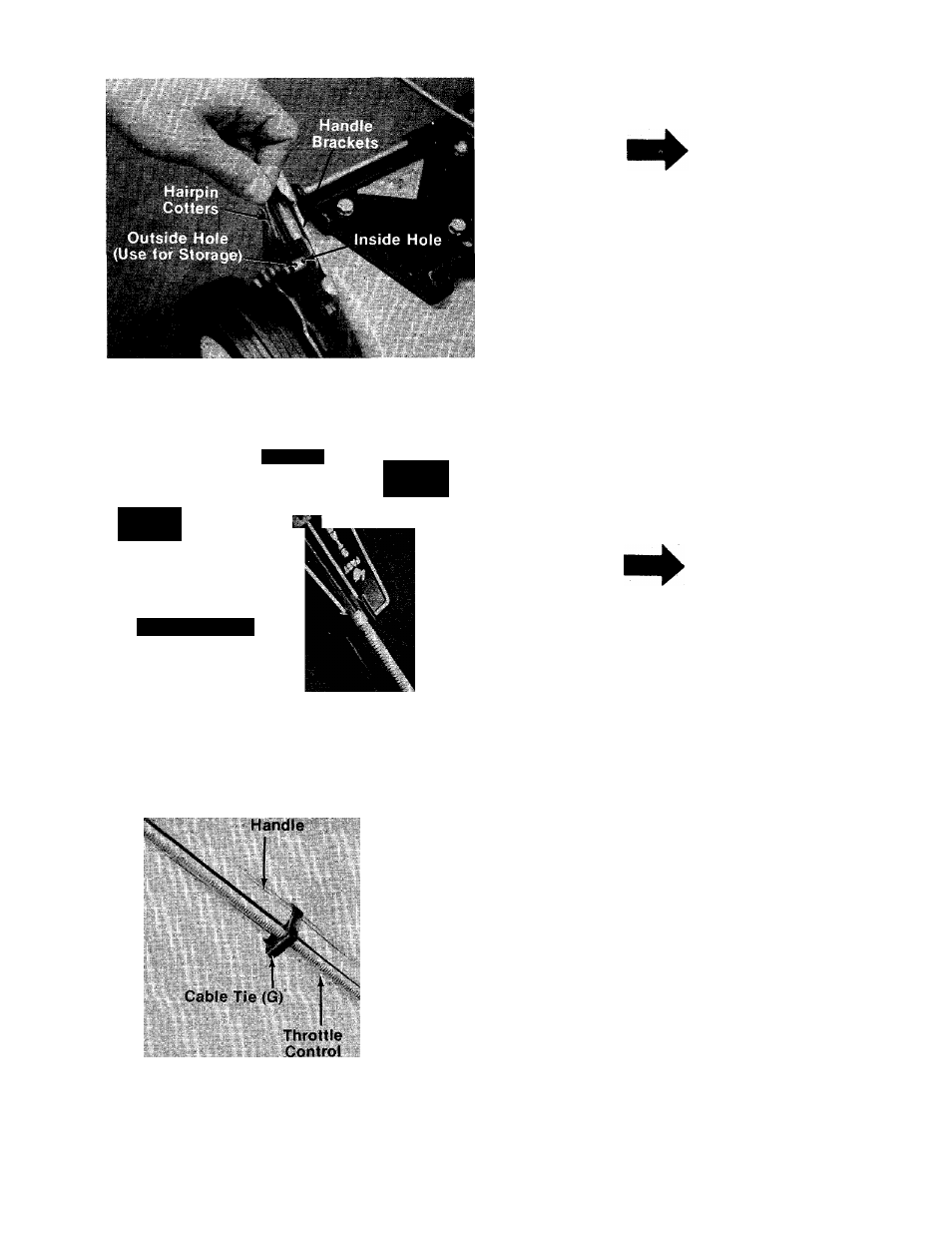

There are two (2) holes in the handle
mount
brackets.
Place
the
lower
-handle
against
the
brackets
and
secure with hairpin cotter in the in
ner hole. Inner hole is for operation.
Outer hole is for storage. See figure
4.
FIGURE 4.
Upper
Handle
Hex Screw (D)
Throttle
Control
FIGURE 5.
4.
Assemble
upper
handle
to
lower
handle.
Secure with two curved carriage bolts (C) and
hand knobs (D) as shown in figure 5. The hand
knobs may be assembled either to the inside
or the outside of the handle.
NOTE
-There are two height positions for
the handle. See adjustment section.
5. Place the throttle control in position on left
side of upper handle. Secure with hex bolt (E)
and lock nut (F). See figure 5.
■6. Secure throttle control cable to upper and
lower handles with cable ties (G) provided.
See figure 6.
7. Check all nuts and bolts for correct tightness.
Cable
FIGURES.
