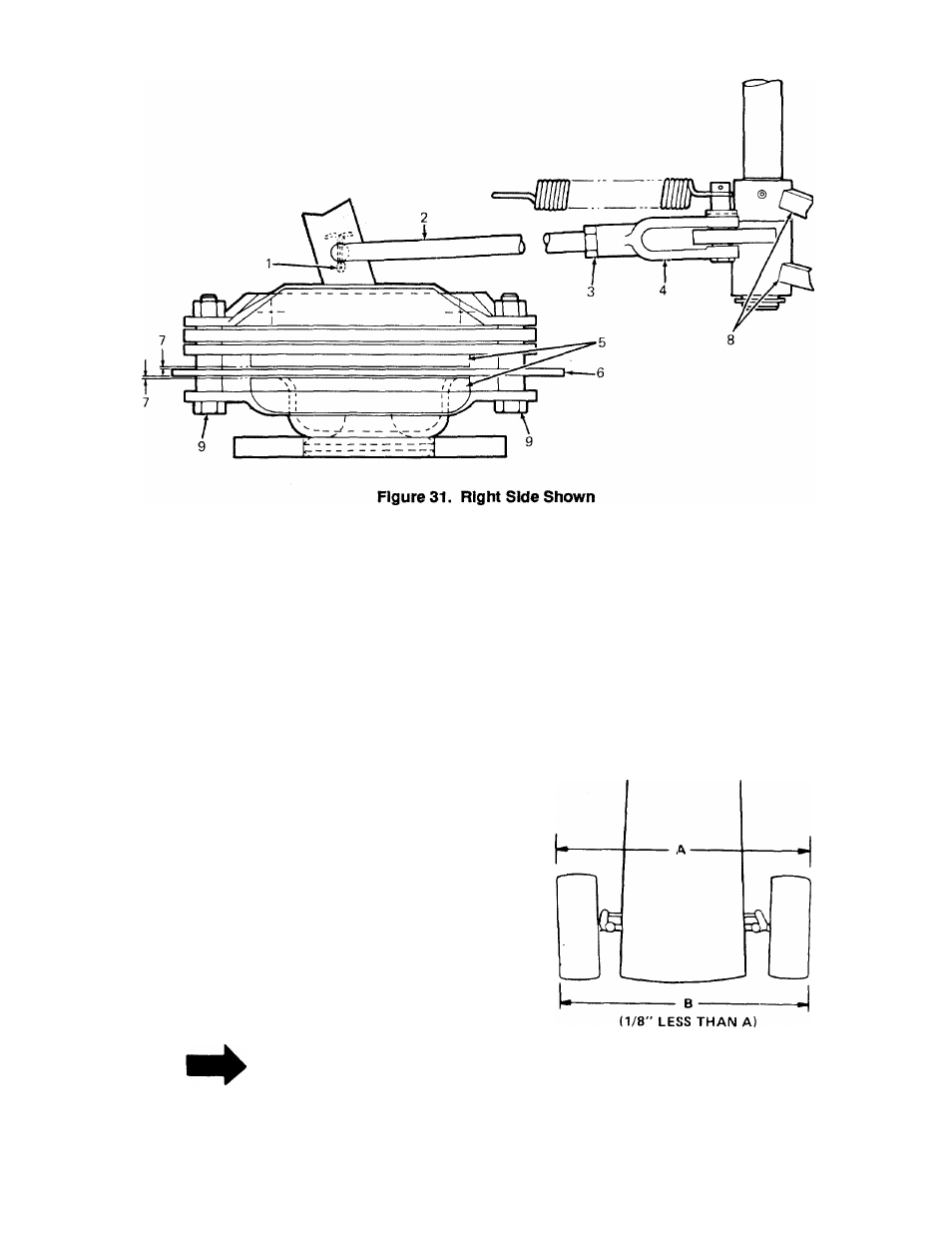

1. Cotter Pin and Washer (Both Sides)
2. Brake Rod (Both Sides)

3. Jam Nut (Both Sides)
4. Clevis (Both Sides)
5. Disc Pads (Both Sides)
6. Rotor (Both Sides)
7. Clearance Between Disc Pads and Rotor

(Both Sides)

8. Turning Brake Pedal Arms
9. Brake Assembly Mounting Bolts

7. Reinstall cotter pins, washers and tighten jam

nuts.

8. Recheck brake adjustment. If the adjustment is

correct, remove wood block and lower tractor.

9. With the wood block removed, the brake disc

pads must not rub against the brake rotor.

WHEEL ALIGNMENT
The front wheels should toe-in approximately 1/8 inch.

Measure the distances A and B on the front wheels.
(See Figure 32.)

NOTE

Dimension B should be approximately 1/8
inch less than dimension A.

Figure 32

For adjustments on toe-in, see your authorized Cub
Cac/ef dealer.
