W. FUSE

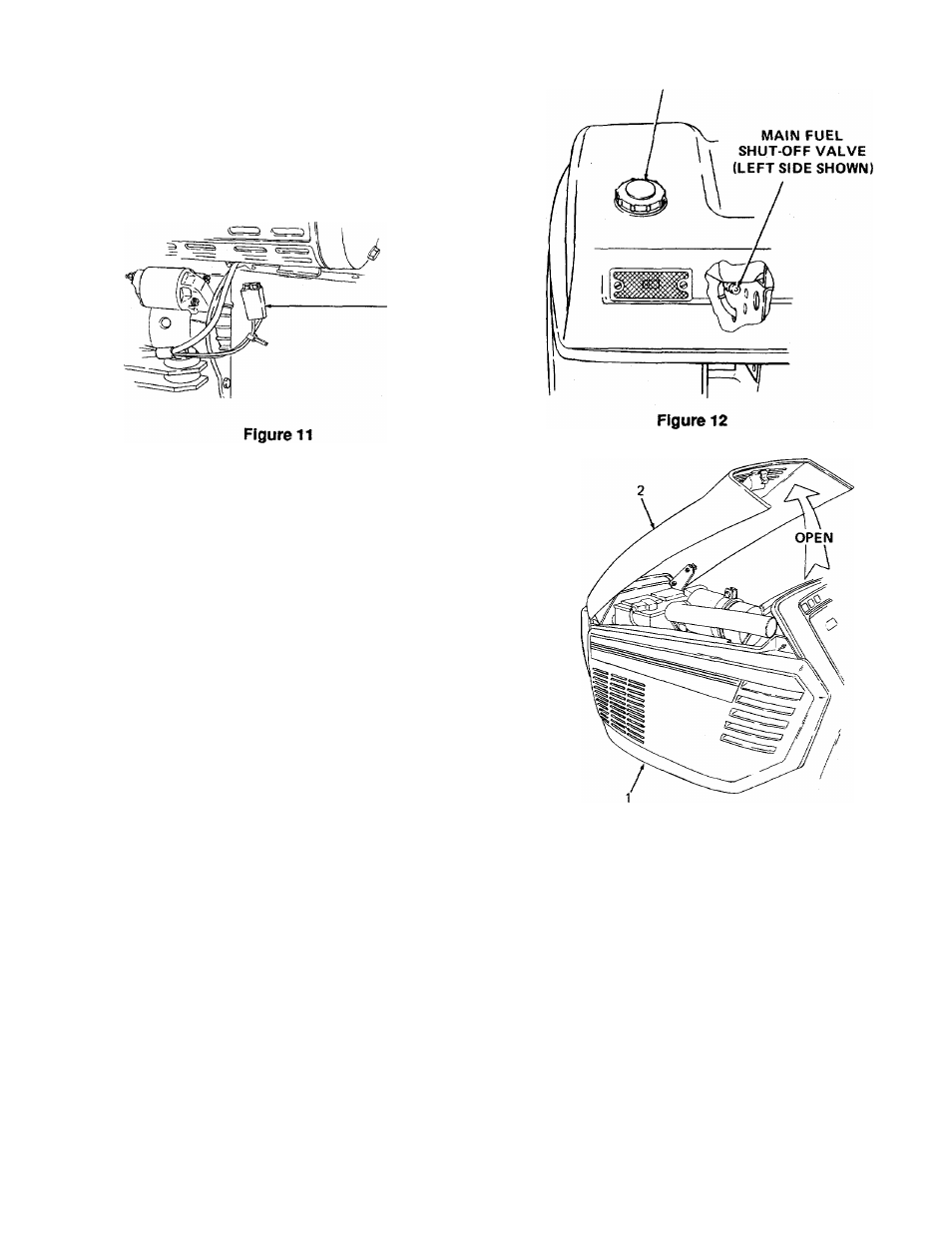

A fuse is located under the hood on the right side of
the battery tray. It is installed to protect the tractor’s
electrical circuitry and components from damage
caused by excessive amperage overload. (See Fig­
ure 11.) (Side panel removed for clarity.)
FUEL TANK FILLER CAP
FUSE
X. SAFETY INTERLOCK SWITCHES
The safety interlock system prevents the engine from
cranking or starting unless the single brake pedal is
fully depressed, and the PTO switch is in the "OFF"
position.
The safety interlock system will automatically shut off
the engine if the operator leaves the seat before
engaging the single pedal brake lock.
The safety interlock system will automatically disen­
gage the PTO if the operator leaves the seat with the
PTO in the "RUN" position, or the unit is shifted into
reverse with the PTO in the "RUN" position. To reen­
gage the PTO. place the speed control lever in neutral
("N"), move the PTO switch into the "OFF" position
and then engage the PTO while seated.
FUEL TANK
The fuel tank is located in the rear of the tractor. The
fuel tank filler cap is located on the left rear fender.
The main fuel shut-off valves are located on the bot­
tom (left and right sides) of the tank. These valves
control the flow of fuel to the engine. To open the
valves turn the knobs counterclockwise until they stop.
To close the valves turn the knobs clockwise until they
are tight. (See Figure 12.)
Figure 13
1. Side Panel (One On Each Side)
2. Hood
A
WARNING
To avoid burns from hot engine or muffler,
remove side panels only when engine is
cold.
HOOD AND SIDE PANELS
The tractor hood is arranged to swing up and forward
for easy access to the engine compartment. (See Fig­
ure 13.) Whenever engine maintenance is required,
the side panels can be removed.
To remove either right or left side panel, proceed as
follows:
1. Engage the single pedal brake lock. Raise the
hood. Refer to Figure 14 and at top rear of side
panel remove wing nut and flat washer.
