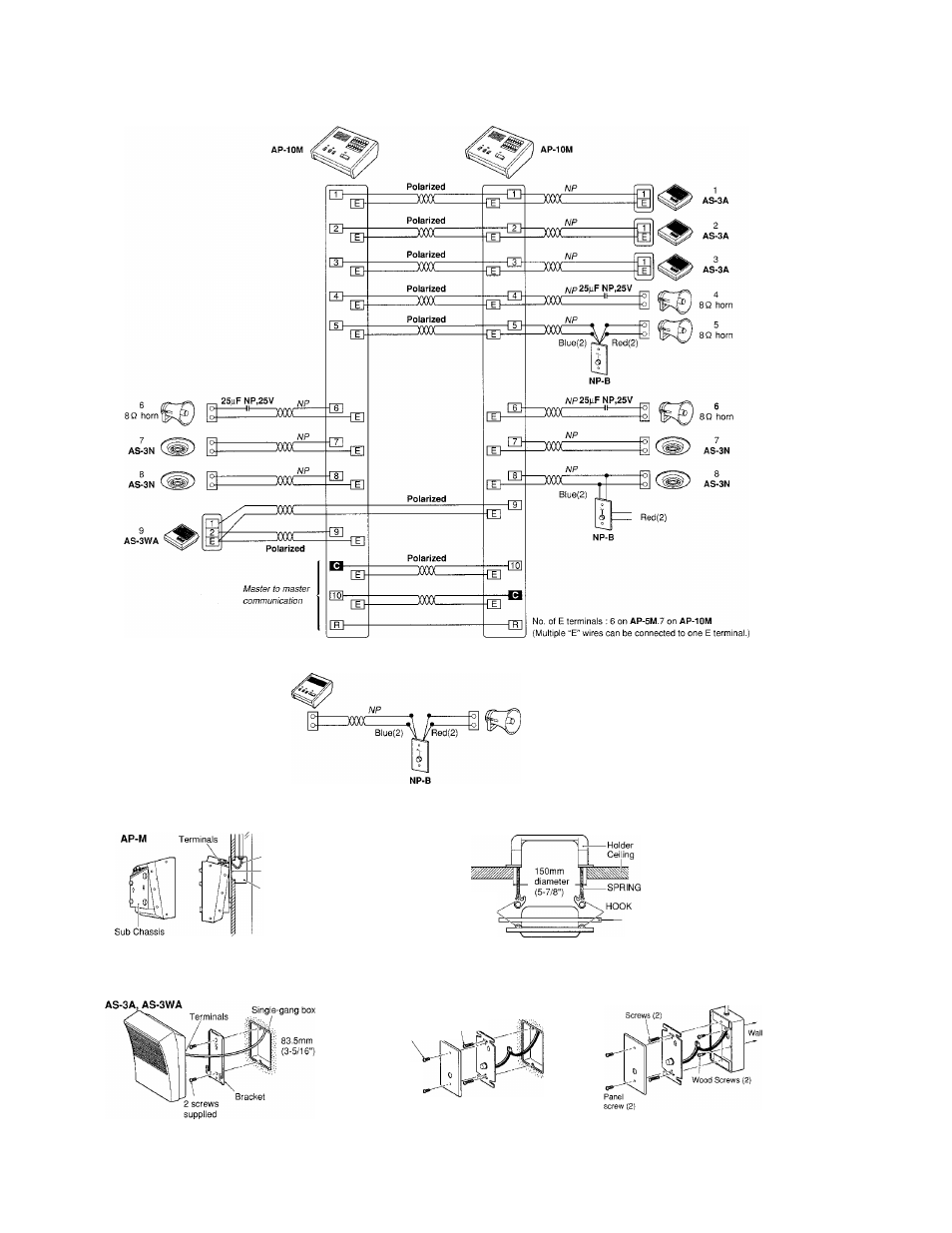

■ WIRING DIAGRAMS

• AP-5M, AP-10M

AP-1M

MOUNTING

, Cable

-Sub plate

''Gang Box

AP'M is designed for desk-top use. For wall-mounting,

install sub-chassis upside down.
Do not remove sub-chassis, which is necessary for heat
radiation. Use a sub-plate for mounting on box.

Attach the mounting bracket to box or wall. Mount the unit
on the bracket until it firmly locks.

AS-3N

HOOK

NBZ-M

FRAME

(attach to speaker)

Open a hole

SOmmo (5-7/8”0) in the ceiling.

(NBZ-M

square frame may be

attached from the back). Locate the holder on the ceiling, and mount AS-3N
with 2 hooks.
* For surface-mounting, use

N-EA

round frame.

NP-W

NP-B

Panel-
mounting Screws^)

screws (2)

Single-gang box

NP-B call switch flush-mounts to box, or surface-mounts on

NP-W

box.
