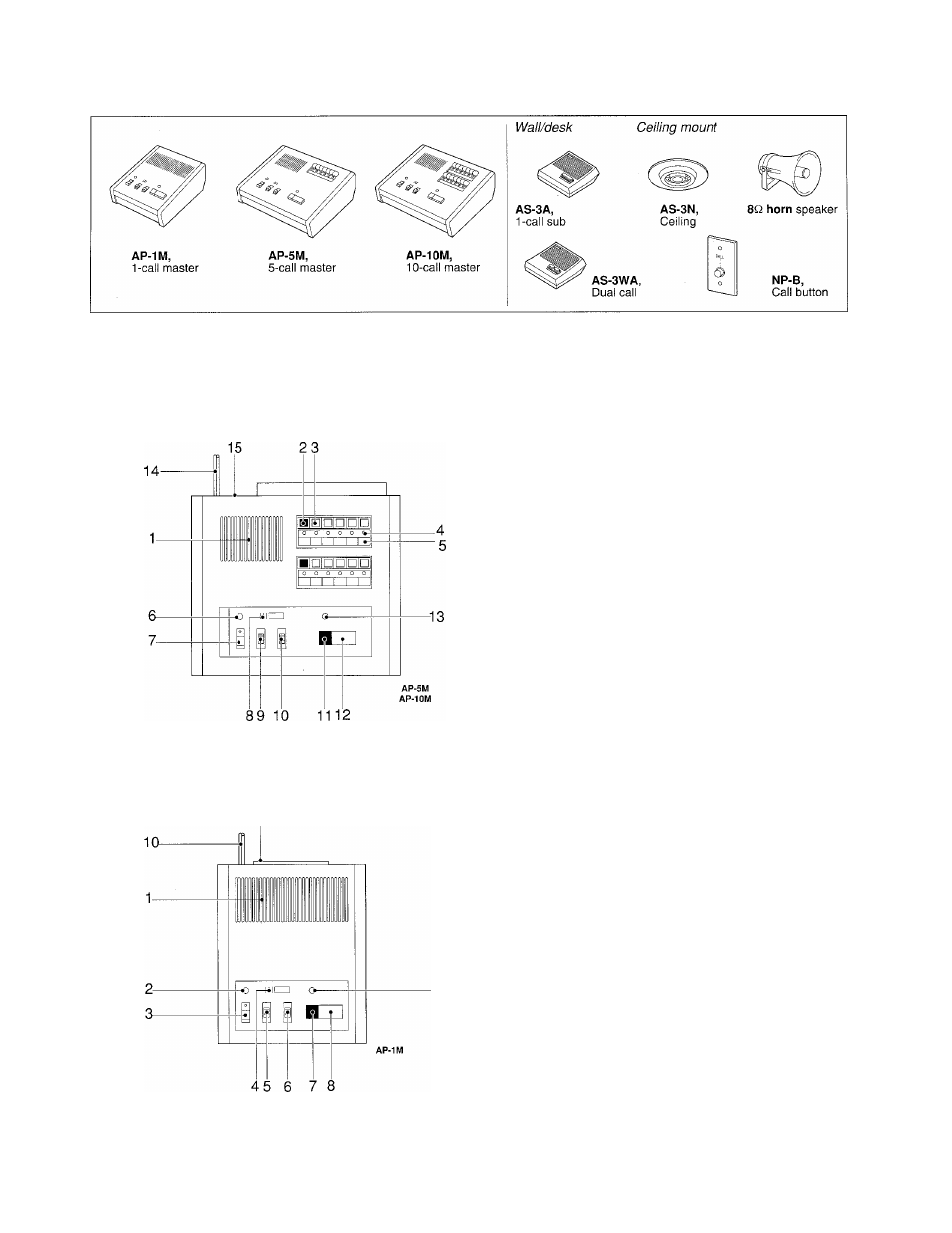

Components available
• Master stations
' Sub stations
Mounting accessories:
N-EA: Frame for AS-3N, ceiling surface-mount
NBZ-M: Ceiling flush-mount
NP-W: Surface-mount box for NP-B
NAMES AND FEATURES
Features
One or two master configuration
1,5, or 10-call master consoles
10 watt output
Desk/wall or ceiling subs available
11
1.
Speaker
2.
OFF button
3.
Station selector button
4.
Call-in LED
5.
Directory card
6.
Power on LED
7.
Power switch
8.
Mic.
9.
RECEIVE volume control
10. TRANSMIT volume control
11. Tone CALL button
12. TALK/LISTEN button
13. Occupied LED
14. AC cord/plug
15. Preset receive & transmit volume controls
★ AP-5M: Second switch bank is not included.
8Q horn speaker w/taikback
Separate transmit & receive volume controls
Group call (selectively up to 5 subs)
1
.
2
.
3.
4.
5.
6
.
7.
8.
9.
10
.
11
.
Speaker
Power on LED
Power switch
Mic.
RECEIVE volume control
TRANSMIT volume control
OFF button
TALK/LISTEN button
Communication LED
AC cord/plug
Preset receive & transmit volume controls
■ Features
Same features as on AP-10M, except for single sub call capability.
-
