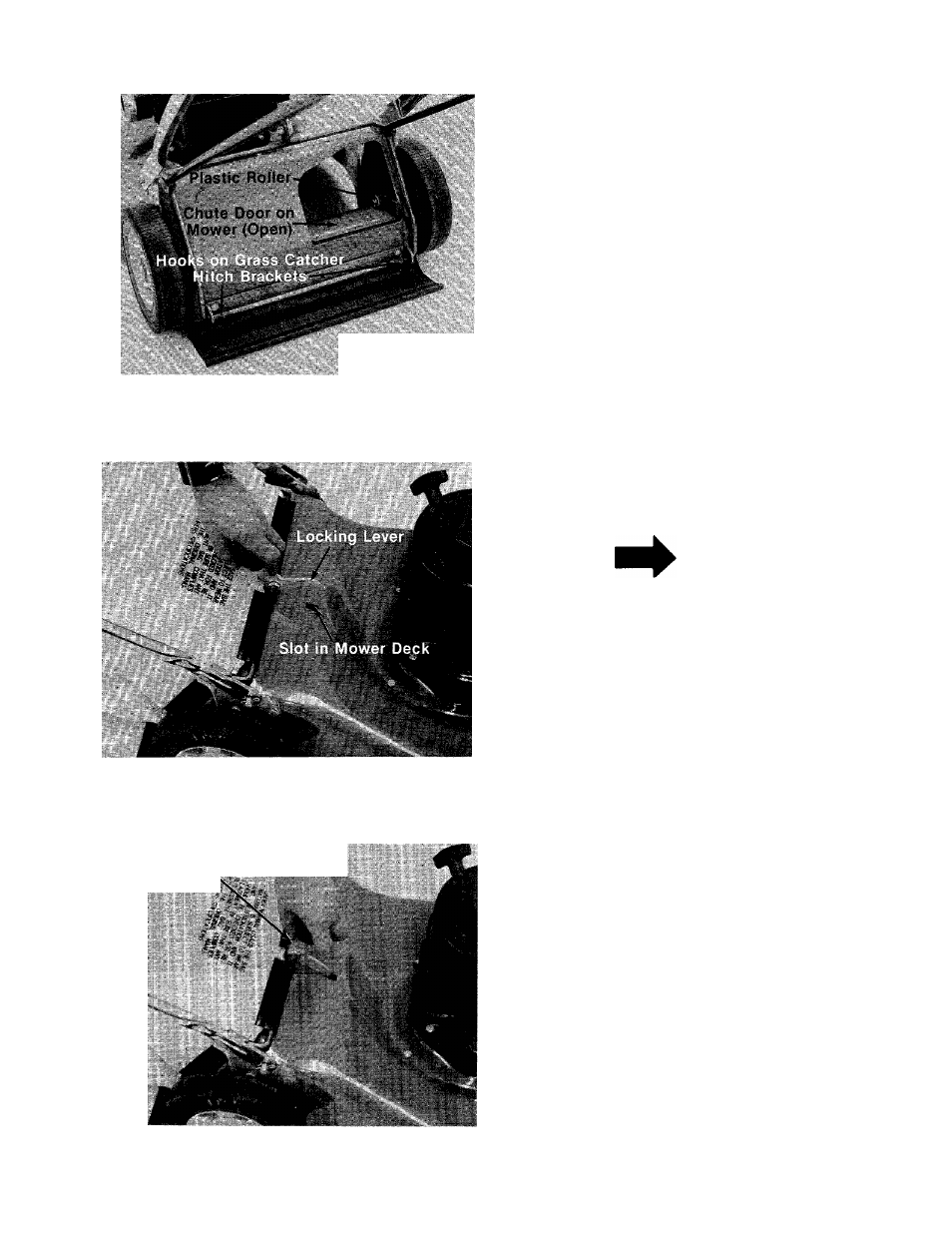

FIGURE 10.
Grass Catcher
Frame
TO ATTACH BAG
TO MOWER
I WARNING
\
DO NOT
operate the mower with the
chute door open unless the com
plete grass catcher is properly
mounted on the mower.
1. Attach the grass catcher frame to grass
catcher hitch bracket on rear of the mower by
hooking grass catcher into hooks on grass
catcher hitch bracket. See figure 10.
Lift the rear of grass catcher up. The roller on
the grass catcher will push the chute door on
the mower open. See figure 10.
2
.
NOTE
Figure 10 is shown with the chute
door open for photo clarity only.
3. Move the locking lever forward and hook In
slot on mower. See figures 11 and 12.
FIGURE11.
Locking Lever
yjtr
'
Locked in Slot on
Mower'
FIGURE 12.
