Lower
Handle
There are two height positions for the handle.
Place upper handle (with the clutch control at
tached) in position over lower handle, select
ing hole for either high or low position. Refer
to figure 24. Secure with two curved carriage
bolts (B) and hand knobs (A) as shown in
figure 4. The knobs can be either to the inside
ortheoutsideof the handle.

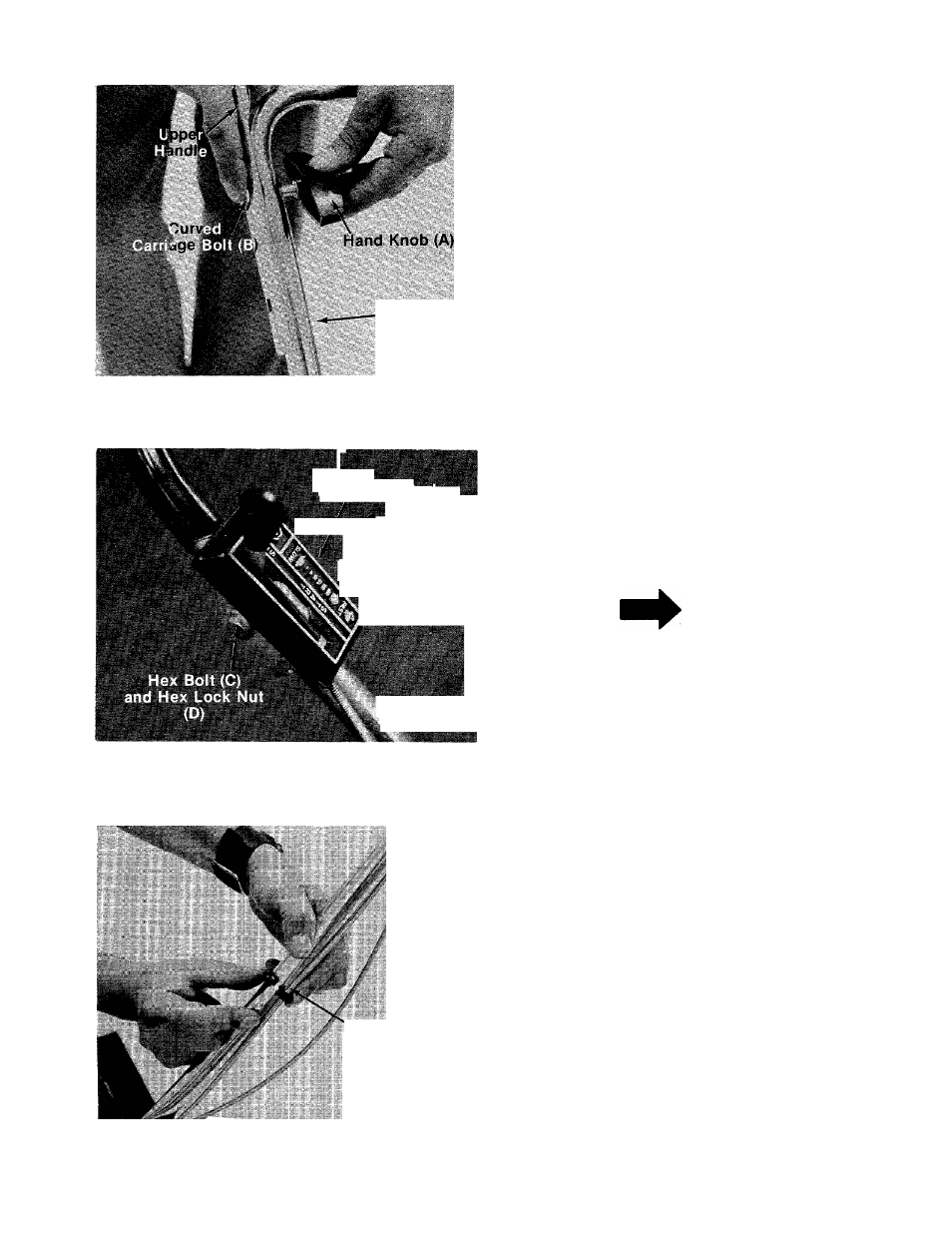

FIGURE 4.
■_ iiH
i ff.'i
/.-• * r-
Vu ?«■
5. Place the throttle control in position on the
left
hand side of upper handle. Secure with
hex bolt (C) and hex lock nut (D) provided. See
figures.
NOTE
Reference to left or right side of
machine is from operator’s position
at the handle facing forward.
FIGURES.
Cable
Tie (F)
6. Secure throttle control cable and clutch cable
__to handle with cable ties (F) provided. See
figures.
7. Check
all
nuts and bolts for correct tightness.
FIGURES.
