Page 6

Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".

r^.

Upper Frame

----- Lower Frame Ass

Grass Bag

ASSEMBLY

Grass Catcher

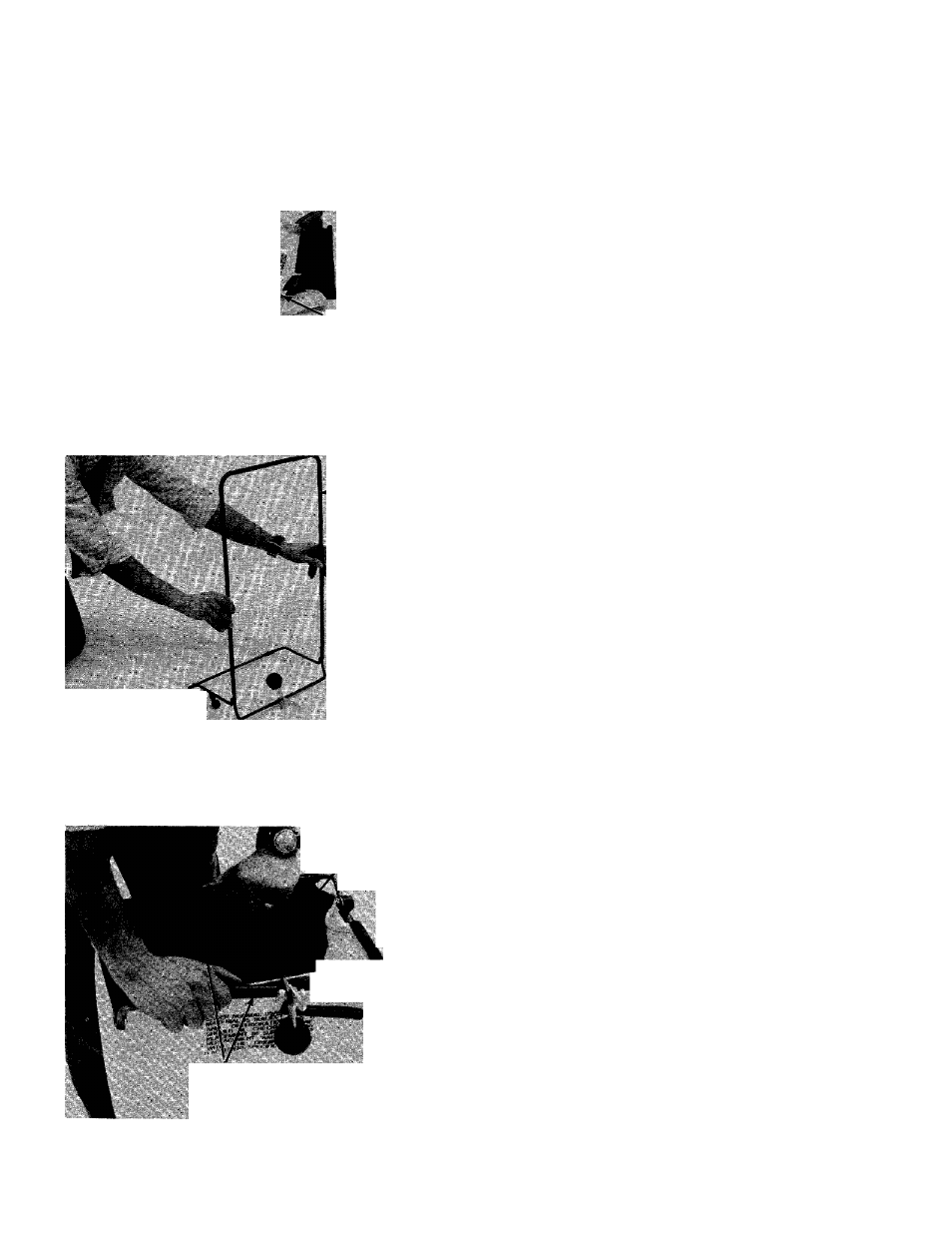

.The grass catcher is partially assembled. See

figure 7.

FIGURE 7.

Lower Frame/

Assembly '

FIGURE 8.

.Upper

Frame

1. Place the upper frame over the lower frame

assembly as shown in figure 8.

Bottom of Bag

Frame

Plastic Channels

2. Place bag over frame (black plastic side is the

bottom of bag). Upper frame goes to the top of
bag.

3. Secure bag to frame by slipping plastic chan

nels on bag over frame. See figure 9.

FIGURE 9.
