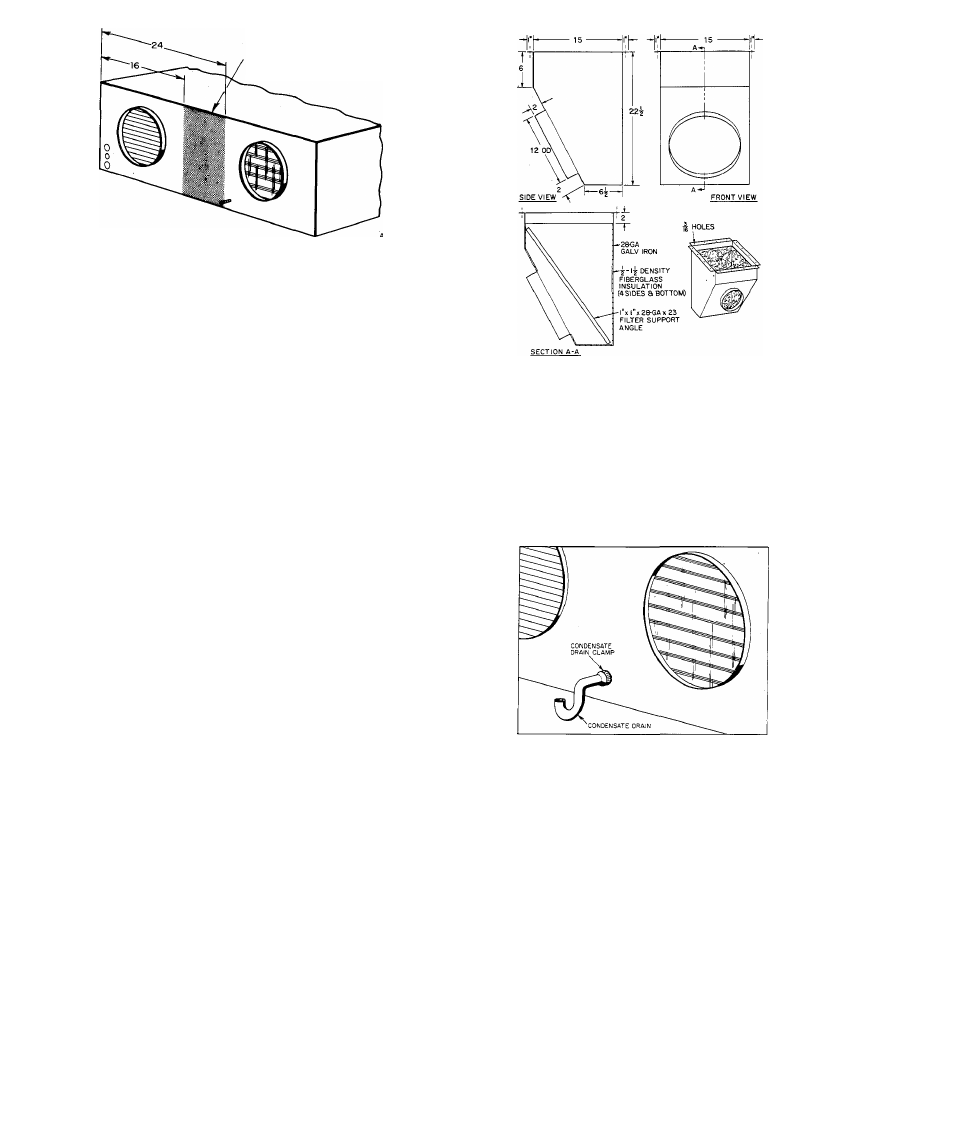

background image

DO NOT DRILL HOLES IN SHADED

AREA WHEN INSTALUNG

RECTANGULAR DUCTS

Figure 5

of 6 ft and minimum return duct length of 3 ft. Do not

operate unit longer than 5 minutes without ductwork.

Refer to Bryant Air Distribution Manual, Part 2, for air

duct design.

Flanges are provided on unit for duct connections. See

Figure 2 for connection sizes and Figure 3 for typical duct

installation.

Supply Air Connection in Mobile Home

Connect flexible duct to unit supply air connection at ap­

proximate center of trailer. Install turning vanes in main

supply duct directly above elbow connection, using stan­

dard sheet metal practices.

Return Air Connection in Mobile Home

Purchase or field-fabricate a filter box. Suggested minimum

filter box dimensions are shown in Figure 6. At ap­

proximate center of trailer, cut a return air opening in floor.

Locate opening where it will not be obstructed by furniture.

Size opening to accept filter box. Cut a hole in carpet or

floor covering to sarne size as filter box floor opening. En­

sure electrical wiring or main structural supports are not

accidentally cut. Insert filter box thru floor opening.

Weather-seal floor connection in accordance with good con­

struction practice. Insert filter in filter box, and cover with

return air grille.

Connect flexible duct to filter box. Extend duct from filter

box to unit return air connection. When existing furnace is

kept in system: During heating season, insert sheet metal

panel beneath return air grille and over filter to prevent air

movement thru cooling unit.

When furnace is removed from system, blank-off original

furnace floor connection.

III. CONNECTING CONDENSATE DRAIN

The unit is designed to dispose of accumulated water

through condensate drain hose on unit. It is recommended

that a drain line that includes a trap should be installed to

avoid possibility of abnormal negative fan pressure preven­

ting complete drainage of condensate. If drain connection is

not practical or feasible, a factory-supplied condensate trap

(taped at supply duct connection) must be installed for

proper drainage. See Figure 7.

IV. ELECTRICAL CONNECTIONS

Field wiring must comply with National Electrical Code

and local codes. Install a branch circuit fused disconnect of

adequate size to handle unit current load. Provide separate

fused disconnect for electric heaters.

Voltage to unit during operation must be within ±10% of

voltage indicated on rating plate.

W.-VRNI.N'Ci:

Failure berause of operation of unit on im­

proper line voltage constitutes abuse and is not coveretl by

Brvant warr.mtv.

Figure 6 — Minimum Dimensions-Return

Air Filter Box

Connect line-power leads from fused disconnect(s) to line

power leads located in junction box. Screw connectors,

which are suitable for aluminum or copper wires, are

provided. See Figures 8 and 9. Tape screw connectors after

connections are completed. Table I is provided to assist in­

staller in selecting proper wire and fuse sizes.

Thermostat connections are made to color-coded wires

located in junction box. See Figures 8 and 9. Be sure color-

coded wires not used are adequately and individually taped

at end.

Rgure 7 —Condensate Drain Connection

NOTE: When using Model 883 (P/N 34427D03O) ther­

mostat with optional electric heat package, W and J ter­

minals on thermostat must be jumpered to ensure fan

operation when thermostat is in HEAT position.

V. STARTUP AND ADJUSTMENT

Before starting system, make an initial overall inspection.

1. Check to be sure all wiring connections, including fac­

tory connections, have been completed and are tight.

2. Inspect all supply ducts and grilles to ensure proper

adjustment.

3. Check to ensure air filters are in place.

4. Inspect refrigerant piping for damage or leaks that

might have occurred during shipment.

5. Check for correct position of condenser fan blade in fan

orifice plate. See Figure 4 for setting.

6. Check to ensure all tools and loose parts have been

removed.

7. Check to ensure all panels and covers are in place.

Following initial inspection, unit may be started and ad-

-

4

-
