Data Retention and Endurance
Parameter Description Min Unit
DATA
R
Data Retention 100 Years
NV
C
Nonvolatile STORE Operations 1,000 K
Capacitance
In the following table, the capacitance parameters are listed.
[8]
Parameter Description Test Conditions Max Unit
C
IN
Input Capacitance T
A
= 25
°C, f = 1 MHz,
V
CC
= 0 to 3.0 V
5 pF
C
OUT
Output Capacitance 7 pF
Thermal Resistance
In the following table, the thermal resistance parameters are listed.
[8]
Parameter Description Test Conditions 32-SOIC 32-PDIP Unit
Θ
JA
Thermal Resistance
(Junction to Ambient) Test conditions follow standard test methods and
procedures for measuring thermal impedance, per
EIA / JESD51. TBD TBD
°C/W
Θ
JC
Thermal Resistance
(Junction to Case) TBD TBD
°C/W

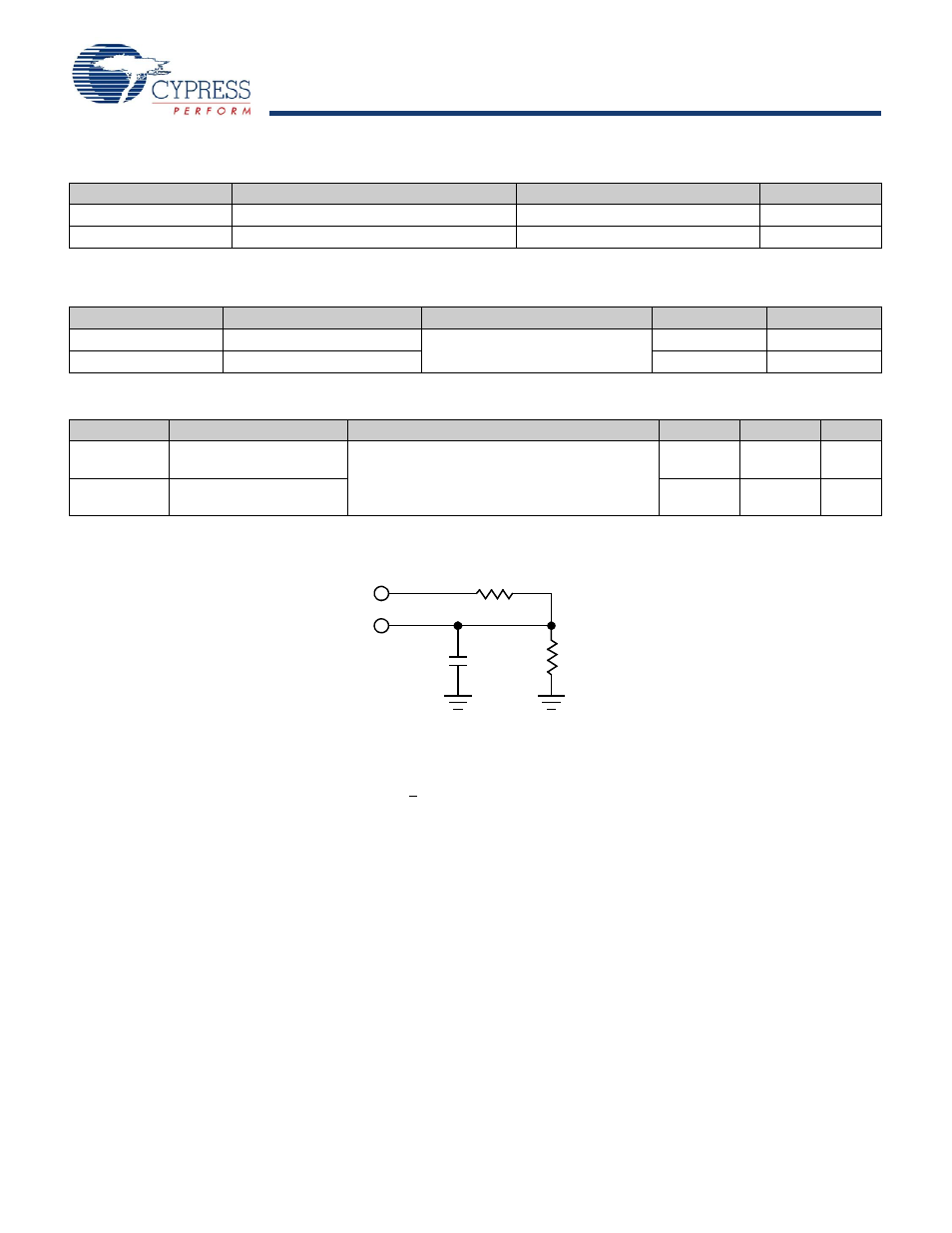

Figure 6. AC Test Loads
AC Test Conditions
3.3V
Output
30 pF
R1 317
Ω
R2
351
Ω
Input Pulse Levels .................................................. 0 V to 3 V
Input Rise and Fall Times (10% - 90%)........................ <5 ns
Input and Output Timing Reference Levels ................... 1.5 V
Note
8. These parameters are guaranteed by design and are not tested.
