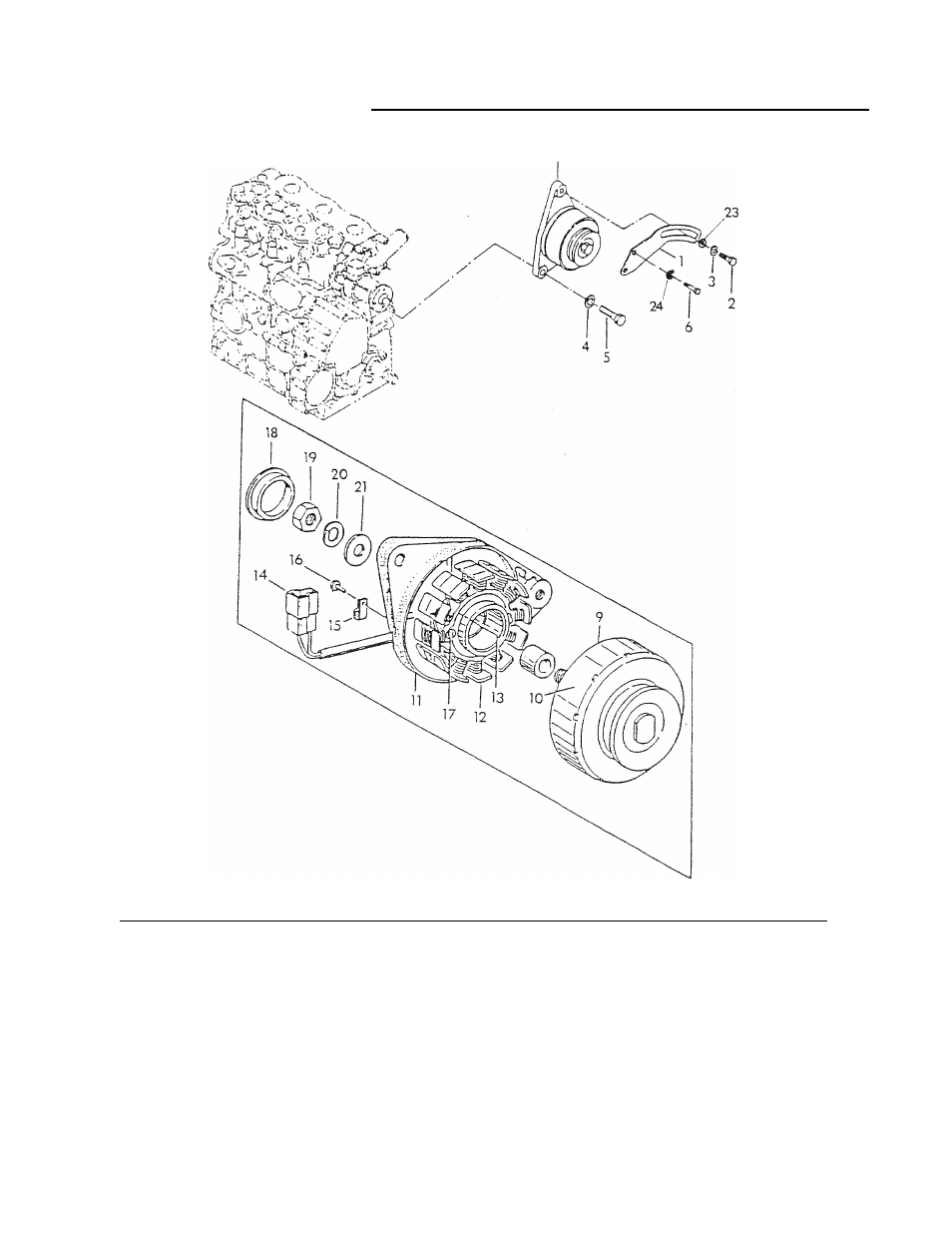

_________________ EXPLODED VIEW — D-C ALTERNATOR

Drawing No. 75685

ITEM PART NO.

QTY.

DESCRIPTION

ITEM

PART NO.

QTY.

DESCRIPTION

1

77909

1

Adjusting Plate

13

349-70939

1

Bearing

2

74829

1

M8-1.25

X

30mm Bolt 14

352-70939

1

Coupler

3

72545

1

Lock Washer

15

353-70939

1

Clamp

4

74007

1

M10 Flat Washer

16

354-70939

1

Screw

5

74069

1

Ml 0-1.5

X

40mm Capscrew

17

355-70939

2

Screw

6

51753

2

M6-1.0

X

40mm Bolt

18

350-70939

1

Cap

8

277-70939

1

Alternator Assembly 19

351-70939

1

Nut

9

345-70939

1

Flywheel

20

137-70939

1

Lock Washer

10

349-70939

1

Bearing

21

280-70939

1

Washer

11

346-70939

1

Plate Assembly

22

356-70939

1

Collar

12

348-70939

1

Stator

23

74827

1

M8 Flat Washer

24

70005

2

M6 Lock Washer

-31

-
