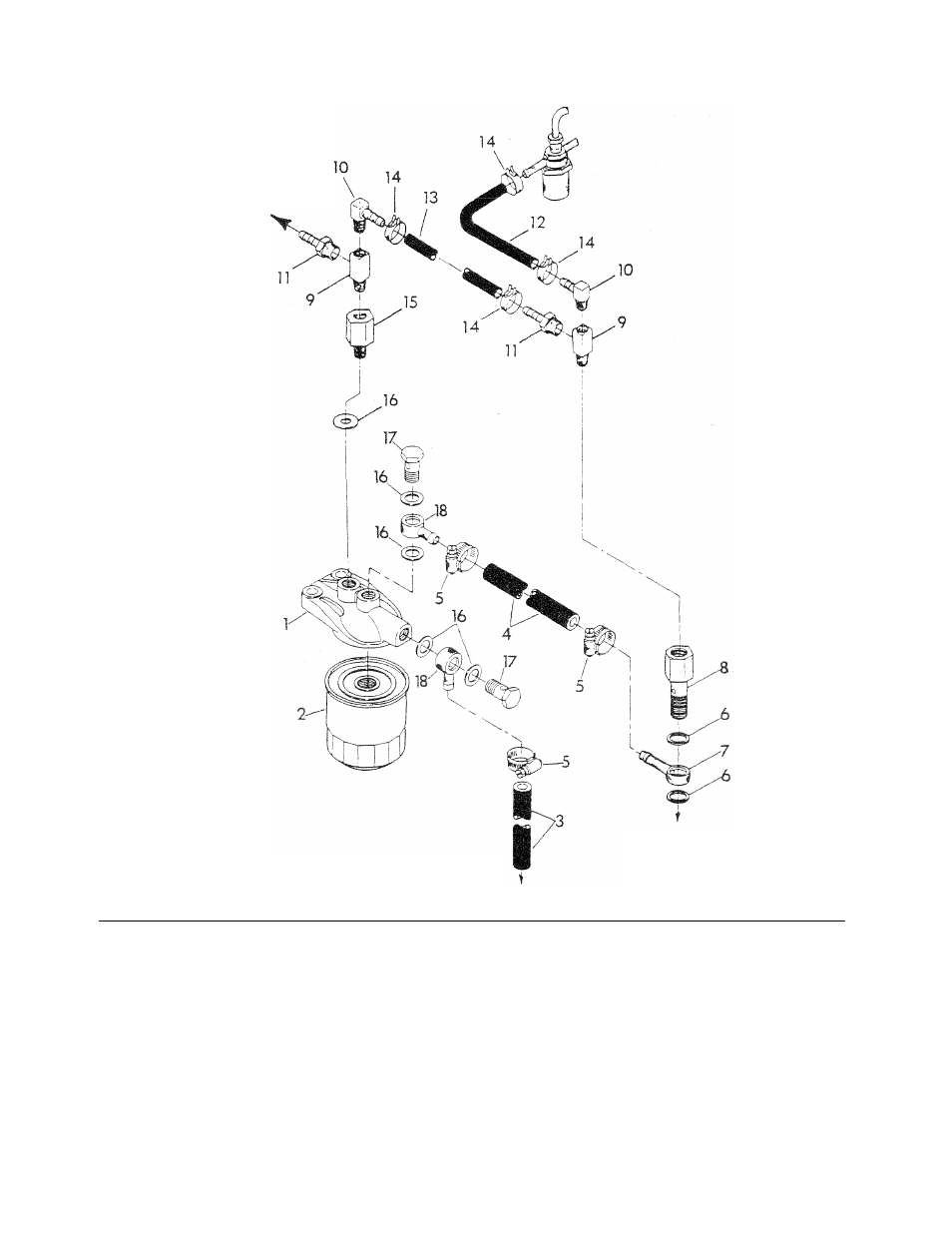

EXPLODED VIEW — FUEL SUPPLY
Drawing No. 75693
TO FUEL TANK
TO INJUCTION PUMP
TO FUEL FtiMP
ITEM
PART NO.
QTY. DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
661-70939
1
Fuel Filter Support
11
30096
2
1/8" NPT
X
3/16" Barbed
2
69858
1
Fuel Filter
Straight Fitting
3
47290
1
3/8“ dia.
X
12-1/2" Hose12
68736
1
3/16" dia.
X
1/2" Hose
4
52221
1
5/16" dia.
X
6-1/2" Hose13
68736
1
3/16" dia.
X
7-3/4" Hose
5
40173
4
No. 5.5 Hose Clamp 14
74823
4
Clamp
6
378-70939
2
Gasket
15
74819
1
Fuel Bleed Fitting
7
379-70939
1
Banjo Fitting
16
651-70939
5
Fuel Bleed Gasket
8
74808
1
Fuel Bleed Fitting
17
662-70939
2
Hollow Bolt
9
52233
2
1/8" NPT Tee (brass)18
663-70939
2
Banjo Type Fitting
10
39450
2
1/8" NPT
X
3/16“ 90-degree
Barbed Fitting
-
26
