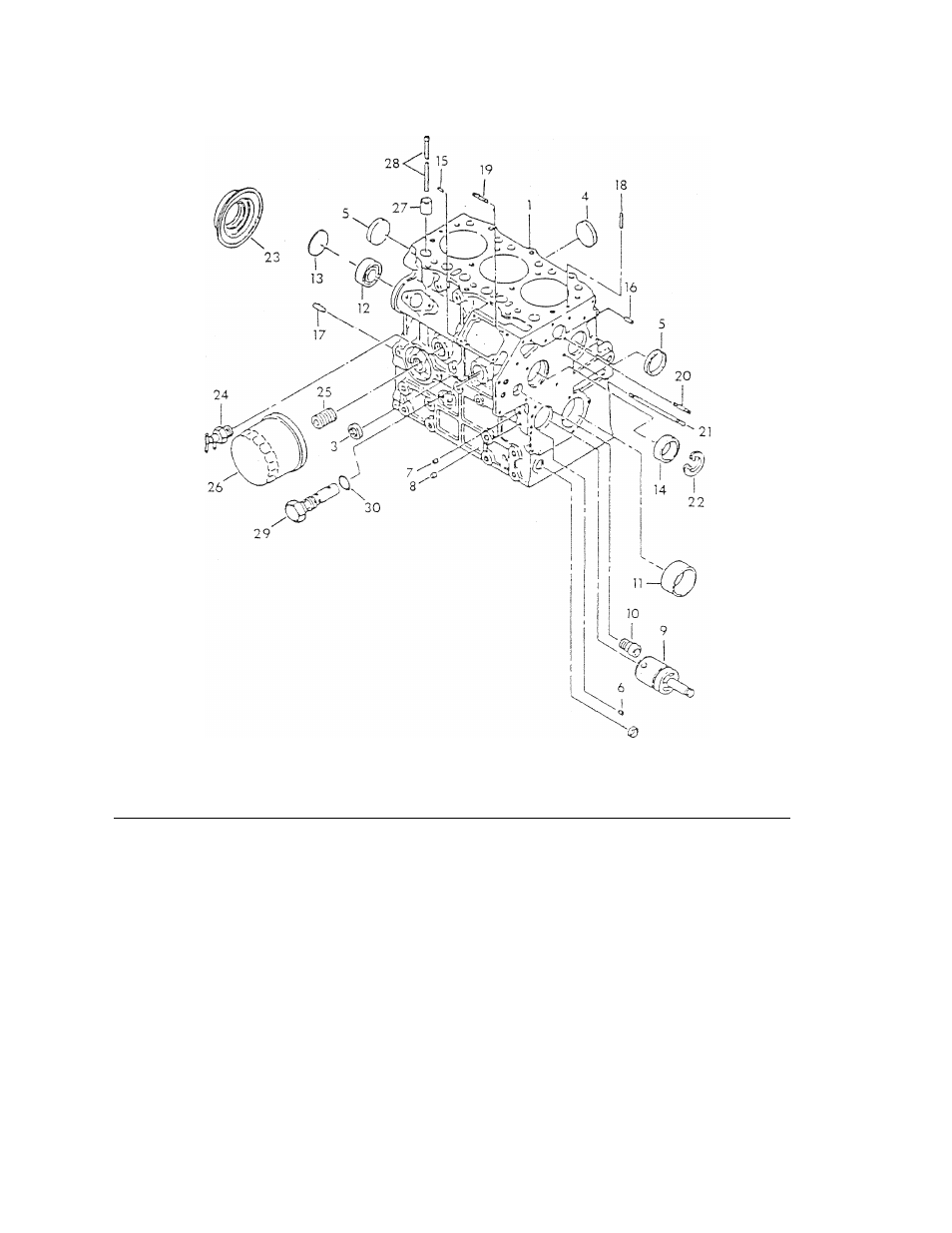

EXPLODED VIEW — CYLINDER BLOCK
Drawing No. 75676
ITEM PART NO.
QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTK
1
100-70939
1
Complete Cylinder Block
17
117-70939
2
Dowel Pin
2
447-70939
1
Expansion Plug
18
118-70939
2
Spring Pin
3
101-70939
1
Expansion Plug
19
119-70939
2
Stud
4
102-70939
2
Expansion Plug
20
120-70939
1
Stud
5
103-70939
2
Expansion Plug
21
121-70939
1
Stud
6
104-70939
1
Expansion Plug
22
131-70939
1
Snap Ring
7
105-70939
4
Plug
23
123-70939
1
Oil Seat
8
106-70939
4
Plug
24
124-70939
1
Drain Cock
9
107-70939
1
Idle Gear Shari
25
125-70939
1
Connector
10
108-70939
1
Bushing
26
126-70939
1
Oil Filter
11
109-70939
1
Bushing — Standard 27
127-70939
6
Tappet
110-70939
1
0.25mm U.S. Bushing28
128-70939
6
Push Rod
111-70939
1
0.50mm U.S.Bushing29
129-70939
1
Relief Valve
12
112-70939
1
Ball Bearing
30
130-70939
1
0-ring
13
113-70939
1
Expansion Plug
14
114-70939
1
Ball Bearing
mm = millimeter
15
115-70939
2
Dowel Pin
U.S. = Undersize
16
116-70939
2
Dowel Pin
- 2i
