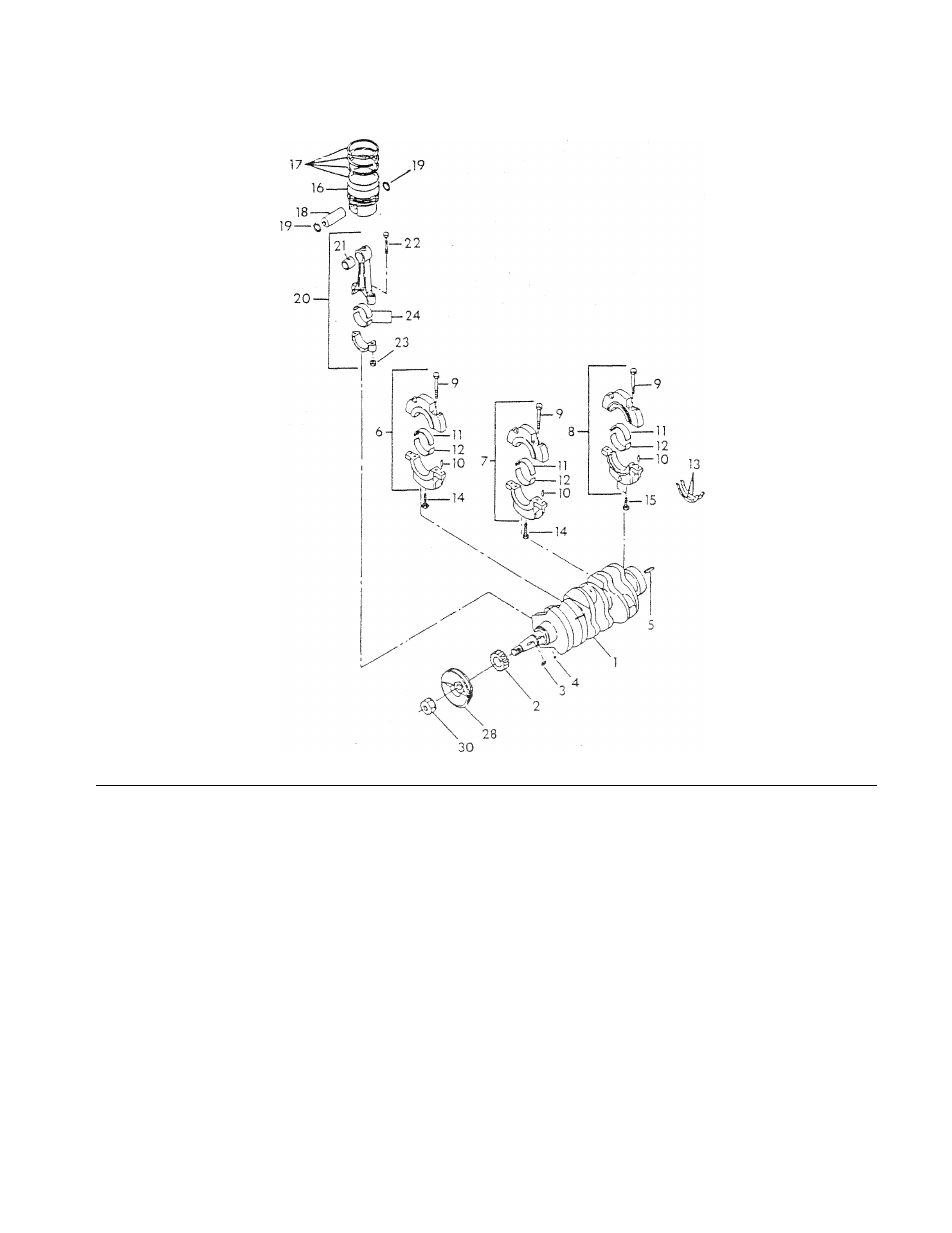

EXPLODED VIEW — CRANKSHAFT, PISTON & FLYWHEEL
Drawing No. 75679
ITEM
PART NO. QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
143-70939
1
Crankshaft
Assembly
16
214-70939
3
Standard Piston Assembly
2
194-70939
1
Crankshaft Gear
215-70939
AR
Piston Assembly - 0.5mm O.S
3
195-70939
1
Key
216-70939
AR
Piston Assembly - 1.0mm O.S
4
196-70939
1
Dowel Pin
17
211-70939
3
Standard Piston Ring Set
5
226-70939
1
Spring Pin
212-70939
AR
Piston Ring Set - 0.5mm O.S.
6
197-70939
1
Bearing Holder
213-70939
AR
Piston Ring Set - 1.0mm O.S.
7
200-70939
1
Bearing Holder
18
217-70939
3
Piston Pin
8.
201-70939
1
Bearing Holder
19
218-70939
6
Snap Ring
9
198-70939
6
Bolt
20
219-70939
3
Connection Rod Assembly
10
199-70939
6
Dowel Pin
21
220-70939
3
Bushing
11
202-70939
3
Standard Bearing
22
221-70939
6
Connecting Rod Bolt
203-70939
AR
0.25mm U.S. Bearing23
222-70939
6
Nut, Connecting Rod Bolt
204-70939
AR
0.50mm U.S. Bearing24
223-70939
6
Standard Bearing
12
205-70939
3
Standard Bearing
224-70939
AR
Bearing — 0.25mm U.S.
206-70939
AR
0.25mm U.S. Bearing
225-70939
AR
Bearing —0.50mm U.S.
207-70939
AR
0.50mm U.S. Bearing28
230-70939
1
Pulley
13
208-70939
2
Thrust Washer
30
231-70939
1
Nut
14
204-70939
2
Bolt
15
210-70939
1
Bolt
U.S. — UNDERSIZE
O.S .— OVERSIZE
-
