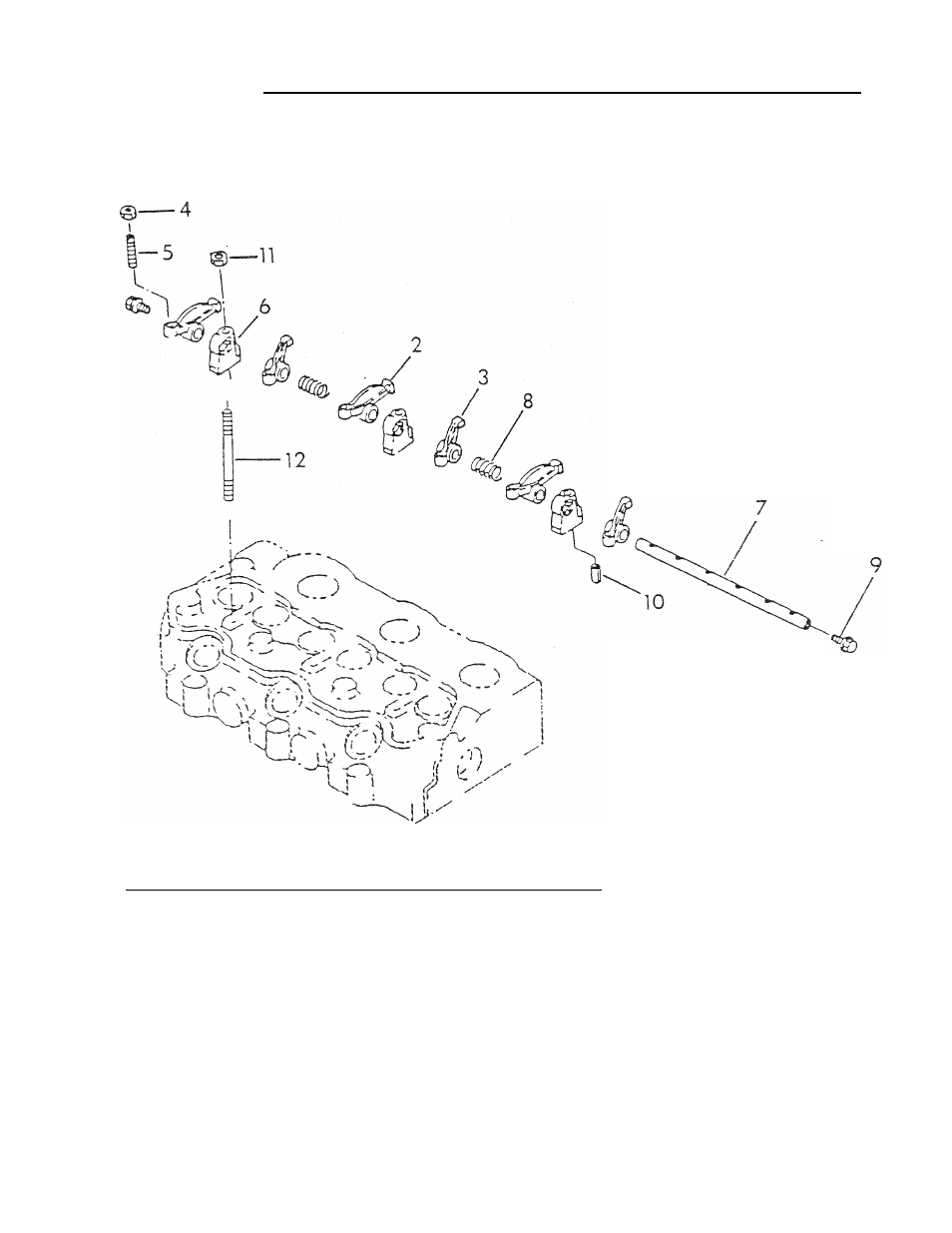

__________ EXPLODED VIEW — ROCKER ARM ASSEMBLY

Drawing No. 75683

ITEM PART NO.

QTY.

DESCRIPTION

1

170-70939

1

Rocker Arm Assembiy

2

171-70939

3

intake Rocker Arm

3

172-70939

3

Exhaust Rocker Arm

4

174-70939

6

Nut

5

173-70939

6

Stud

6

175-70939

3

Rocker Arm Bracket

7

176-70939

1

Rocker Arm Shaft

8

177-70939

2

Spring

9

178-70939

2

Screw

10

179-70939

1

Spring Pin

11

180-70939

3

Nut

12

181-70939

3

Stud
