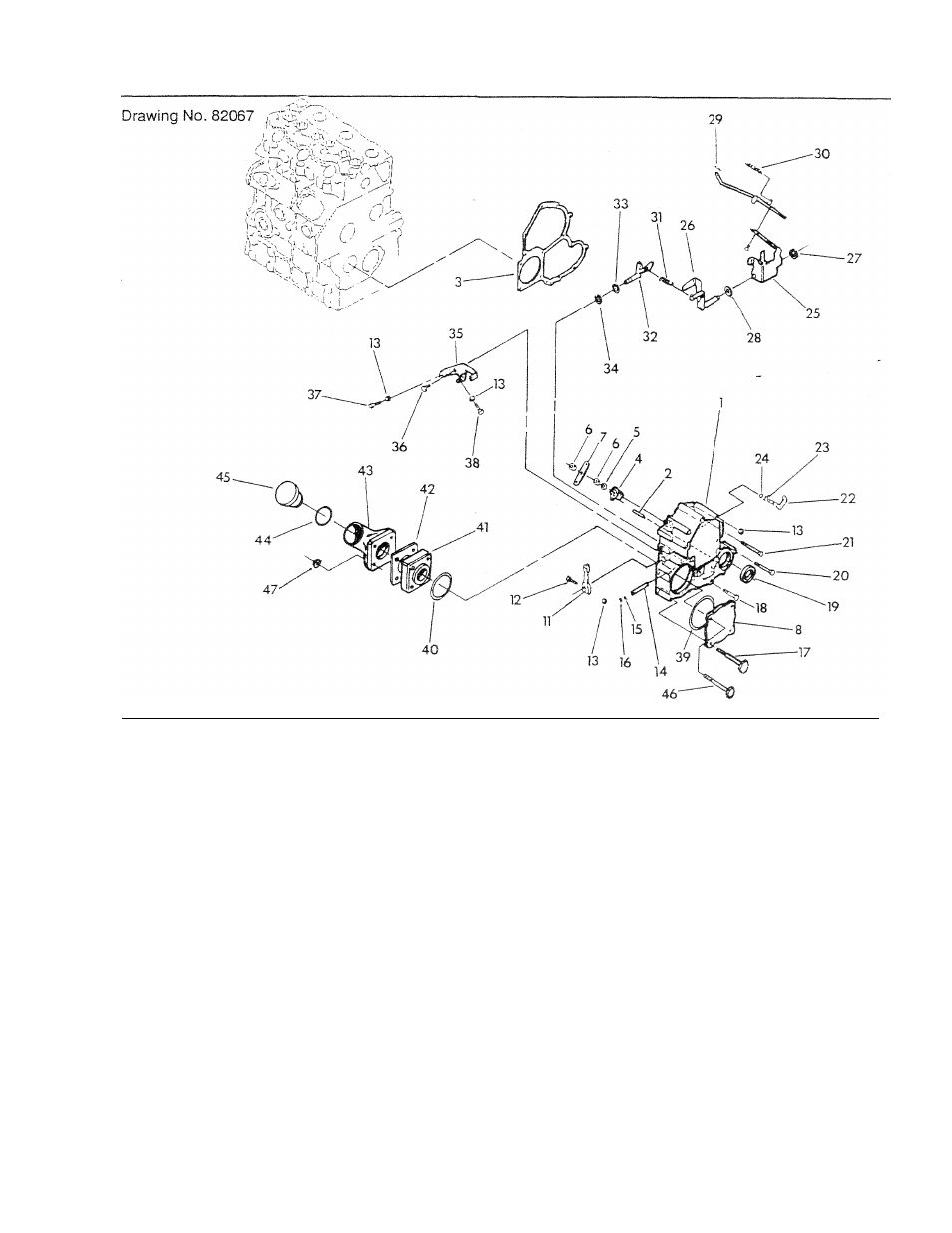

EXPLODED VIEW — TIMING GEAR HOUSING AND GOVERNOR
iTEM
PART MO. QTY.
DESCRIPTION
ITEM
PART NO.
QTY.
DESCRIPTION
1
285-70939
1
Timing Gear Housing25
289-70939
1
Governor Lever Assembly
2
286-70939
1
Spring Pin
26
290-70939
1
Tension Lever
3
287-70939
1
Gasket
27
291-70939
1
Snap Ring
4
307-70939
1
Spring
28
136-70939
1
Washer
5
308-70939
1
Washer
29
292-70939
1
Cotter Pin
6
309-70939
2
Nut
30
313-70939
1
Spring
7
310-70939
1
Stop Lever
31
293-70939
1
Spring
8
314-70939
2
Cover
32
294-70939
1
Arm
9
315-70939
1
Gasket
33
295-70939 1
0-Ring
10
180-70939
4
Nut
34
291-70939
1
Snap Ring
11
296-70939
1
Governor Lever
35
302-70939
1
Bracket
12
297-70939
1
Bolt
36
271-70939
3
Boit
13
298-70939
4
Nut
37
303-70939
2
Bolt
14
299-70939
1
Shaft
38
71944
1
Screw
15
300-70939
1
0-Ring
39
660-70939
1
0-Ring
16
301-70939
1
Snap Ring
40
534-70939
1
0-Ring
17
540-70939
3
Bolt
41
535-70939
1
Spacer
18
282-70939
5
Bolt
42
536-70939
1
Gasket
19
288-70939
1
Oil Seal
43
537-70939
1
Holder
20
274-70939
4
Bolt
44
539-70939
1
0-Ring
21
311-70939
5
Bolt
45
188-70939
1
Cap
22
304-70939
1
Arm
46
541-70939
1
Bolt
23
305-70939
1
Snap Ring
47
538-70939
3
Nut
24
306-70939
1
0-Ring
