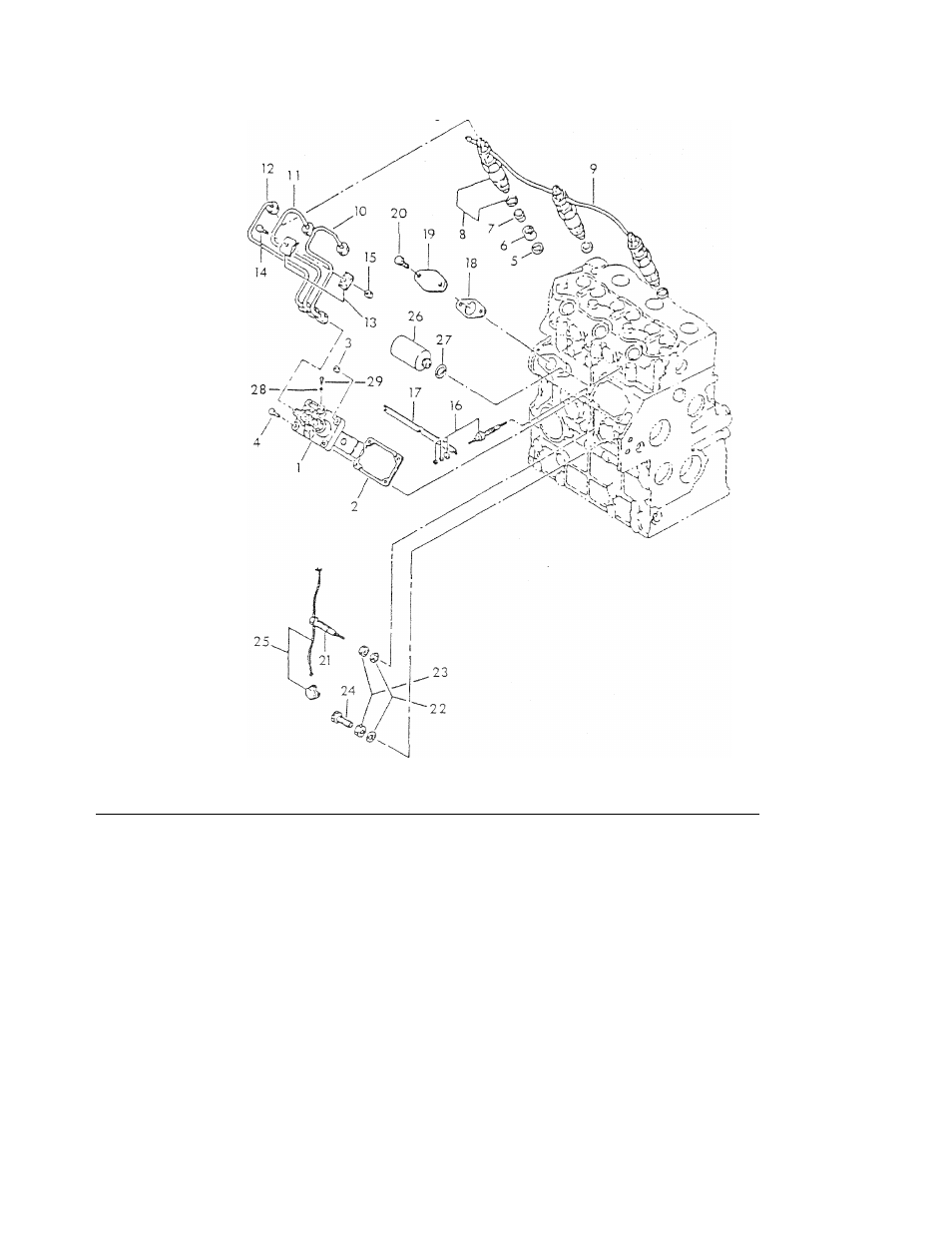

EXPLODED VIEW — INJECTOR PUMP
Drawing No. 75686
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPT
1 316-70939 1 Injector Pump Assembly 15 298-70939
1
Nut
2
317-70939 AR 0.2mm Shim
16
332-70939 3 Glow Plug
318-70939
AR
0.3mm Shim 17 333-70939
1
Connector
319-70939
AR
0.5mm Shim 18 334-70939
1
Gasket
320-70939
AR
1.0mm Shim 19 335-70939
1
Cover
3 298-70939 2 Nut
20
264-70939
2
Bolt
4
321-70939 2 Bolt
21
336-70939
1
Sensor
5
322-70939 3 Gasket 22 337-70939
2
Washer
6
323-70939 3 Insert 23 338-70939
2
Nut
7 324-70939 3
Cap
24 339-70939 1 Bolt
8 325-70939 3 Injector 25 240-70939 1 Lock Wire
9 326-70939 1 Tubing 26 341-70939
1
Solenoid
10 327-70939
1
Tubing 27 342-70939
1
Washer
11 328-70939 1 Tubing 28 343-70939 1 Washer
12 329-70939
1
Tubing 29 344-70939
1
Screw
13 330-70939 1 Clamp
14
331-70939
1
Bolt AR — AS REQUIRED
28
