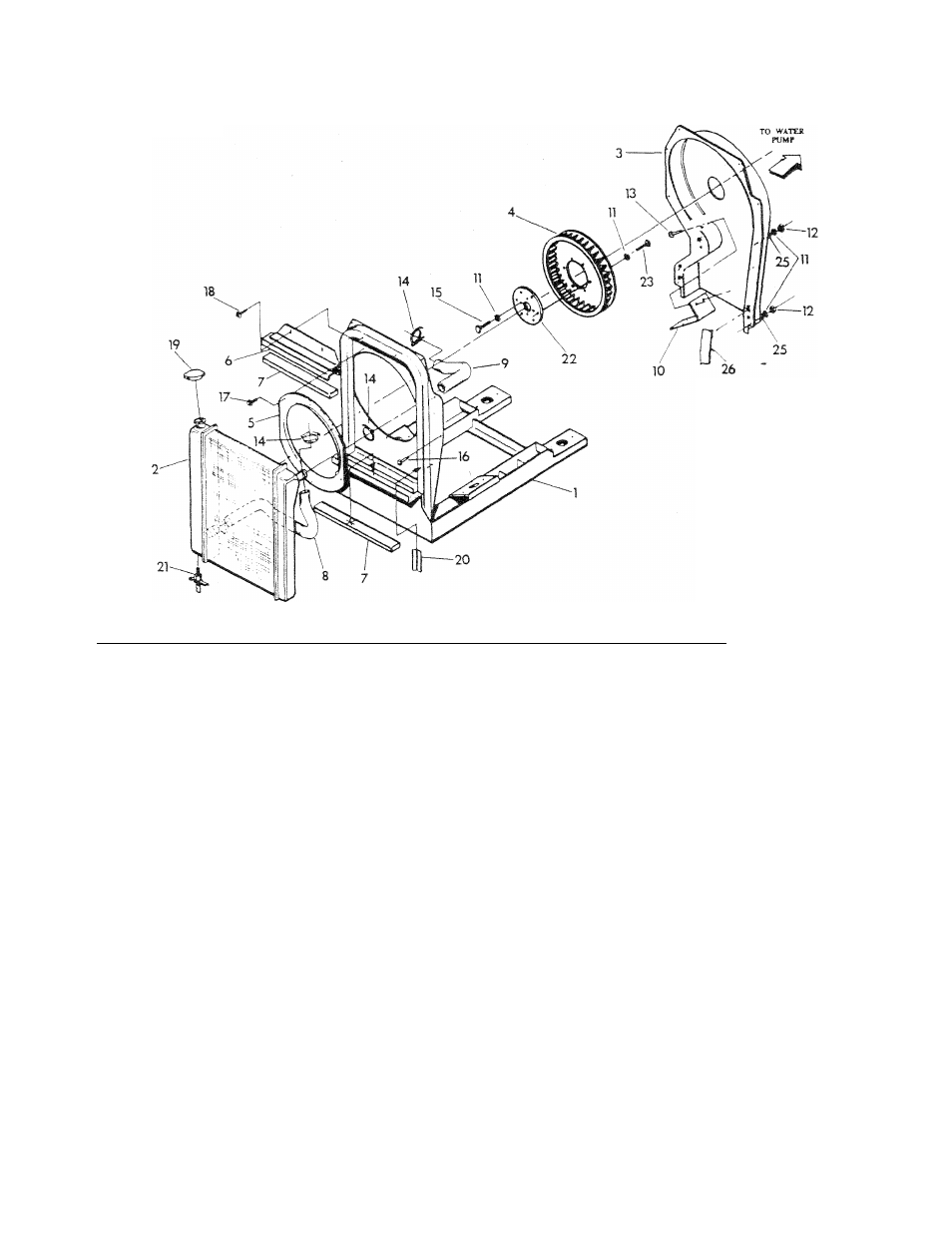

EXPLODED VIEW — RADIATOR
Drawing No. 83294
• INDICATES
UK'
a
TION
of
WELD STUDS
ITEM
PART NO.
QTY.
DESCRIPTION
1
83098
1
ASSEMBLY, BASE
2
83057
1
RADIATOR, CROSS FLOW
3
80245
1
BLOWER HOUSING
4
81905
1
FAN, ENGINE
5
82603
1
RING, FAN INLET
6
83058
1
BRACKET, RADIATOR MOUNTING
7
81977-A
2
FOAM PAD
8
81947
1
HOSE, LOWER RADIATOR
9
81946
1
HOSE, UPPER RADIATOR
10
82605
1
PLATE, BLOWER HOUSING
11
22097
15
LOCK WASHER - M6
12
49813
11
NUT, HEX-M6-1.0
13
66831
2
RIVET, POP
14
35586
4
CLAMP (WORM TYPE)
15
45757
4
CAPSCREW, HEX HEAD - M6-1.0 x 25mm
16
42568
7
CAPSCREW, HEX HEAD - M6-1.0 x 20mm
17
56892
6
CRIMPTITE, No. 10-32 x 3/8"
18
58442
2
CRIMPTITE, 1/4--20X 1/2"
19
46627
1
CAP, RADIATOR
20
52250
5 ft.
FOAM PAD - 3/4"
X
1" WIDE
21
50832
1
DRAIN COCK-V8 NPT
22
81976
1
HUB, FAN
23
51787
6
CAPSCREW, HEX HEAD - M4-0.7 x 16mm
24
22152
6
LOCK WASHER - M4
25
22473
11
FLAT WASHER-M6
26
29451
5 ft.
FOAM TAPE - 1/8"
X
1/2"
-
30
-
