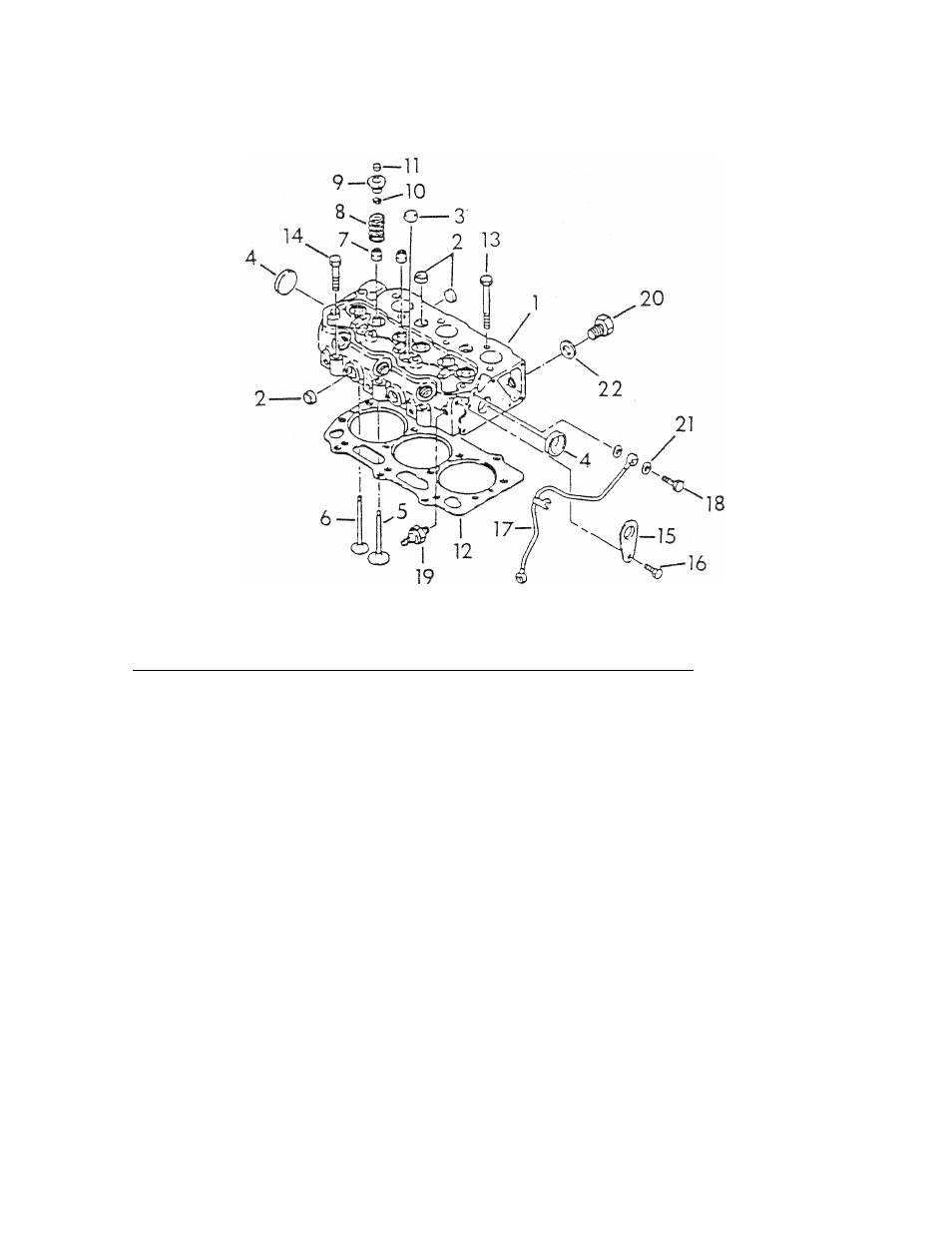

EXPLODED VIEW — CYLINDER HEAD
Drawing No. 75678
ITEM
PART NO.
QTY.
DESCRIPTION
1
147-70939
1
Cylinder Head Assembly
2
148-70939
6
Expansion Plug
3
447-70939
3
Expansion Plug
4
149-70939
2
Expansion Plug
5
150-70939
3
intake Valve
6
151-70939
3
Exhaust Valve
7
152-70939
3
Valve Guide Seal (Exhaust)
153-70939
3
Valve Guide Seal (Intake)
8
154-70939
6
Spring
9
155-70939
6
Retainer
10
156-70939
12
Key
11
157-70939
6
Cap
12
158-70939
1
Cylinder Head Gasket, 1.2mm thick
159-70939
1
Cylinder Head Gasekt, 1.3mm thick
13
160-70939
11
Bolt
14
161-70939
3
Bolt
15
162-70939
2
Lifting Eye
16
163-70939
2
Bolt
17
164-70939
1
Tubing
18
165-70939
2
Bolt
19
60108
1
Oil Switch
20
167-70939
1
Thermo-Switch
21
168-70939
4
Gasket
22
169-70939
1
Washer
