ELECTRICAL DATA

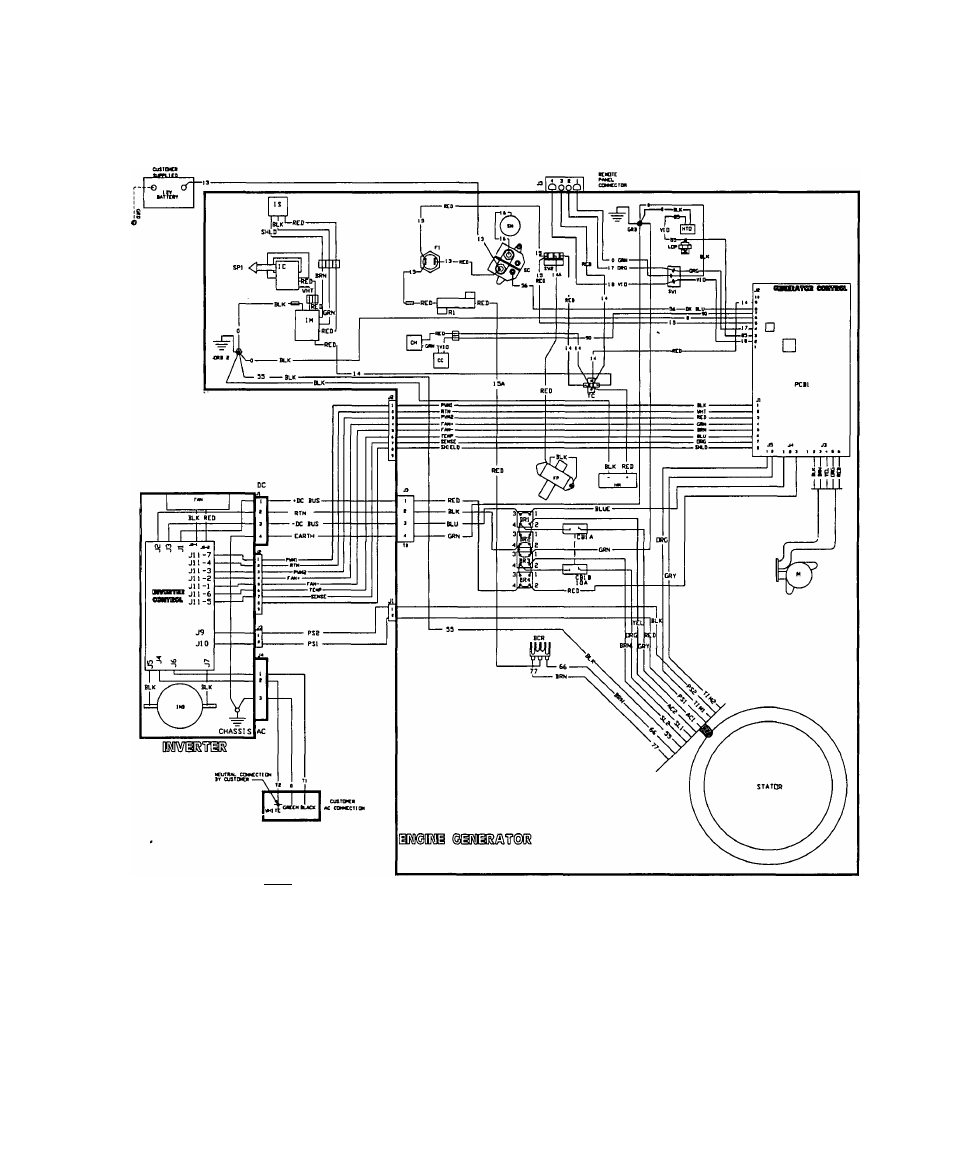

Drawing No. A6412 (Sheet 2 of 2)
LCCCND
BCR -
BATTERY CHARGE RECTI TIER
I
BRI -
BRIDGE RECTIFIER
I
BRS >
BRIDGE RECTIFIER
I
BR3 -
BRIDGE RECTIFIER
I
BR4 -
BRIDGE RECTIFIER
I
CBl -
CIRCUIT BREAKER. lOA. 2-POLE
CC -
CHOKE COIL
I
CH -
CHOKE HEATER
FI -
FUSE. ISA
FP -
FUEL PUMP DN GASOLINE
SHUT-DFF VALVE DN L/P
INV - INVERTER BOX
HM “ HOUR METER
HTD - SWITCH. HIGH TEMPERATURE OIL
(CLOSES ON HIGH TEMPERATURE) *
IC - IGNITION COIL
PCBl -
RI
-
SC -
IS, :
INDUCTOR ASSEMBLY
IGNITION MODULE
IGNITION SENSOR
LIGHT. RUN (OPTIONAL)
SWITCH. LOW OIL PRESSURE
(CLOSES 04 LOW PRESSURE)
STEPPER MOTOR THROTTLE CWTROL
C:ONTRX CIRCUIT BOARD
I □)«, 50 WATTS
STARTER CONTACTOR
STARTER MOTOR
SWITCH. START/STOP
SWITCH. FUEL PUMP PRIME
SPARK
plug
LUG. BARREL
TERMINAL. CONNECTOR 4 TAB
terminal
block
