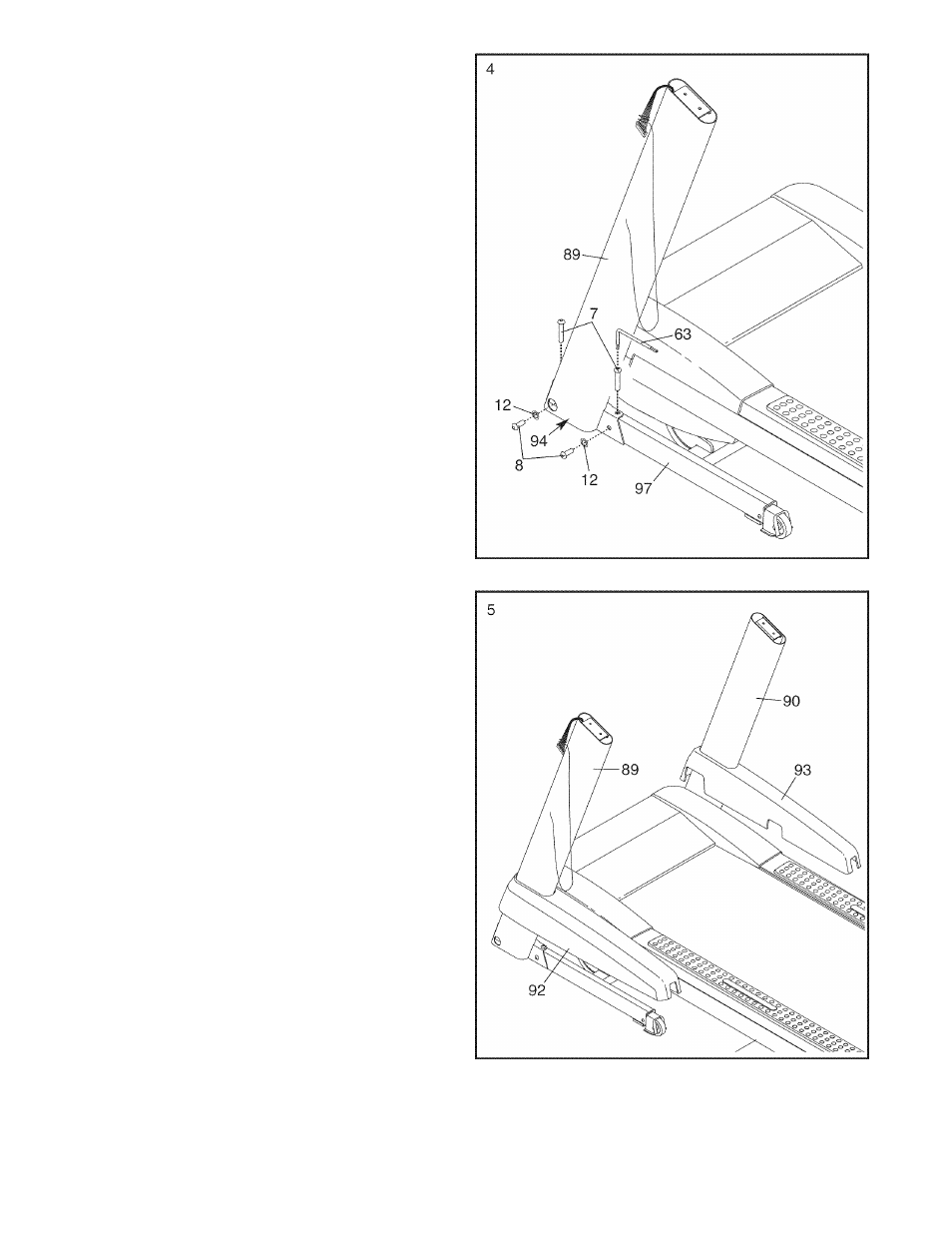

4. Hold the Left Upright (89) against the Base
(97). Be careful not to pinch the wires. If nec
essary, position the Base Ground Wire (94) in
the hole in the side of the Left Upright. Insert
two 3/8"
X
2 3/4" Bolts (7) and two 3/8" x 1 1/4"
Bolts (8) with two 3/8" Star Washers (12) into
the Left Upright.
Partially tighten the 3/8" x 2 3/4" Bolts (7) and
the 3/8"
X
1 1/4" Bolts (8) until the heads of the
Bolts touch the Left Upright (89); do not fully
tighten the Bolts yet. Note: It may be helpful to
use the Short Hex Key (63) on the Bolt shown.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the
right side.
5. Identify the Left Base Cover (92) and the Right
Base Cover (93). Slide the Left Base Cover onto
the Left Upright (89). Slide the Right Base Cover
onto the Right Upright (90). Do not press the
Base Covers into piace yet.
