Hex Bolt (A)
Belleville
Washer (B)
4.
5.
Slide the slotted end of the handles under the
belleville washers on the self-tapping screws
which were loosened in step 3.
Secure the upper hole in the handles with
belleville washers (B) (cupped side against the
■handles) and hex bolts (A). See figure 4. Do not
tighten at this time.

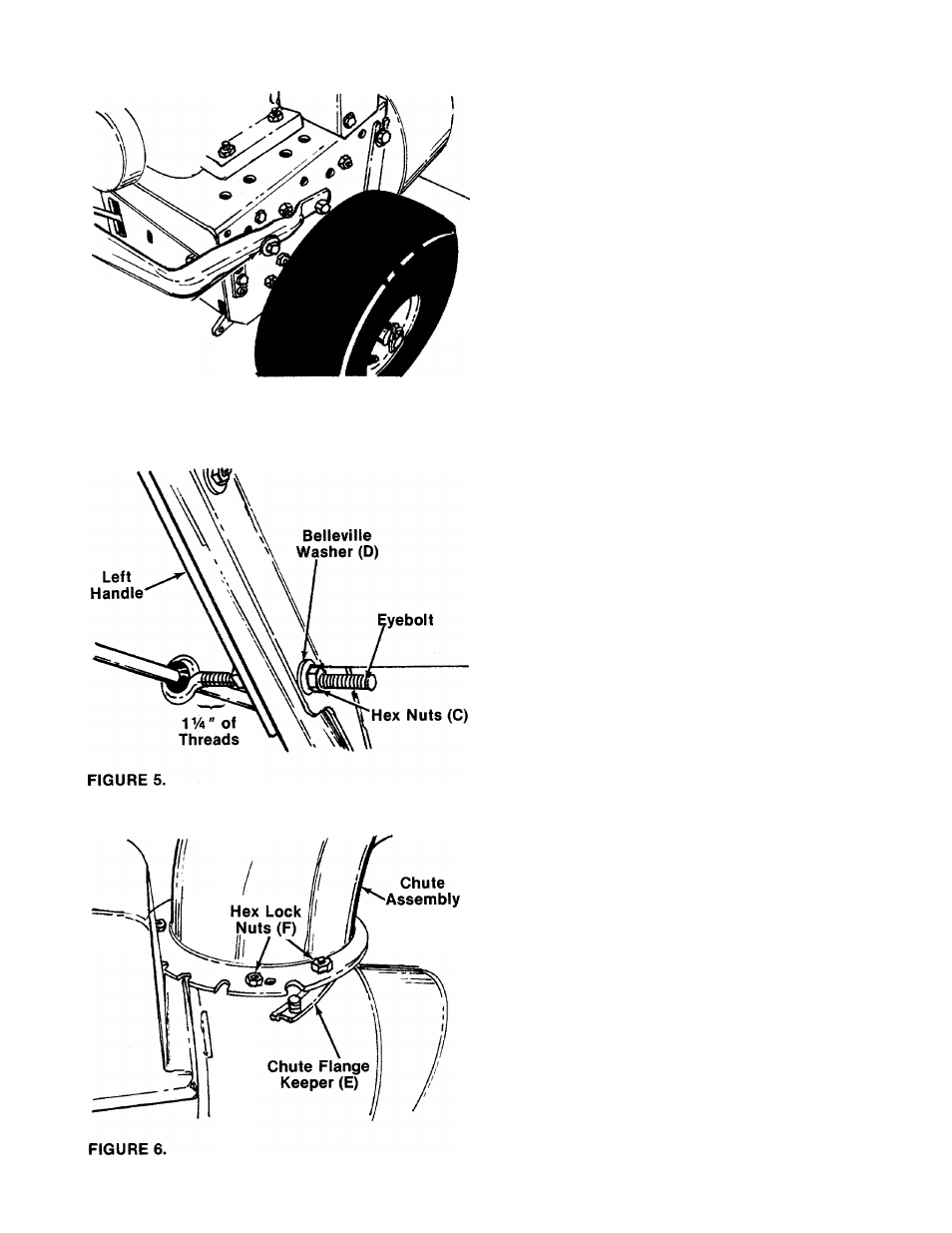

FIGURE 4.
7.
6. Thread one hex nut (C) onto the eyebolt on the
chute crank assembly until there is approx­
imately VA" of threads showing between the
— nut and the head of the eyebolt. See figure 5.
Place the eyebolt into the hole in the left han­
dle and handle panel. See figure 5. Secure
with belleville washer (D) (cupped side against
the handle panel) and hex nut (C). Tighten
securely.
Tighten securely all bolts and nuts on the han­
dle panel and all four bolts which secure the
handles to the frame.
8
9.
10
.
Grease the chute opening.
Place chute assembly over chute opening,
with the chute facing the front of the unit.
Place chute flange keepers (E) beneath lip of
chute assembly. Secure with hex lock nuts (F)
as shown in figure 6. Tighten with a 7/16"
wrench, then back off V4 turn to allow easier
movement.
